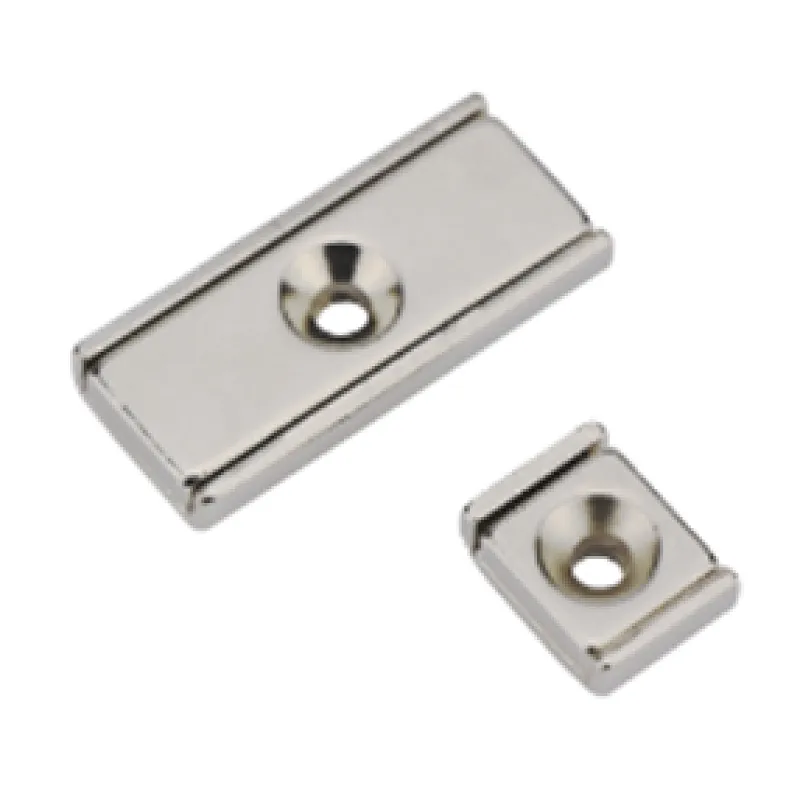

Rectangular pot magnet also names channel magnets,neodymium channel magnets which consists a rectangular steel plate and rare earth magnets.It has a fixing countersunk hole through in the centre to allow to be screwed onto an assembly which are used in warehouse,home,factory etc.
More products please find onchannel magnets
Features
1.Coating: Zn,Ni
2.Holding force:4-16KG
3.Magnet materials : ceramic
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai
| Model | L | I | W | H | d (mm) | d1 (mm) | Weight (g) | Vertical Breakaway (kg) |
| (mm) | (mm) | (mm) | (mm) | |||||
| SWNI10 | 10 | 5 | 13.5 | 5 | 3.3 | 6.5 | 5 | 4 |
| SWNI15 | 15 | 7.5 | 13.5 | 5 | 3.3 | 6.5 | 7 | 7 |
| SWNI20 | 20 | 10 | 13.5 | 5 | 3.3 | 6.5 | 10 | 8 |
| SWNI30 | 30 | 15 | 13.5 | 5 | 3.3 | 6.5 | 15 | 16 |
