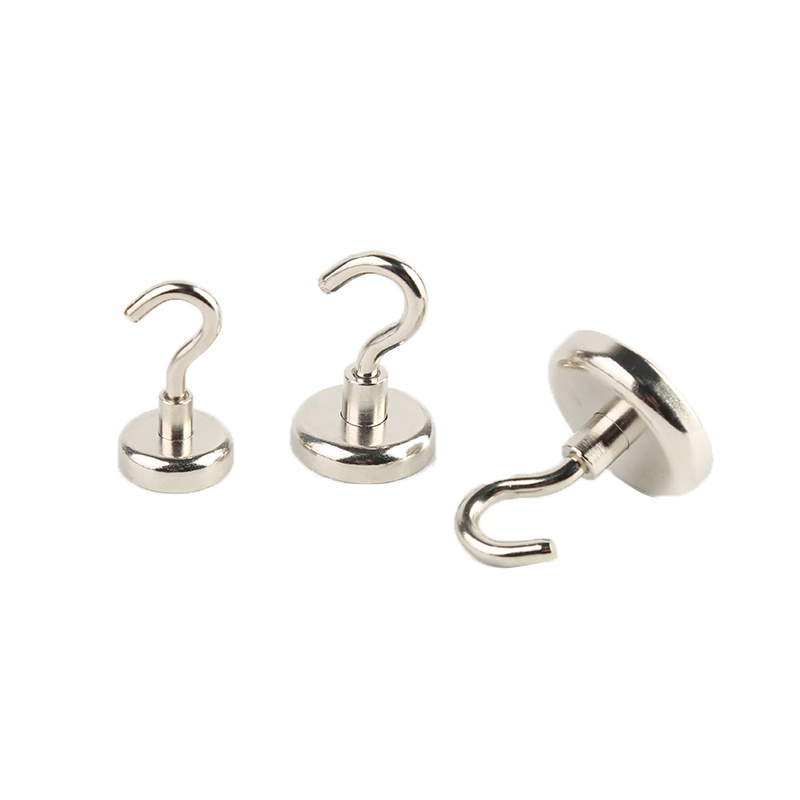

Neodymium Hook Magnets also name Neodymium Magnetic Hooks which are consist of Neodymium magnet,
metal cup with female thread hole and one threaded hook.They can provice amazing magnetic force for their
small size.the steel cup can creates a strong vertical magetic pull force when they attrack on a flat iron surface.
More Products please find on magnetic hook
Feature
1.Coating: Zn,Ni,Cr,Painting
2.Holding force:2-300KG base on different item no;
3.Magnet materials : NdFeb
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

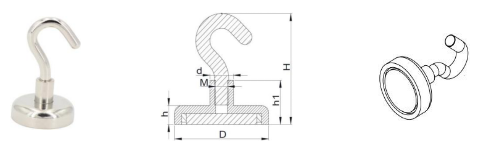

Neodymium Hook Magnets
| Model | M | Magnetic force(KG) | ||||||
| D | d | h | h1 | H | Weight | |||
| (mm) | (mm) | (mm) | (mm) | (mm) | (g) | |||
| SWNE10 | 10 | 6 | 5 | 12.5 | 33 | M3 | 6 | 2 |
| SWNE12 | 12 | 6 | 5 | 12.5 | 33 | M3 | 7 | 4 |
| SWNE16 | 16 | 6.5 | 5 | 12.6 | 35 | M4 | 12 | 8 |
| SWNE20 | 20 | 6.5 | 7 | 14 | 36 | M4 | 21 | 12 |
| SWNE25 | 25 | 7.5 | 8 | 17 | 45 | M5 | 37 | 25 |
| SWNE32 | 32 | 10 | 8 | 18 | 48 | M6 | 61 | 34 |
| SWNE36 | 36 | 10 | 8 | 18 | 48 | M6 | 69 | 50 |
| SWNE42 | 42 | 10 | 8.6 | 18 | 48 | M6 | 101 | 72 |
| SWNE48 | 48 | 12 | 11 | 24 | 61 | M8 | 182 | 81 |
| SWNE55 | 55 | 12 | 12 | 28 | 64.5 | M8 | 252 | 95 |
| SWNE60 | 60 | 12 | 15 | 28 | 64.5 | M8 | 362 | 160 |
| SWNE70 | 70 | 17 | 17 | 34 | 80 | M10 | 566 | 200 |
| SWNE75 | 75 | 17 | 18 | 35 | 81 | M10 | 681 | 270 |
| SWNE80 | 80 | 17 | 18 | 35 | 81 | M10 | 761 | 300 |
Send Message
Related Products
Model NO. SWNA
Model NO. SWNB
Model NO. SWNC
Model NO. SWND
Model NO. SWNF
Model NO. D12.7*6.35
Model NO. SWNP-4
Model NO. LNM
Model NO. SWBM
Model NO. SWNM
Model NO. SWSE
Model NO. SWTG
Model NO. SWNI40-120
Model NO. SWNI
Model NO. STP
Model NO. STC
Model NO. STB Series
Model NO. SWFK 30
Model NO. SWNK
Model NO. SWFK 36 Series
Model NO. SWFG
Model NO. SWNL
Model NO. SWNG Series
Model NO. STA

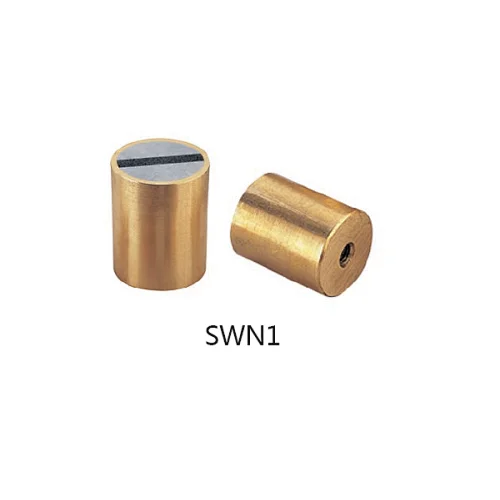

Model NO. SWN1

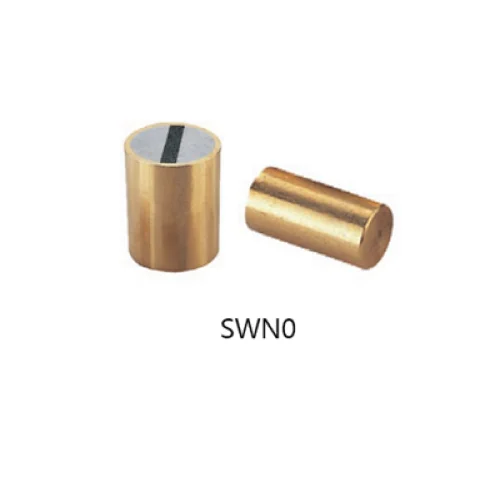

Model NO. SWN0
