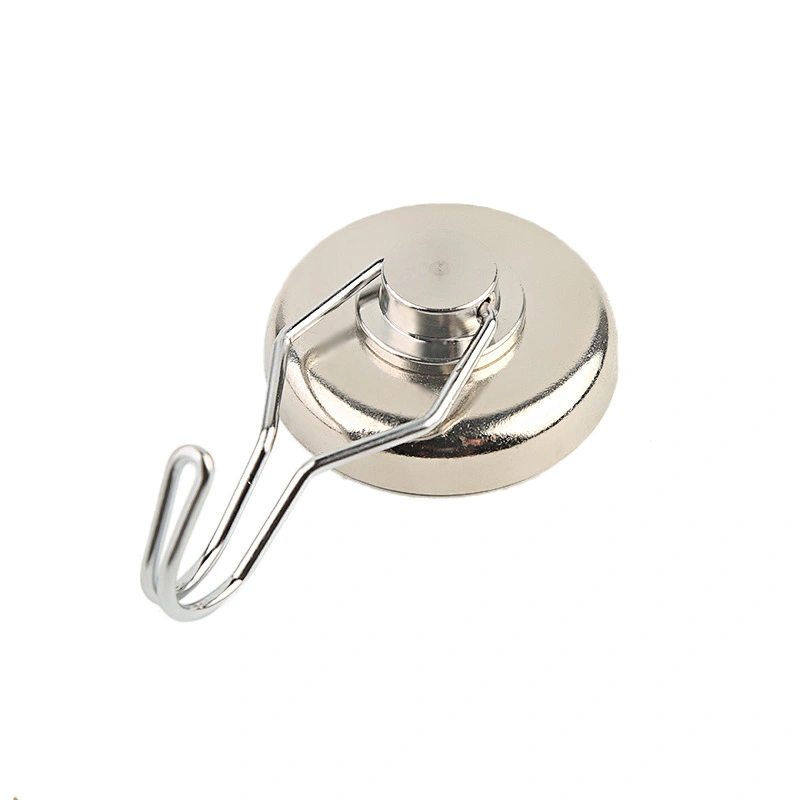

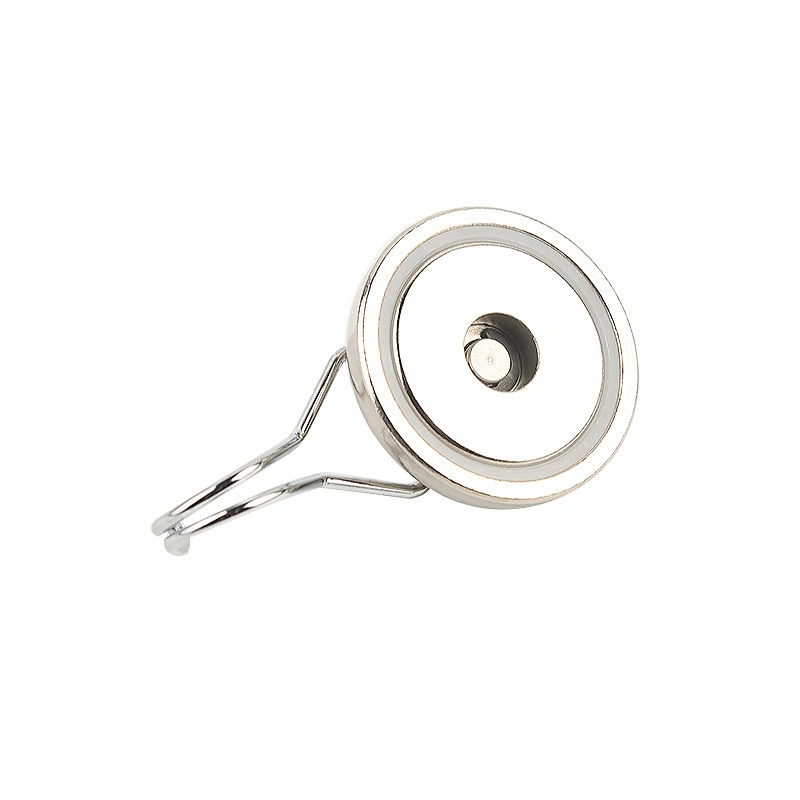

Base on different application , Swivel magnetic hooks also are called Magnetic Key hooks,magnetic wall hooks. Swivel magnetic
which consists of a steel case ,a swivel hook and supper strong NdFeB permanent magnets.A swivel hook built
on the top of round base which could be rotated 360 degrees clockwise or counterclockwise

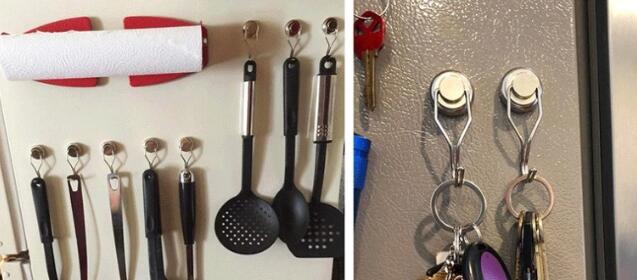

Swivel magnetic hooks are widely used as a ceiling hook and a wall hook to hold objects like keys,
towls,etc.
More Products please find on Swivel magnetic hooks
Features
1. Coating:NiCuNi/Electroplating/ZN/Painting
2. Material: NdFeB/ Ferrite
3. Custom made service is available
4.Production time:40 Days
5.MOQ: 50pc
6.Packing: standard brown carton/wood case for air or sea shipment
7.Process: Half finished block of Sintered Neodymiun magnets > > Grinding > Cutting >
Coating > Checking > assemblying >Packing
8.Payment term: T/T
9.Loading Port:Ning Bo/Shang Hai

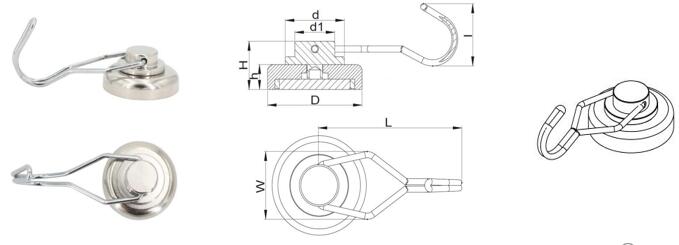

| Model | D | d (mm) | d1 (mm) | h (mm) | H | L | W | I | Weight (g) | Vertical Breakaway (Kg) | Side Breakaway (kg) |
| (mm) | (mm) | (mm) | (mm) | (mm) | |||||||
| SWNG25 | 25 | 20 | 13.5 | 8 | 15.5 | 53.5 | 23 | 24 | 38 | 17 | 3.5 |
| SWNG32 | 32 | 20 | 13.5 | 8 | 15.5 | 53.5 | 23 | 24 | 52 | 30 | 5.5 |
| SWNG36 | 36 | 20 | 13.5 | 8 | 15.5 | 53.5 | 23 | 24 | 65 | 40 | 6.5 |
| SWNG42 | 42 | 20 | 13.5 | 8.6 | 16.1 | 53.5 | 23 | 24 | 92 | 60 | 8 |
