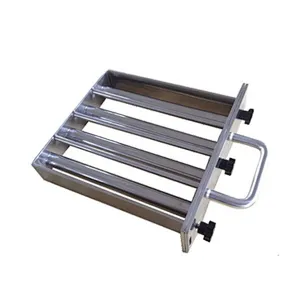

Grate magnets are used to remove ferrous metals from various materials in different fields. Its magnetic strength can up to 14500Gs if need. Square, round grate magnet with standard size are available for different applications. Easy cleaning style and custom-made service are also available. The new factory works now, whose area is 21300m2, aim to become the biggest production base of the magnetic tube, grate magnet and magnetic filter in the world.whose head company was listed in stock market in China. it is first company of grate magnets system that listed in stock market all over the world.

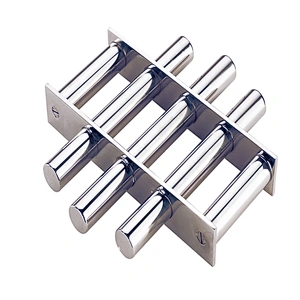

Food Grade Magnetic Grate with Full Welding and Well Polishing. Grate magnet is a specially made product that is used in the removal process of small-sized to medium ferrous tramp metal impurities from those dry and free-flowing products presented in vertical chutes, housings, and catch bins. It is the best and economical solution for the magnetic protection of equipment like extruding, milling, and mixing. It enhances the purity of the product as well. Grate magnet are also known as magnetic grate separators. It is used in the ferrous separation in bins, hoppers, and those circular enclosures. It comes in two variants like ceramic as well as rare earth grate magnets. These are made with one-inch diameter magnetic tube and fixed in two-inch of centers in a frame for better built. The length and width of these grates can be fabricated to any dimensions as per requirement.
1.Tube Material:SS304 or SS316L ;
2.Surface treatment: Sand blasting,well polishing,teflon coating or abrasion resistance solution available ;
3.Magnetic intensity :1500-14500GS;
4.Max working temparature: from 80℃ to 450℃;
5.Manual cleaing ,self cleaning are available ;
6.Magnet materials : Samarium-Cobalt (rare-earth), Ceramic , Neodymium-Iron-Boron(rare-earth);
7.Food grade welding and well polishing: available;
7.Custom made :available.your logo/brand/pattern can be printed on ;
10.Packing:ctsn or wood case for big size;
11.Payment term: T/T;
