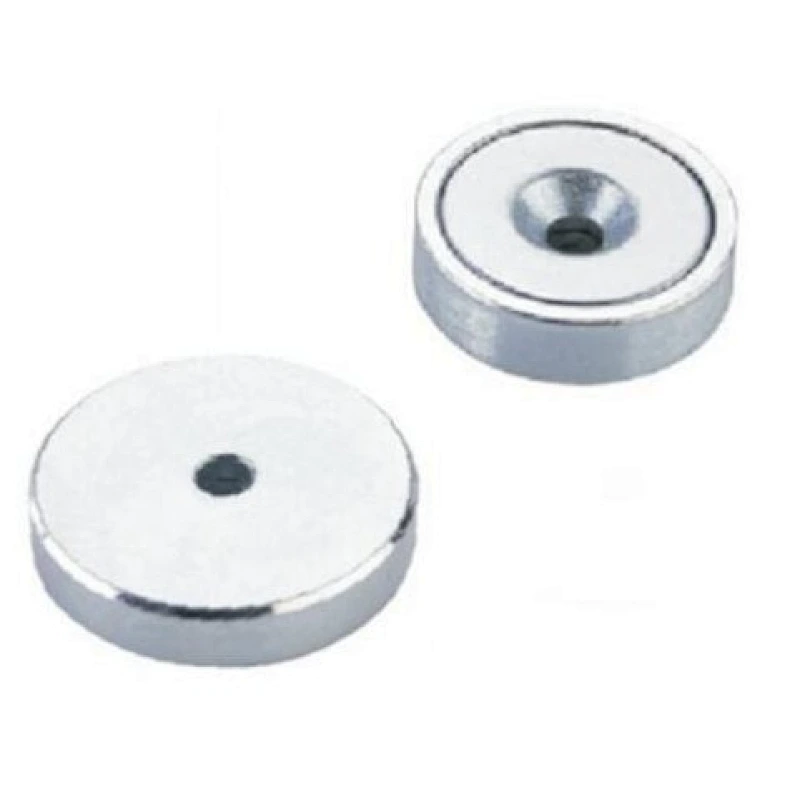

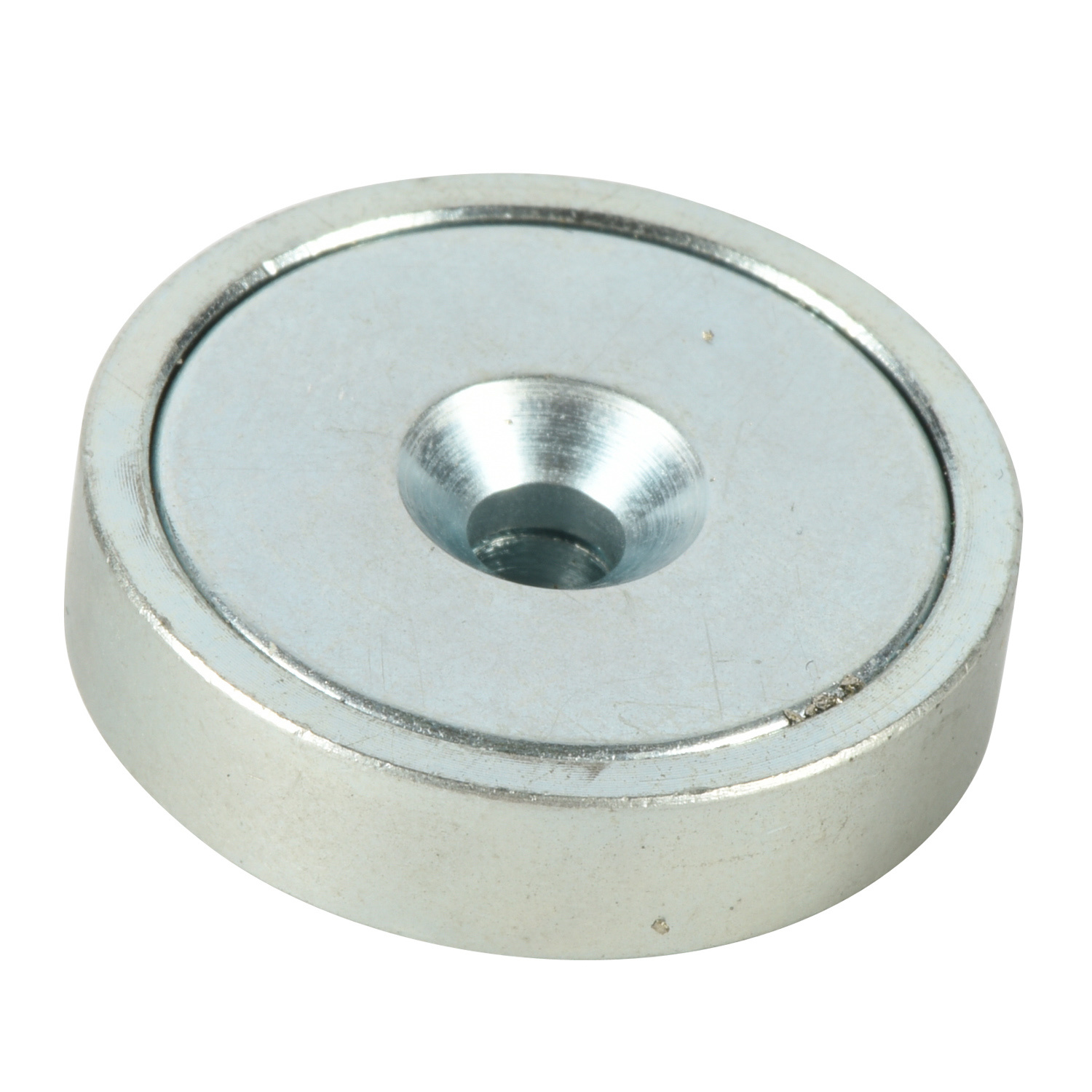

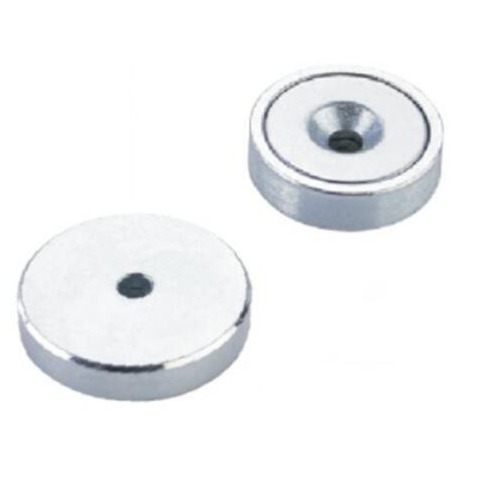

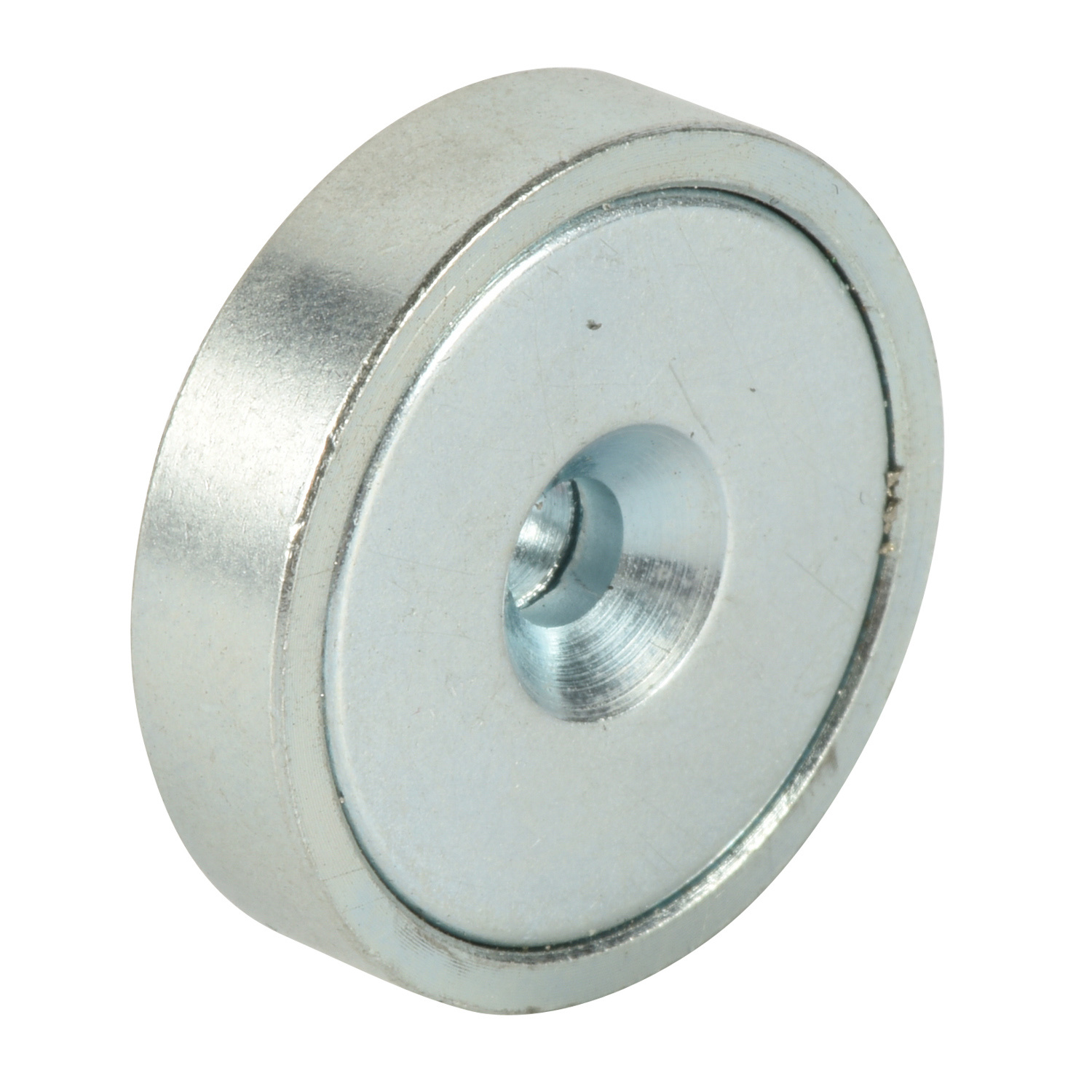

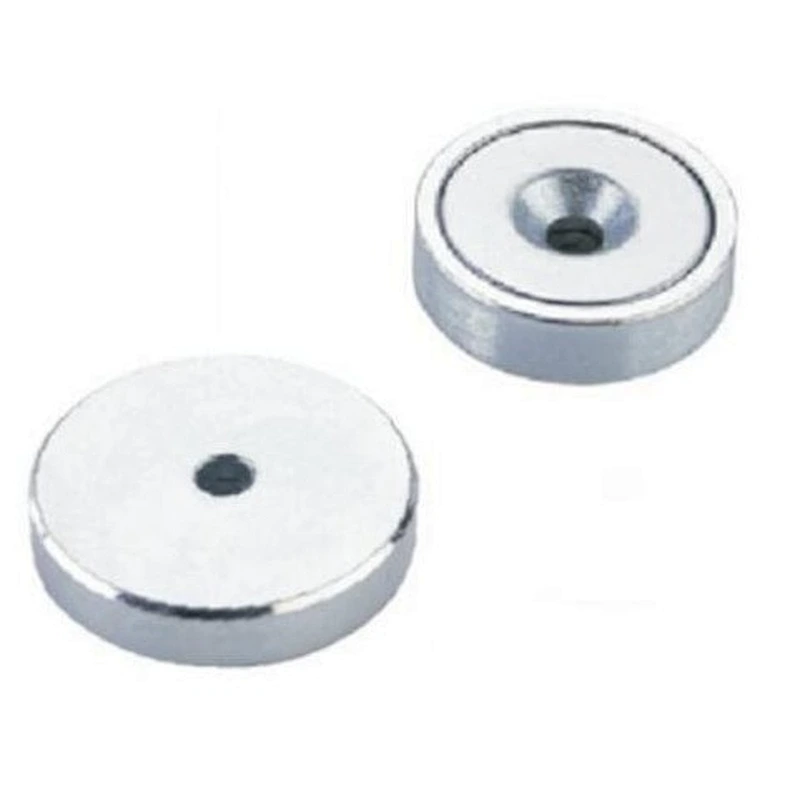

Neodymium Round Base Magnet with Countersunk Head

Model NO.: SWN6

Product Description
Application Description

Round Base Magnet with Countersunk Head also names Countersunk pot magnet, Countersunk holder
magnet, Countersunk cup magnets that consists of a steel casing and rare earth magnet .They have a feature
of a countersunk hole in the center of the magnet which is easy for a blot to screw through .Countersunk pot magnet
are ideal for mechanical manufacturing and construction to complete the fixing or installation.

Feature

1.Coating: Zn,Ni,Cr,Painting
2.Holding force:5-500N
3.Materials : NdFeb magnets
4.Custom made service :available
5.Sample : available
6.MOQ:50PC
7.Lead Time: about 5weeks (depend on the quantity);
8.Packing: Packed by carton or wood case for standard sea shipment or
standard shielding packing for air shipment;
9. Delivery Port: Ningbo or Shanghai

**Neodymium Round base magnet**
MODEL NO	Dimensions(mm)				Weight(g)	Force(N)
MODEL NO	D	H	d1	d2	Weight(g)	Force(N)
SWN6-16	16	4.5	3.5	6.6	5.7	75
SWN6-20	20	6	4.5	9	12.5	105
SWN6-25	25	7	4.5	9	25	160
SWN6-32	32	7	5.5	11	38.5	310

Neodymium Round Base Magnets are used for mounting, lifting, holding, fixing and transferring objects in the field of construction, engineering, automotive, etc or in the place of office, family, warehouse,metalworking plants , mechanical engineering plants etc.
