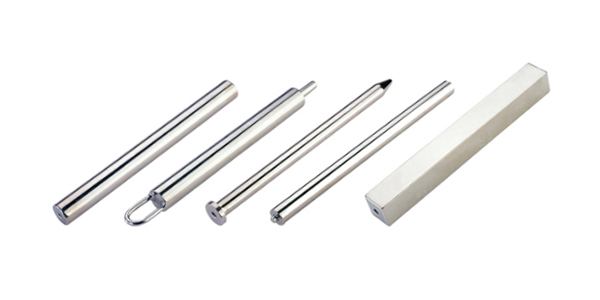

Magnetic Tube aslo named magnetic filter bar,Magnetic bar,magnetic rod,magnetic tube separator are made from the strong NdFeB or SmCo, Ferrite Magnets stainless steel tubes by fully or non-fully welding whicn can remove ferrous metals from various materials in different field. Accroding to different condition, they can be assembled into grate magnets, magnetic drawer Or magnetic trap with other stainless steel parts. Tube magnets with round and square shape are available .

Replace individual rods in an existing filter or create a custom filter. Super Power NdFeB Magnets are sealed in the stainless tube by fully welding. SmCo magnets also available for high working temperture more than 250 celsius degree.

Rods with a maximum magnetic pull of 1 lb or magnetic force  about  2500Gs. they can catch nails, bolts, washers, staples, and other large iron metal objects.

Rods with a maximum magnetic pull of 11.2 lbs or magnetic force about  8000-14000Gs . they  catch metal filing, shaving, residue from metal wear, and other small particles.

 1.Tube Material:SS304 or SS316L;
2.Surface treatment: sand blasting , polishing , telfon coating  or  abrasion resistance solution available;
3.Magnetic intensity :1500-14500GS;
4.Max working temparature: from 80℃ to 450℃;
5.Manual cleaing ,self cleaning are available ;
6.Magnet materials : Samarium-Cobalt (rare-earth),  Ceramic , Neodymium-Iron-Boron(rare-earth);
7.Food grade welding and well polishing: available;
7.Custom made :available.your logo/brand/pattern can be printed on ;
8.MOQ:1PC;
9.Lead time:30days;
10.Packing： carton for small size or wood case for big size ;
11.Payment term: T/T;
12.Loading Port:Ningbo/Shanghai;
