neodymium pot magnet with external thread manufacturer

Neodymium pot magnet with threaded pin

Model NO.: SWNC
Minimum order quantity:: 1

Product Description
Application Description

Neodymium holder magnet with external thread

Neodymium pot Magnet with theaded also names Neodymium pot Magnet with male thread
or NdFeB pot Magnet with external threaded stud is good for attaching components with
female thread. A male threaded stand on the no-magnetic face of pot magnets, can be
fixed on flat surface by female thread, then attrach the ferromagnetic object at the magnetic side.

More Products please find on pot magnet with threaded pin

Feature

1.Coating: Zn,Ni,Cr,Painting

2.Holding force:2-480KG
3.Magnet materials : NdFeb
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

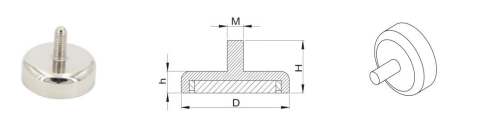

Neodymium pot Magnet with theaded pin

Model				M
	D	H	H		Weight	Magnetic force
	(mm)	(mm)	(mm)		(g)	(kg)
SWNC10	10	14	5	M3	4	2
SWNC12	12	14	5	M3	5	4
SWNC16	16	13.2	5	M4	8	8
SWNC20	20	16	7	M4	17	12
SWNC25	25	17	8	M5	30	25
SWNC32	32	18	8	M6	50	34
SWNC36	36	18	8	M6	62	50
SWNC42	42	18	8.6	M6	89	72
SWNC48	48	24	11	M8	152	81
SWNC55	55	28	12	M8	220	95
SWNC60	60	28	15	M8	325	160
SWNC70	70	34	17	M10	510	200
SWNC75	75	35	18	M10	620	250
SWNC80	80	35	18	M10	700	300
SWNC90	90	35	18	M10	885	360
SWNC120	120	40	18	M12	1570	480

Neodymium pot Magnet with internal thread are used for mounting, lifting, holding, fixing and transferring objects in the field of construction, engineering, automotive, etc or in the place of office, family, warehouse,metalworking plants , mechanical engineering plants etc.
