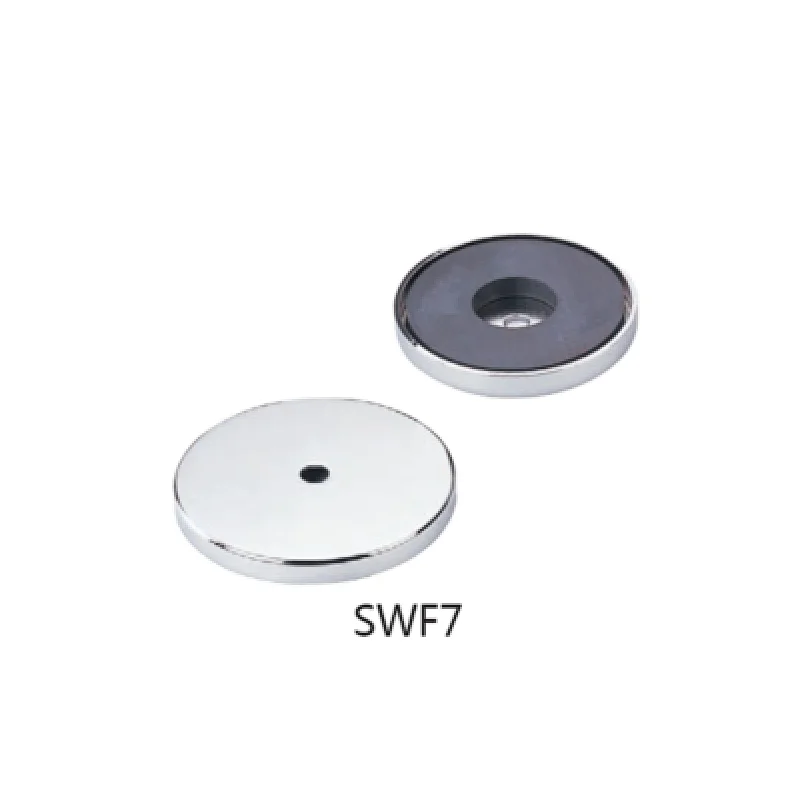

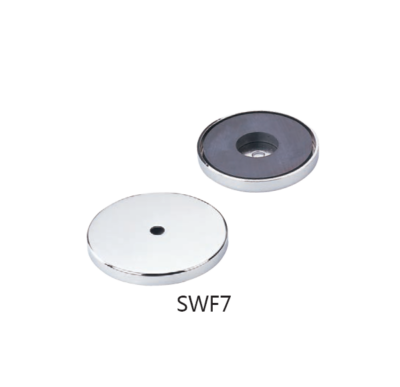

Ceramic Shallow Cup Magnet

Model NO.: SWF7
Minimum order quantity:: 1

Product Description
Application Description

Ceramic Shallow Cup Magnets are also named ceramic mounting magnets ,ceramic cup magnet,ferrite pot magnet
with mounting hole which consists of a steel case and cemaic magnets.They feature a magnet with a hole
through that encased in a steel cup which prevent the magnet from breaking and enhance the magnetic force .
Ceramic Shallow Cup Magnets are used for mounting, holding,fixing and transferring objects in the field of
construction,engineering,automotive,etc or in the place of office,family, warehouse,metalworking plants ,
mechanical engineering plants etc.
More Products please find on Ceramic Shallow Cup Magnet

Features

1.Coating option: Zn,Ni,Cr,Painting
2.Holding force:13-800N
3.Magnet materials : ceramic/ferrite magnets
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:40ays
8.Packing:standard brown carton/wood case for sea shipment
or air shielding shipment
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

Ceramic Shallow Cup Magnets data sheet

MODEL NO	Dimensions(mm)			Weight(g)	Force(N)
	D	H	d1
SWF7-20	30.73	4.83	3.3	18	13
SWF7-40	36.32	6.86	4.83	35	53
SWF7-50	51.82	7.62	4.83	68	110
SWF7-60	60.71	8.89	6.86	110	180
SWF7-70	68.07	9.65	7.11	159	290
SWF7-75	71.37	9.4	6.86	175	300
SWF7-80	81.28	10.67	7.11	237	425
SWF7-85	98.39	12.95	9.65	404	490
SWF7-90	123.95	12.45	12.7	557	800

Ceramic Shallow Cup Magnets are used for mounting, holding,fixing and objects in the field of
construction,engineering,automotive,etc or in the place of office,family, warehouse,metalworking plants ,
mechanical engineering plants etc.
