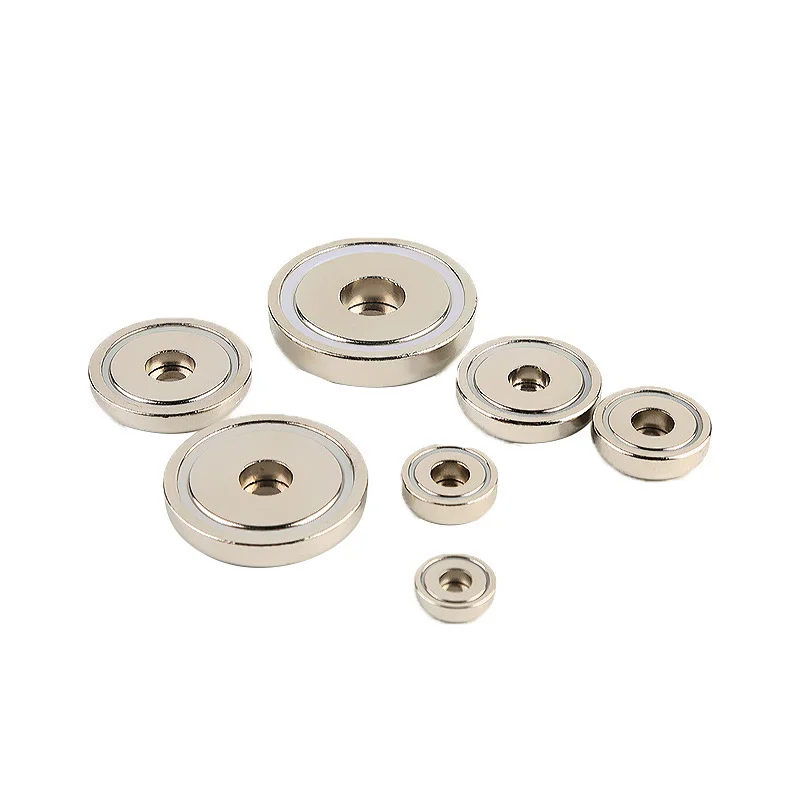

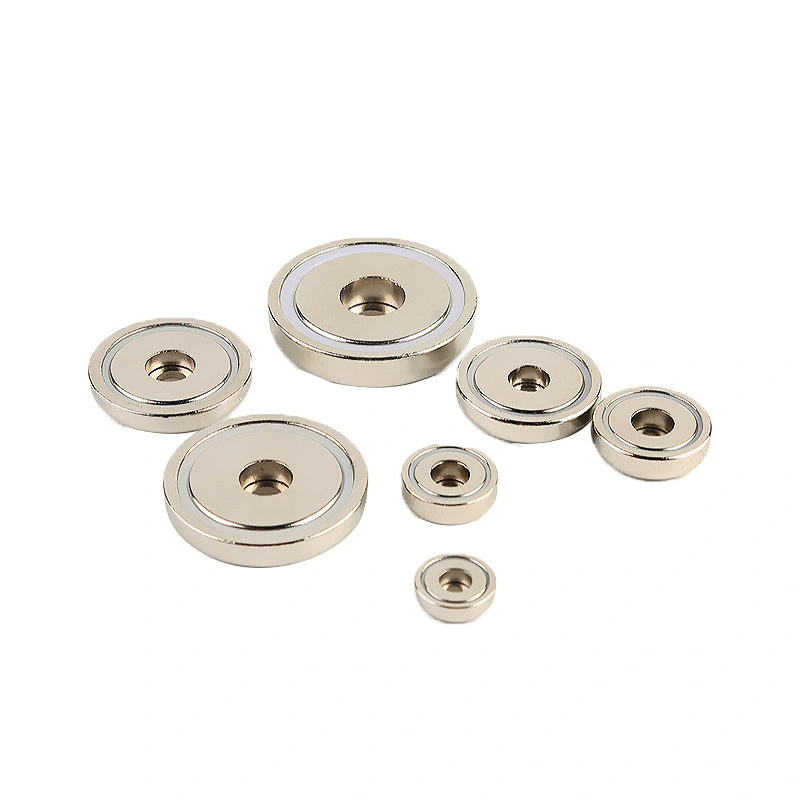

Neodymium Mounting Magnet are also named Neodymium Mounting magnets or Neodymium Cup Magnets ,
because magnets with a hole are encased in a steel cup which helps protect the magnet from impact as
well as enhances its magnetic force as well as provide strong magnetic force and durability. Neodymium
Mounting magnets are oftern used as magnetic holders for large supermarkey ceiling signs.
More Products please find on Neodymium Mounting Magnet
Feature
1.Coating: Zn,Ni,Cr,Painting
2.Holding force:39-1519N
3.Magnet materials : NdFeb
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

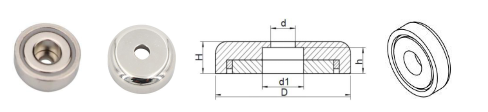

Neodymium Mounting magnets
| Model | Weight (g) | Magnetic force (kg) | ||||
| D | d | d1 | H | |||
| (mm) | (mm) | (mm) | (mm) | |||
| SWNB12 | 12 | 3.5 | 6.5 | 4.5 | 4 | 2 |
| SWNB16 | 16 | 3.5 | 6.5 | 5 | 7 | 5 |
| SWNB20 | 20 | 4.5 | 8 | 7 | 13 | 10 |
| SWNB25 | 25 | 5.5 | 9 | 8 | 19 | 20 |
| SWNB32 | 32 | 5.5 | 9 | 8 | 38 | 30 |
| SWNB36 | 36 | 6.5 | 11 | 8 | 48 | 40 |
| SWNB42 | 42 | 6.5 | 11 | 8.6 | 70 | 60 |
| SWNB48 | 48 | 8.5 | 15 | 11 | 115 | 70 |
| SWNB55 | 55 | 8.5 | 15 | 12 | 190 | 90 |
| SWNB60 | 60 | 8.5 | 15 | 15 | 240 | 150 |
| SWNB70 | 70 | 10.5 | 18 | 17 | 430 | 180 |
| SWNB75 | 75 | 10.5 | 18 | 18 | 515 | 220 |
| SWNB80 | 80 | 10.5 | 18 | 18 | 641 | 240 |
| SWNB90 | 90 | 10.5 | 18 | 18 | 800 | 310 |
| SWNB120 | 120 | 12.5 | 25 | 18 | 1380 | 420 |
