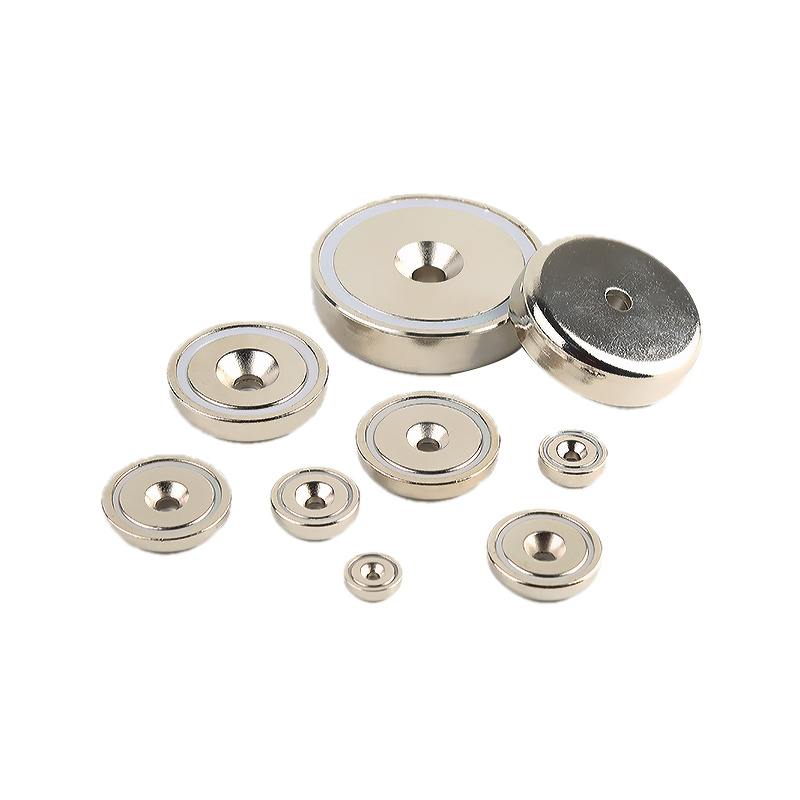

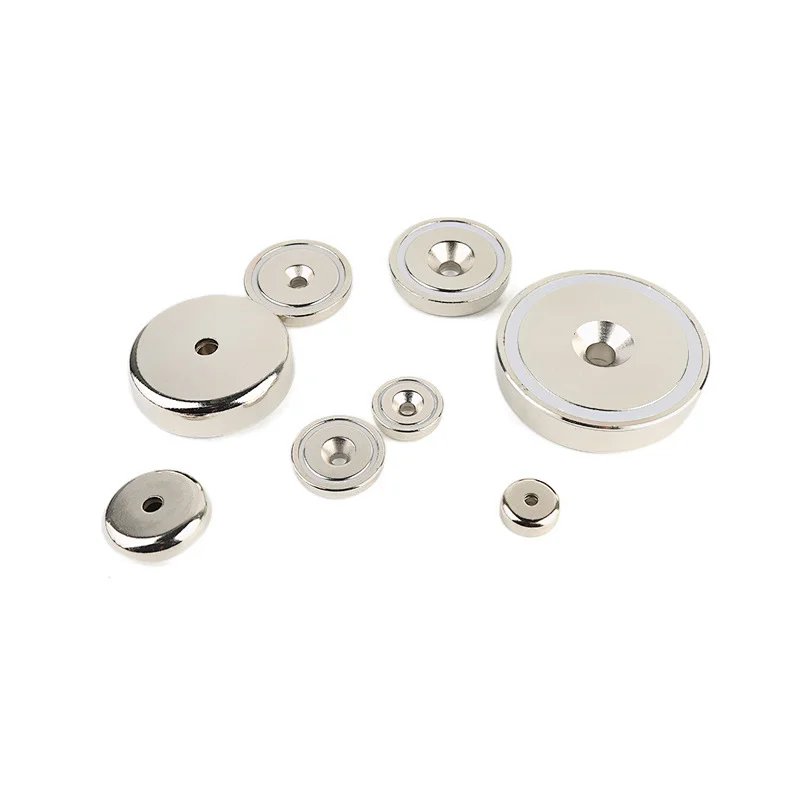

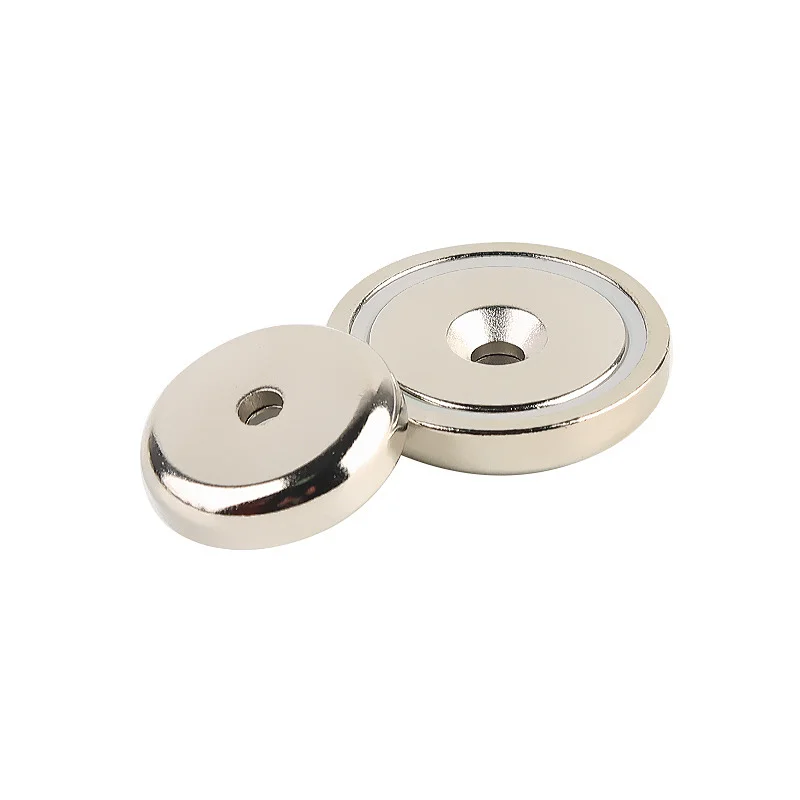

Neodymium Countersunk Pot Magnet also names Countersunk pot magnet, Countersunk holder
magnet, Countersunk cup magnets that consists of a steel casing and rare earth magnet .They have a feature
of a countersunk hole in the center of the magnet which is easy for a blot to screw through .Countersunk pot magnet
are ideal for mechanical manufacturing and construction to complete the fixing or installation.
More Products please find on neodymium magnet with countersunk hole
magnet, Countersunk cup magnets that consists of a steel casing and rare earth magnet .They have a feature
of a countersunk hole in the center of the magnet which is easy for a blot to screw through .Countersunk pot magnet
are ideal for mechanical manufacturing and construction to complete the fixing or installation.
More Products please find on neodymium magnet with countersunk hole
Features
1. Countersunk Pot Magnet's structure is properly designed with maximized magnetic force.
2. Countersunk Pot Magne can be made from NdFeB, SmCo, ALNICO, Ferrite, etc.
3. Coating option:Zn, Ni, Cr, Painting, Rubber cover, etc.
4. Custom made is available for other special requests.
5.Production time:30 Days(According to Quantity)
6.MOQ: 10pc
7.Packing: Standard packing for air or sea shipment according to requirement.
8.Process: Half finished block of Sintered Neodymiun magnets > > Grinding >
Cutting >latching >Coating > Checking > assemblying >Packing

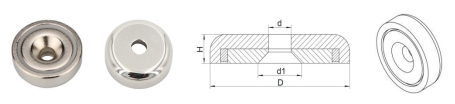

Neodymium Countersunk Pot Magnet
| Model | D (mm) | d (mm) | d1 (mm) | H (mm) | Weight (g) | Magnetic strength (kg) |
| SWNA12 | 12 | 3.5 | 6.5 | 4.5 | 4 | 2.5 |
| SWNA16 | 16 | 3.5 | 6.5 | 5 | 7 | 6 |
| SWNA20 | 20 | 4.5 | 8.6 | 7 | 14 | 11 |
| SWNA25 | 25 | 5.5 | 10.6 | 8 | 25 | 22 |
| SWNA32 | 32 | 5.5 | 10.6 | 8 | 42 | 32 |
| SWNA36 | 36 | 6.5 | 11.3 | 8 | 54 | 43 |
| SWNA42 | 42 | 6.5 | 11.3 | 8.6 | 78 | 65 |
| SWNA48 | 48 | 8.5 | 15.5 | 11 | 138 | 75 |
| SWNA55 | 55 | 8.5 | 14.5 | 12 | 205 | 95 |
| SWNA60 | 60 | 8.5 | 14.5 | 15 | 305 | 160 |
| SWNA70 | 70 | 10.5 | 16.5 | 17 | 485 | 210 |
| SWNA75 | 75 | 10.5 | 16.5 | 18 | 560 | 250 |
| SWNA80 | 80 | 10.5 | 16.5 | 18 | 668 | 300 |
| SWNA90 | 90 | 10.5 | 16.5 | 18 | 850 | 380 |
| SWNA120 | 120 | 12.5 | 22.5 | 18 | 1520 | 480 |
