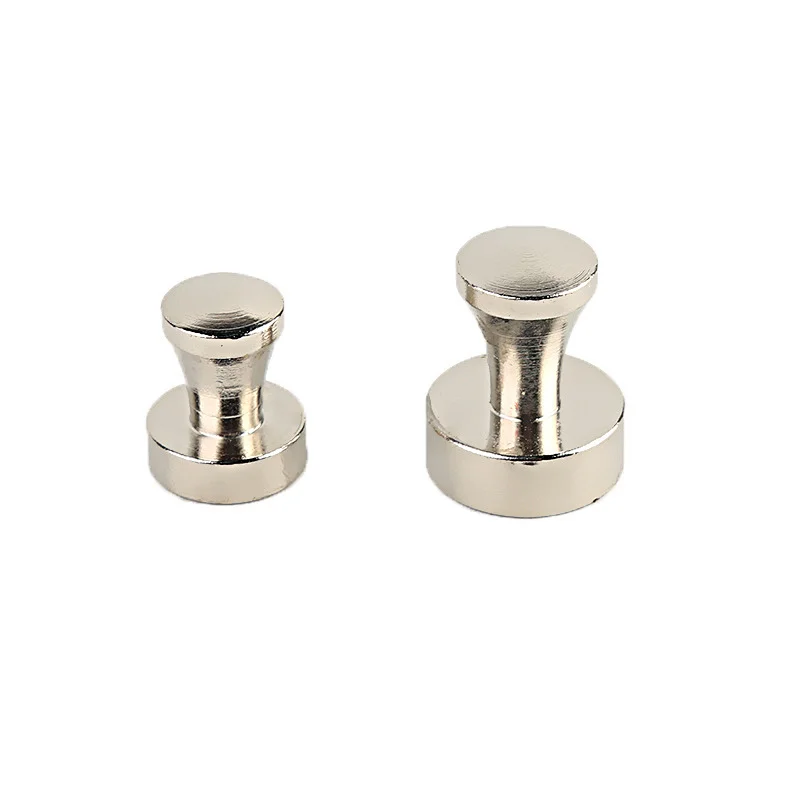

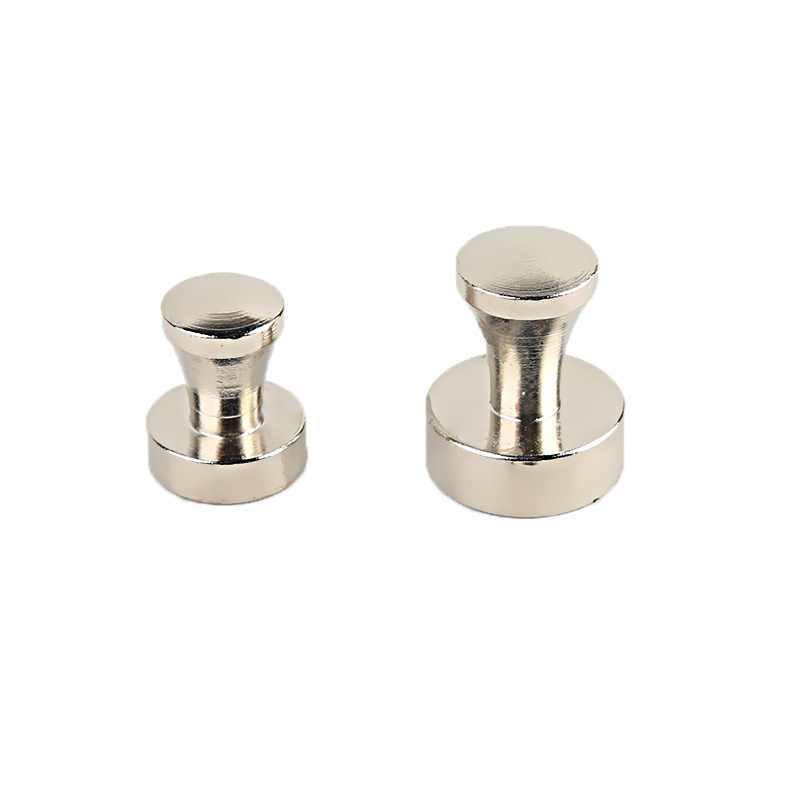

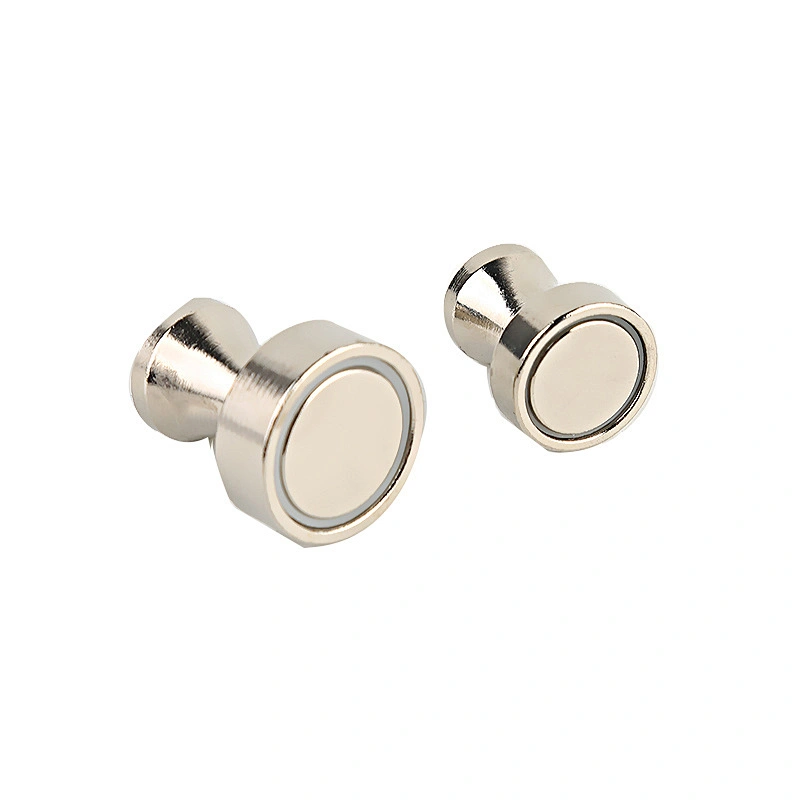

Push Pin Neodymium Magnet also names pin magnet, magnetic push pin,push pin magnets,
office pot magnet which consist of a steel casing and rare earth magnets.They feature as strong
&stable holding force which are widely used in homes, offices, classrooms warehousse,etc to hold
papaer,documents or some other small obejcts on the board. A coating protection is necessary
due to the neodymium disc magnets are poor in corrosion resistance
office pot magnet which consist of a steel casing and rare earth magnets.They feature as strong
&stable holding force which are widely used in homes, offices, classrooms warehousse,etc to hold
papaer,documents or some other small obejcts on the board. A coating protection is necessary
due to the neodymium disc magnets are poor in corrosion resistance
Features：
1. Simple structure properly designed with maximized magnetic force, saving cost.S
imple structure and cost saving due to a proper design with maximized magnetic force.
2. Magnet material: NdFeB magnets.
3. Coating option： Ni, Painting,Cr,Zn,etc.
5.MOQ: 50pc
6.Lead Time: about 4-5 weeks (according to the quantity);
7.Packing: Packed by carton or wood case for standard sea shipment or
standard shielding packing for air shipment;
Push Pin Neodymium Magnet list

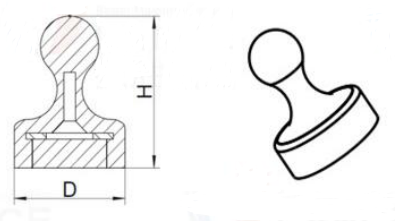

| Model | D (mm) | d (mm) | H(mm) | h (mm) | Weight (g) | Hold A4 on white board |
| D12*16 | 12 | 9 | 16 | 4 | 9.6 | 12 pieces |
| D16*20 | 16 | 11 | 20 | 5 | 16 | 16 pieces |
| D20*25 | 20 | 13 | 25 | 7 | 30 | 19 pieces |
| D25*30 | 25 | 18 | 30 | 7 | 53 | 23 pieces |
