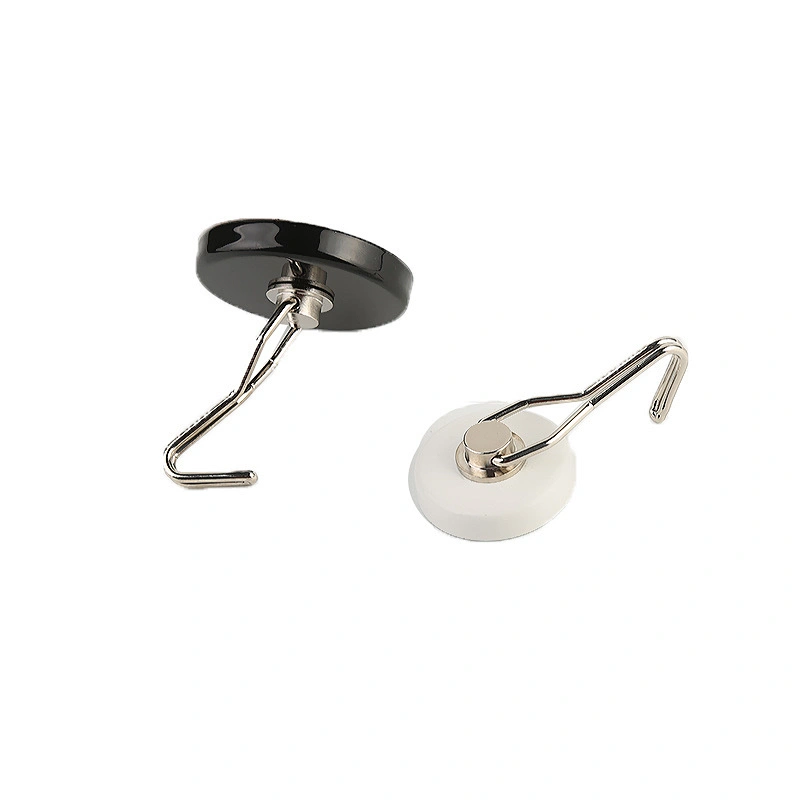

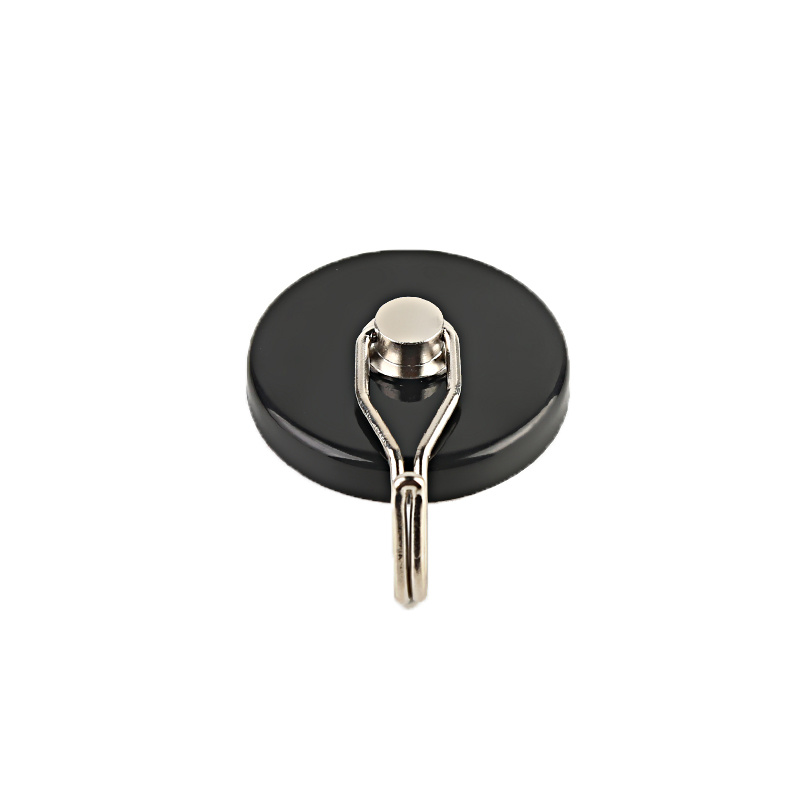

Magnetic hanging system also named Magnetic Hangers or magnetic swivel hooks
which consists of a steel case ,a swivel hook and permanent magnets.A swivel hook built
on the top of round base which could be rotated 360 degrees clockwise or counterclockwise
Magnetic Hangers are widely used as a wall hook to hold objects like keys,towls,etc. peoples call them magnetic key hook.
More Products please find on Magnetic hangers
Features
1. Coating:rubber
2. Material: Ferrite
3. Custom made service is available
4.Production time:40 Days
5.MOQ: 50pc
6.Packing: standard brown carton/wood case for air or sea shipment
7.Process: Half finished block of Sintered Neodymiun magnets > > Grinding > Cutting >
Coating > Checking > assemblying >Packing
8.Payment term: T/T
9.Loading Port:Ning Bo/Shang Hai
Magnetic hangers data sheet
| Model | D | d (mm) | d1 (mm) | H | h (mm) | I | Weight (g) | Vertical Breakaway (Kg) | Side Breakaway (Kg) |
| (mm) | (mm) | (mm) | |||||||
| SWFG36 | 36 | 16 | 10.8 | 14.5 | 8.3 | 20 | 50 | 4.2 | 1.7 |
| SWFG52 | 52 | 16 | 10.8 | 14.5 | 8.3 | 20 | 80 | 7.4 | 2.5 |
