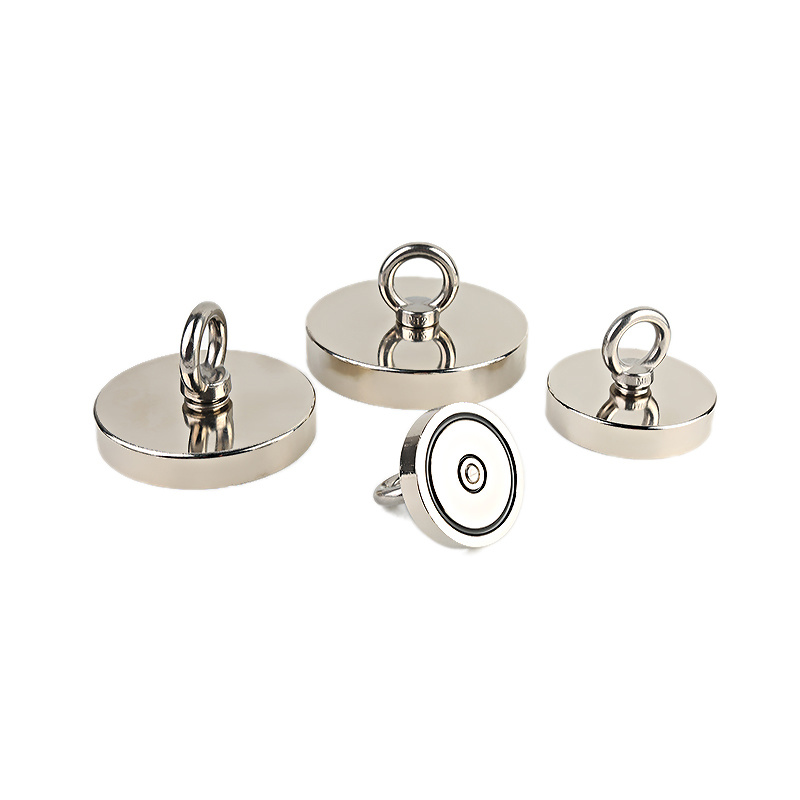

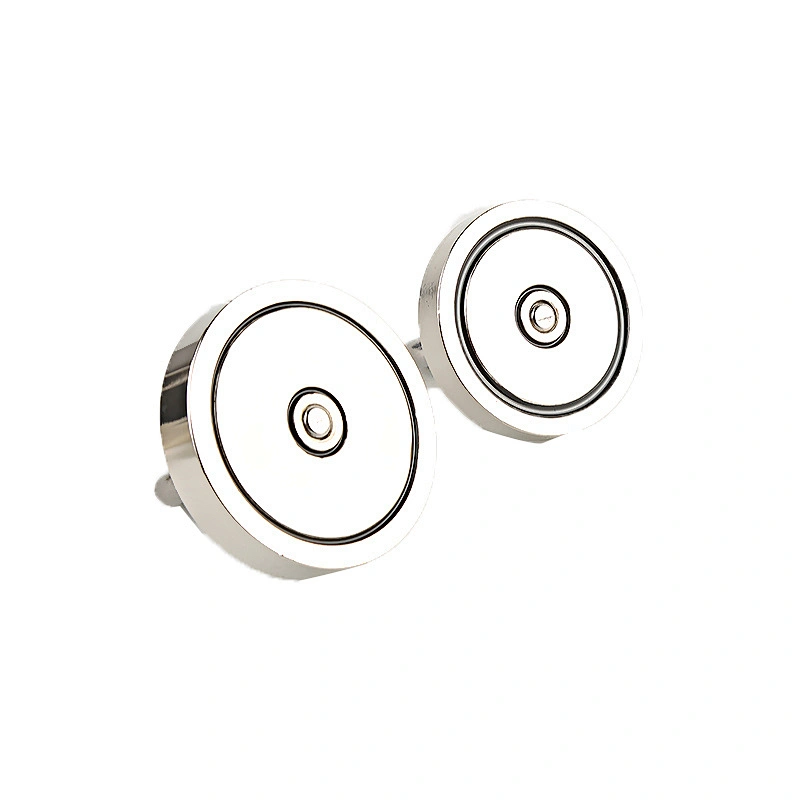

Fishing Magnet

Fishing magnets also names strong magnet for fish,magnet fishing,magnetic fishing
which consist of a steel casing ,eyelet and powerful neodymium magnets .They feature as strong &stable
 holding force which are widely used for fishing, treasure hunting, salvaging underwater, as well as
seeking for something old and  mysterious. Normally,a rope is tied to the eyelet ,and the fishing magnet
is thrown to the rivers,lakes,creeks or oceans to attrack something valued
​​​A coating protection is necessary due to the neodymium disc magnets are poor in corrosion resistance

 More Products please find on fishing magnet



Fetures

1.Neodymium Fishing magnet's  structure is  properly designed with maximized magnetic force
2. Magnet material : strong NdFeB
3. Coating option: Ni,electroplate
4. Custom made is available for other special requests.
5.Production time:30 Days(According to Quantity)
6.MOQ: 1pc
7.Packing: Standard packing for air or sea shipment according to requirement.
8.Process: Half finished block of Sintered Neodymiun magnets > > Grinding > Cutting >
Coating > Checking > assemblying >Packing
9.Delivery port:Ningbo/Shanghai

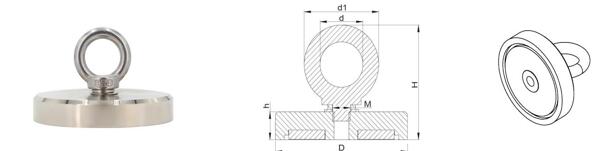

                                         Fishing magnets data sheet


Model	D	h (mm)	H	d (mm)	d1 (mm)	M	Weight (g)	Breakaway
	(mm)		(mm)
SWNM48	48	10	53	19.5	34.5	M8	180	80kg/175lb
SWNM60	60	12	55	19.5	34.5	M8	301	135kg/300lb
SWNM67	67	12	69	25	41.5	M10	395	170kg/380lb
SWNM75	75	15	69	25	41.5	M10	575	220kg/500lb
SWNM94	94	18	69	25	41.5	M10	1022	300kg/650lb
SWNM116	116	20	78	29	47	M12	1710	450kg/1000lb
SWNM136	136	23	78	29	47	M12	2655	600kg/1350lb
SWNM160	160	32	118	40	70	M20	5394	1000kg/2200lb
SWNM200	200	37	144	50	88	M24	8867	1500kg/3300lb
SWNM250	250	40	169	60	105	M30	16481	2000kg/4400lb
SWNM320	320	50	219	70	120	M36	32460	3000kg/6600lb

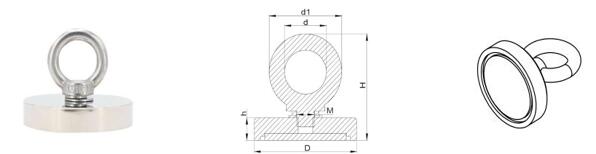

Model	D	h (mm)	H	d (mm)	d1 (mm)	M	Weight (g)	Breakaway
	(mm)		(mm)
SWNM48-1	48	10	48	19.5	34.5	M8	175	70kg/160lb
SWNM60-1	60	12	50	19.5	34.5	M8	295	135kg/300lb
SWNM67-1	67	12	60	25	41.5	M10	385	170kg/380lb
SWNM75-1	75	15	62	25	41.5	M10	567	220kg/500lb
SWNM94-1	94	18	67	25	41.5	M10	1012	300kg/650lb
SWNM116-1	116	20	70	29	47	M12	1640	450kg/1000lb
SWNM136-1	136	23	75	29	47	M12	2675	600kg/1350lb
SWNM160-1	160	32	110	40	70	M20	5214	1000kg/2200lb
SWNM200-1	200	37	135	50	88	M24	8889	1500kg/3300lb
SWNM250-1	250	40	157	60	105	M30	16871	2000kg/4400lb
SWNM320-1	320	50	198	70	120	M36	32633	3000kg/6600lb
