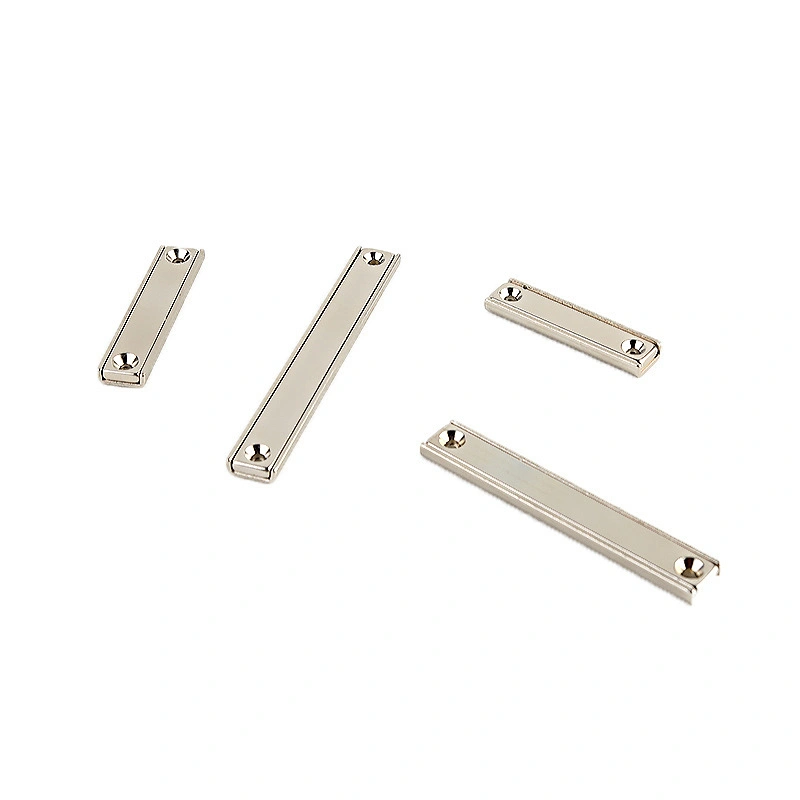

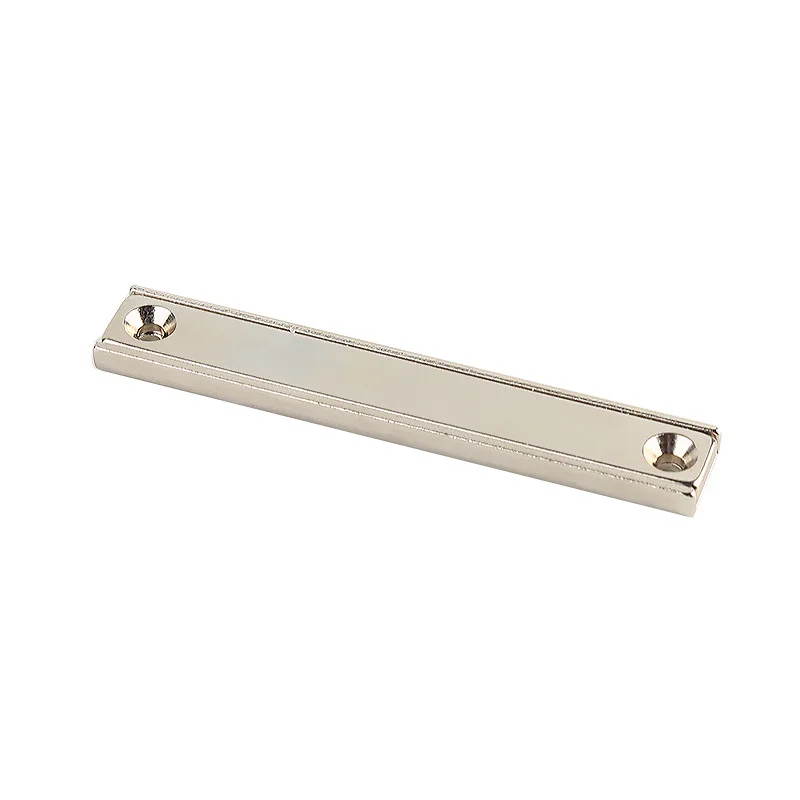

Neodymium channel magnet also names channel magnets,neodymium rectangular pot magnet
which consists a rectangular steel plate and rare earth magnets.It has two fixing countersunk
hole at each plate end to allow to be screwed onto an assembly which are used in warehouse,
home,factory etc.
More Products please find on Channel magnets
Features
1.Coating: Zn,Ni
2.Holding force:17-40KG
3.Magnet materials : ceramic
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

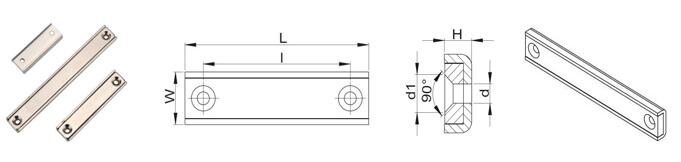

| Model | L | I | W | H | d (mm) | d1 (mm) | Weight (g) | Vertical Breakaway (kg) |
| (mm) | (mm) | (mm) | (mm) | |||||
| SWNI40 | 40 | 30 | 13.5 | 5 | 3.3 | 6.5 | 19 | 17 |
| SWNI50 | 50 | 40 | 13.5 | 5 | 3.3 | 6.5 | 24 | 27 |
| SWNI60 | 60 | 50 | 13.5 | 5 | 3.3 | 6.5 | 30 | 30 |
| SWNI80 | 80 | 70 | 13.5 | 5 | 3.3 | 6.5 | 38 | 33 |
| SWNI100 | 100 | 90 | 13.5 | 5 | 3.3 | 6.5 | 48 | 36 |
| SWNI120 | 120 | 110 | 13.5 | 5 | 3.3 | 6.5 | 58 | 40 |
