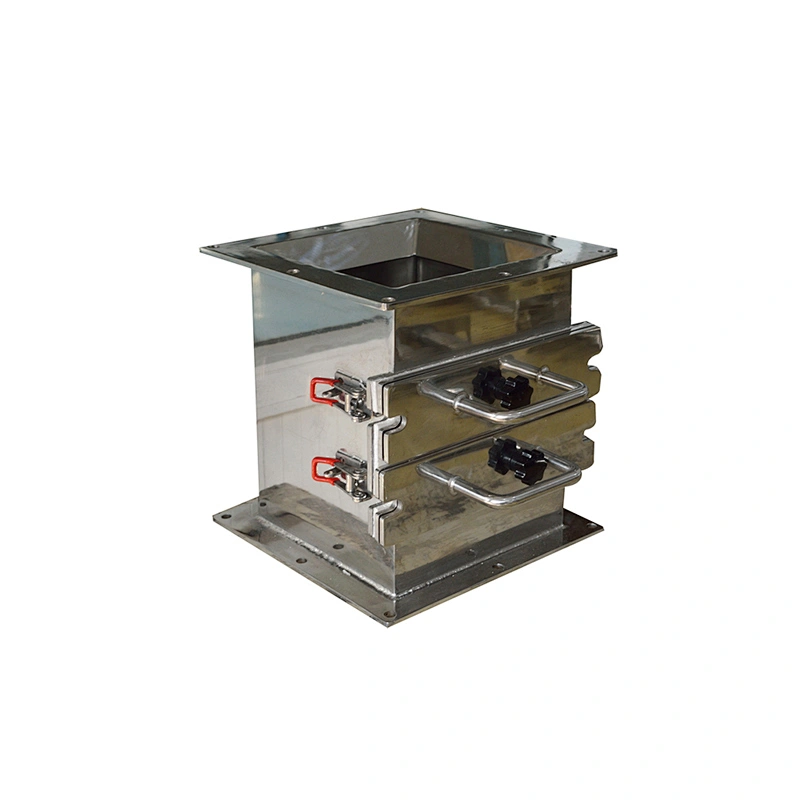

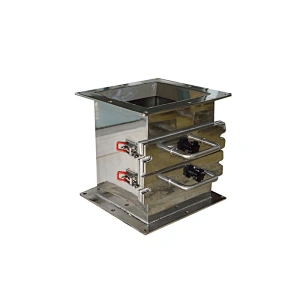

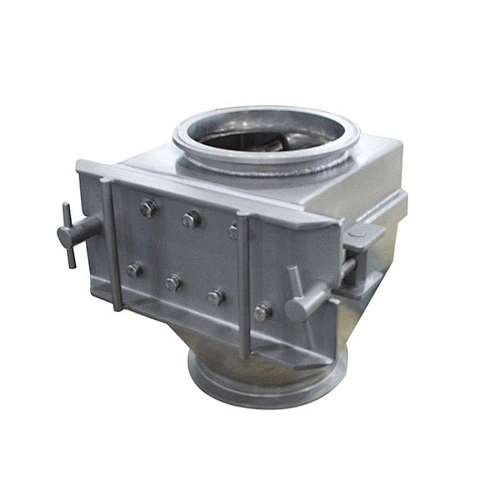

Easy-cleaning Magnetic Drawer Separator

Model NO.: SWd-NR-E

Product Description
Application Description

Magnetic drawer separations also name housed grid magnetic separation, drawer magnet, magnetic
drawer which consist of a stainless steel casing and inside grid magnet .Nomally the magnetic drawer
separations are installed throughout the facility line which are applied for removing ferrous contaminations
from power or granular materilas .Small irons will be attracted by the inside grid magnets which are
secured by locking clamps and silicon gasket.

Cleaning Procedure

1.Stop product flow
2.Release the locking clamps

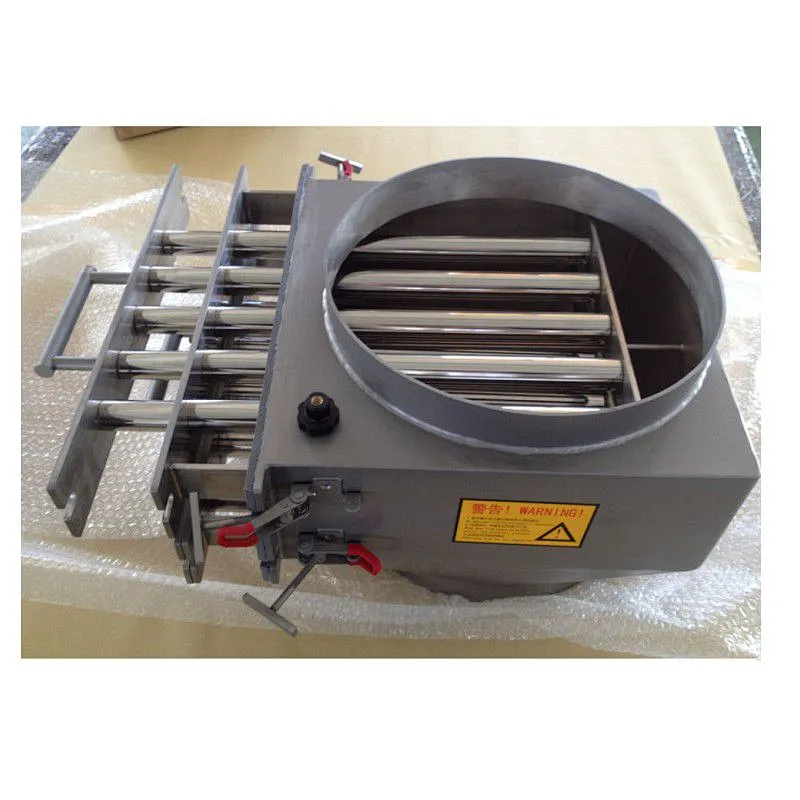

3.Pull whole set of grid magnet system out from the housing.
then release the locking nut&bolt,. Ferrous contamination
will fall off automatically once inside magnets are pulled out from the sleeve
4.Place the grid magnet system back into the housing
5.Re-lock the lokcing nuts
6.Begin product flow

Easy-cleaning Magnetic Drawer

1.Housing:SS304 or SS316L
2.Surface treatment: sand blasting /polishing
3.Magnetic intensity rate on the sleeve :1500-9000GS
4.Max working temparature: from 80℃ to 350℃
5.Magnet materials : Samarium-Cobalt (rare-earth), Ceramic , Neodymium-Iron-Boron(rare-earth)
6.Food grade welding: availble
7.Custom made :available.your logo/brand/pattern can be printed on
8.MOQ:1PC
9.Lead time:30days
10.Packing:wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai

**Easy-cleaning Magnetic Drawer Data Sheet (round flange)**
MODEL NO.	Dimension(mm)				Weight(KG)
MODEL NO.	D	H	A	B	Weight(KG)
SWd-NR-150	159	286	208	205	20
SWd-NR-200	219	286	258	255	28
SWd-NR-250	273	286	308	305	33
SWd-NR-300	325	286	358	355	43
SWs-NR-150	159	216	208	205	16
SWs-NR-200	219	216	258	255	20
SWs-NR-250	273	216	308	305	24
SWs-NR-300	325	216	358	355	31

**Easy-cleaning Magnetic Drawer Data Sheet(square flange)**
MODEL NO	Dimension(mm)			Weight(KG)
MODEL NO	H	A	B	Weight(KG)
SWd-NS-2020	270	208	205	16.5
SWd-NS-2525	270	258	255	25.5
SWd-NS-3030	270	308	305	32.5
SWd-NS-3535	270	358	355	39
SWd-NS-4040	270	408	405	50
SWs-NS-2020	200	208	205	12.5
SWs-NS-2525	200	258	255	19.5
SWs-NS-3030	200	308	305	23.5
SWs-NS-3535	200	358	355	27
SWs-NS-4040	200	408	405	35.5

Easy-cleaning Magnetic Drawer Separator is applied for removing ferrum contamination from materials
which widely used in fields of chemicals, pharmacy, food, plastic, rubber, dyestuff

Send Message

Related Products

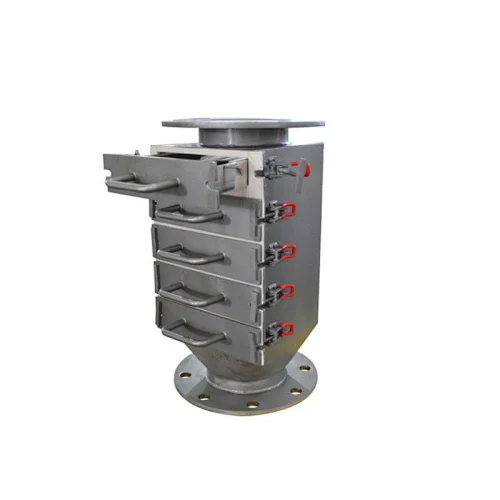

Magnetic Drawer Separation

Model NO. SWd-NR/ SWs-NR

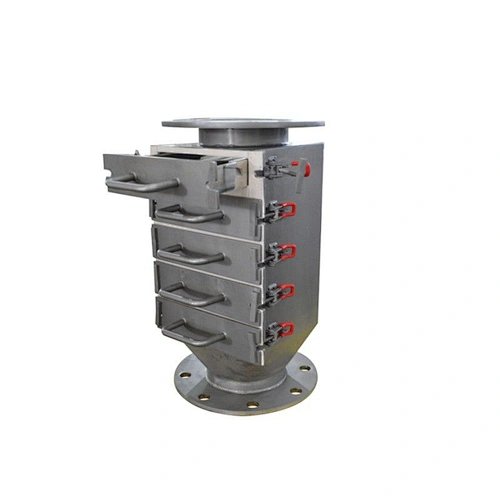

Neodymium Housed grid magnetic separator
