China threaded magnet
China threaded magnet

threaded magnet

Model NO.
SWF5

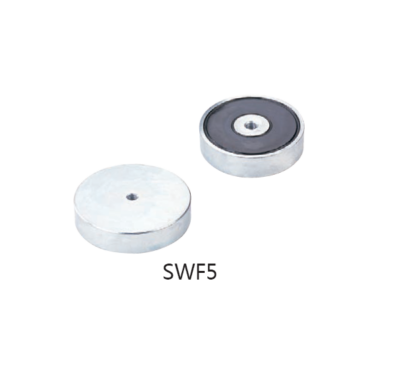

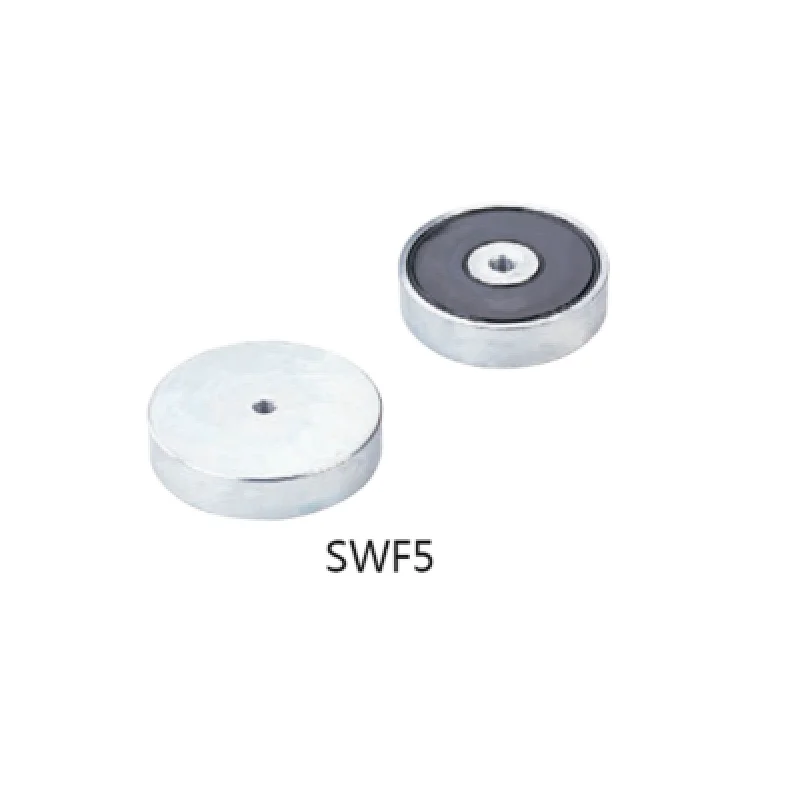

China Female threaded magnet
 Ceramic Shallow Pot Magnet with Internal Thread also names threaded magnet,female thread magnet,threaded hole magnets ,ceramic threaded pot magnet , ceramic round magnet with screw socket that consists of a steel casing
and ceramic magnet .They have a feature of an internal threaded stud in the center of the magnet, which
blots or screws is easy to be used to hold the magnet. Ceramic Shallow Pot Magnet with Internal Thread
is an ideal option for door, ceiling and window dressing




Features


1.Coating  option: Zn,Ni,Cr,Painting
2.Holding force:18-30N
3.Magnet materials : ceramic
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

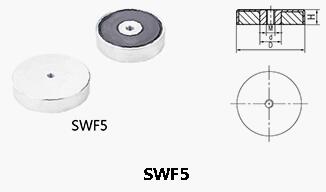

threaded hole magnets SWF5 SERIES sketch




                    Ceramic Shallow Pot Magnet with Internal Thread data sheet

Female thread magnet
MODEL NODimensions(mm)Weight(g)Force(N)
DHd1d2
SWF5-505010618105170
SWF5-636314820235250
SWF5-8080181028490400
SWF5-9090181030620620
SWF5-100100221030935800
