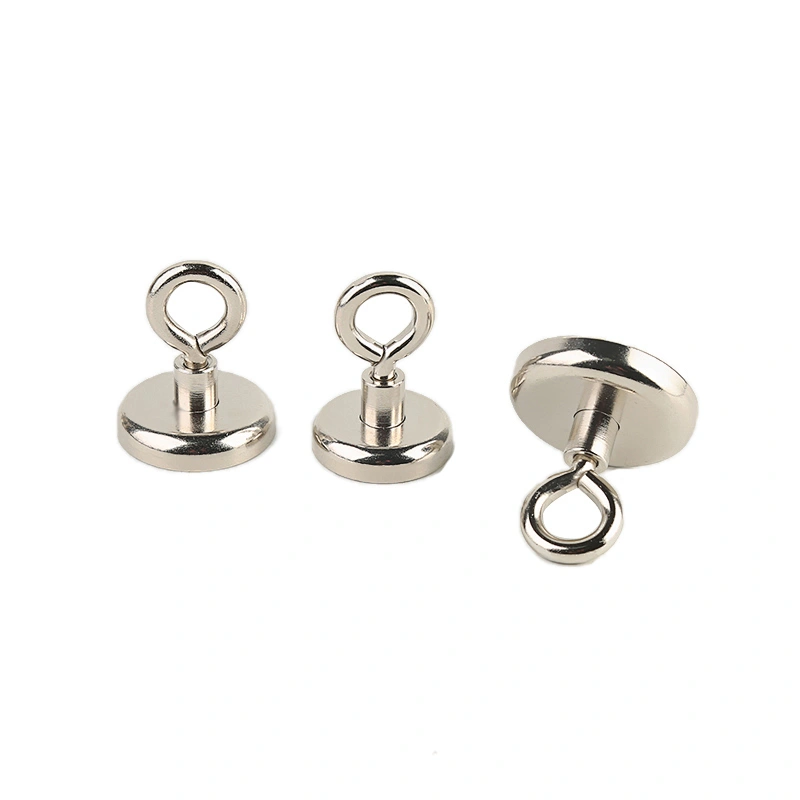

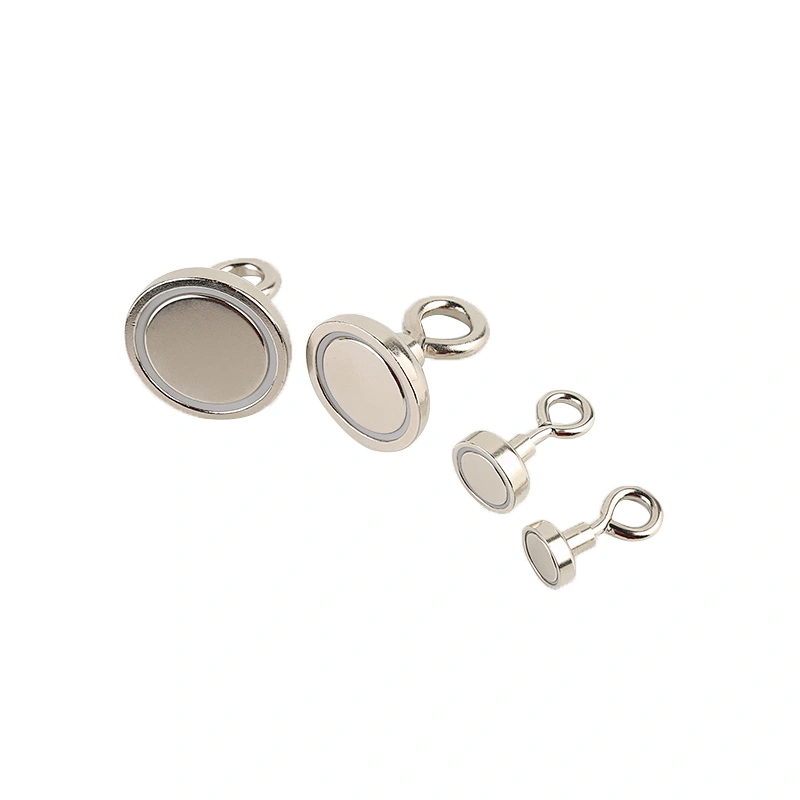

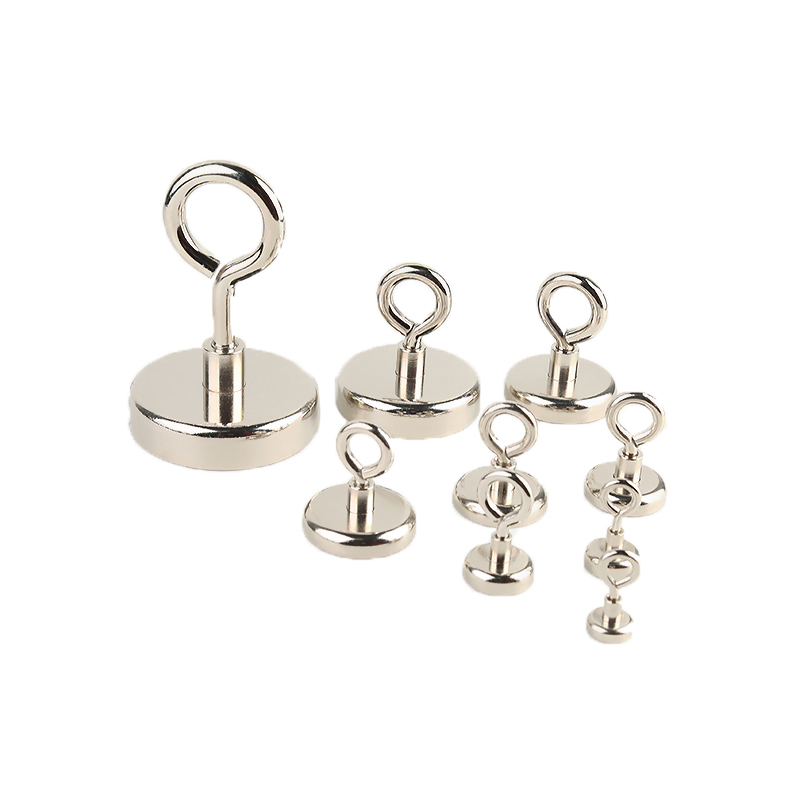

Super Strong magnetic hooks also name Neodymium Magnetic Hooks which are consist of Neodymium
magnet and metal cup with one threaded eyelet hook.They can provice amazing supper magnetic
force base on their small size. the steel cup can creates a super strong vertical magetic pull force
when they attrack on a flat iron surface.
More products please find on magnetic hook
Feature
1.Coating: Zn,Ni,Cr,Painting
2.Holding force:2-480KG base on different item no;
3.Magnet materials : NdFeb
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

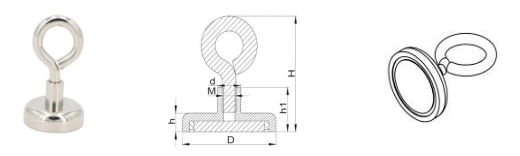

Magnetic Hooks
| Model | M | Weight (g) | Magnet Force (kg) | |||||
| D | d | h | h1 | H | ||||
| (mm) | (mm) | (mm) | (mm) | (mm) | ||||
| SWNF10 | 10 | 6 | 5 | 12.5 | 33 | M3 | 7 | 2 |
| SWNF12 | 12 | 6 | 5 | 12.5 | 33 | M3 | 8 | 4 |
| SWNF16 | 16 | 6.5 | 5 | 12.6 | 34.6 | M4 | 12 | 8 |
| SWNF20 | 20 | 6.5 | 7 | 14 | 36 | M4 | 21 | 12 |
| SWNF25 | 25 | 7.5 | 8 | 17 | 44.5 | M5 | 38 | 25 |
| SWNF32 | 32 | 10 | 8 | 18 | 47.5 | M6 | 63 | 34 |
| SWNF36 | 36 | 10 | 8 | 18 | 47.5 | M6 | 71 | 50 |
| SWNF42 | 42 | 10 | 8.6 | 18 | 47.5 | M6 | 106 | 72 |
| SWNF48 | 48 | 12 | 11 | 24 | 60.5 | M8 | 187 | 81 |
| SWNF55 | 55 | 12 | 12 | 28 | 64.5 | M8 | 257 | 95 |
| SWNF60 | 60 | 12 | 15 | 28 | 64.5 | M8 | 367 | 160 |
| SWNF70 | 70 | 17 | 17 | 34 | 90 | M10 | 582 | 200 |
| SWNF75 | 75 | 17 | 18 | 35 | 91 | M10 | 697 | 270 |
| SWNF80 | 80 | 17 | 18 | 35 | 91 | M10 | 777 | 300 |
| SWNF90 | 90 | 17 | 18 | 35 | 91 | M10 | 977 | 360 |
| SWNF120 | 120 | 22 | 18 | 40 | 96 | M12 | 1670 | 480 |
