Sm2Co17&SmCo5 Magnets are made from Samarium(Sm) , Cobalt(Co), iron(Fe) and Zirconium(Zr) .

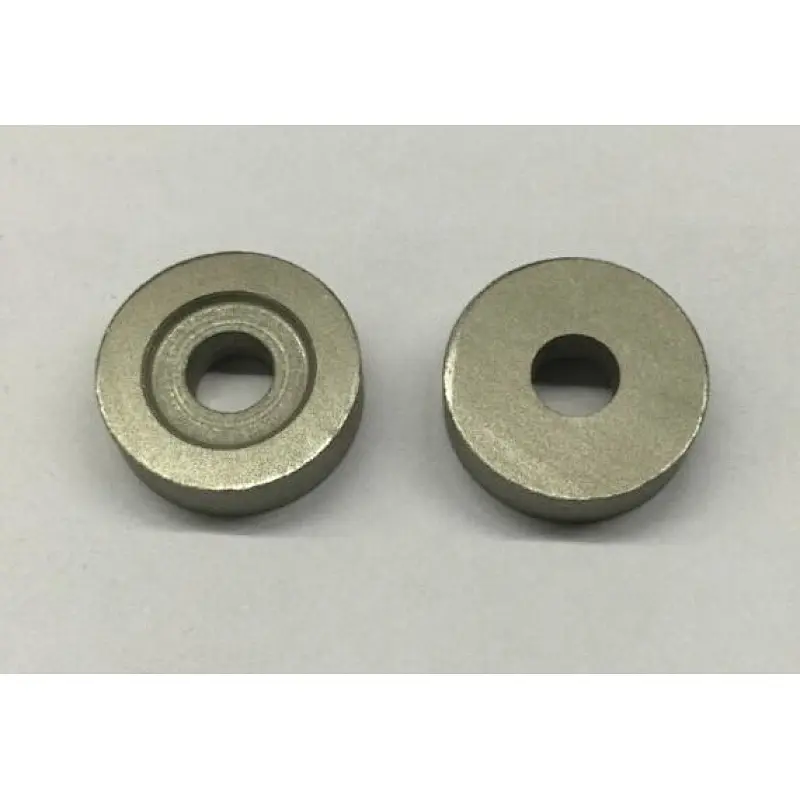

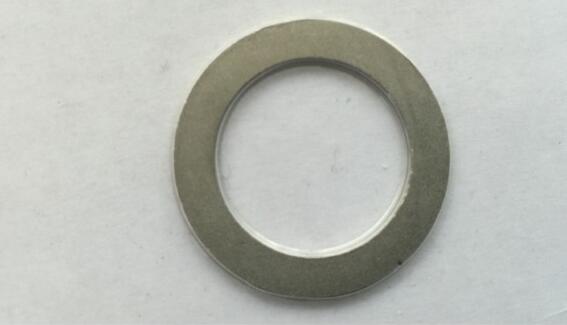

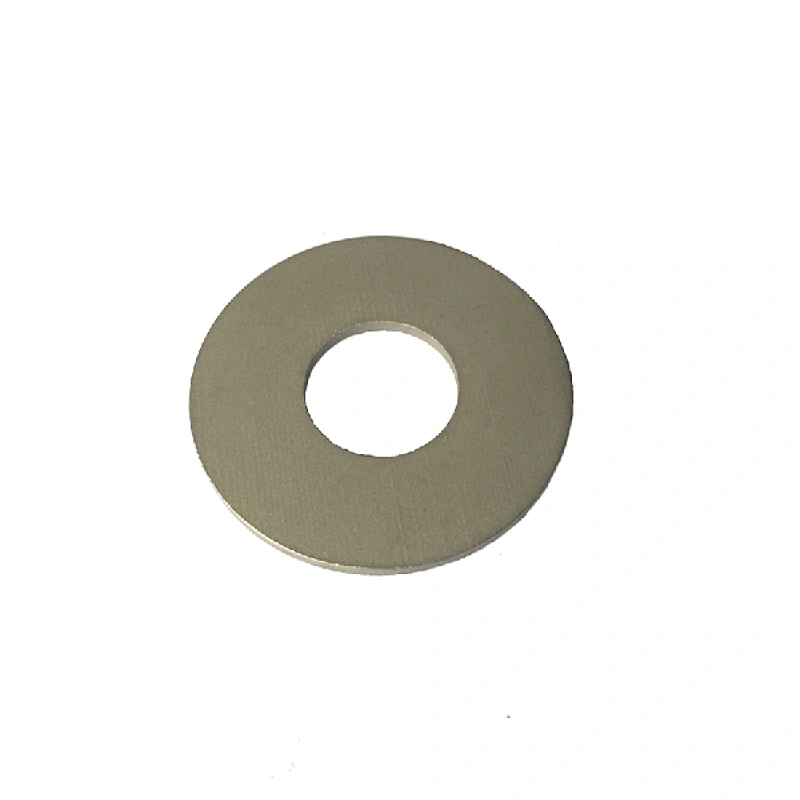

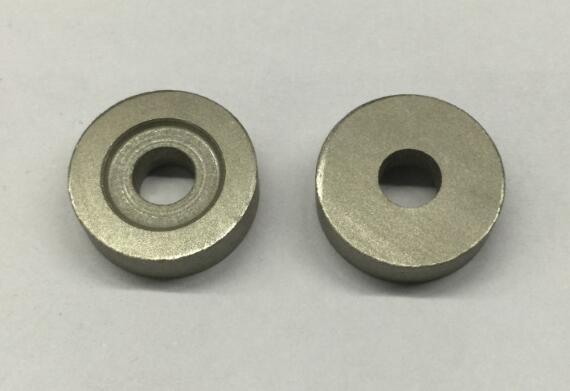

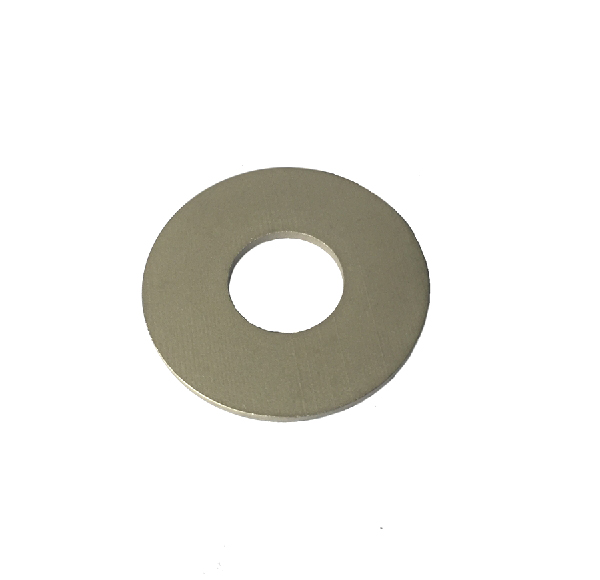

Samarium cobalts ring magnets is kind of disc or round magnet with a hole through the centre which are
an ideal material for low-carbon and energy-saving application widly used in the industry of motors,
generators ,sensors, actuators ,computor etc and an ideal material
Samarium cobalts ring magnets is kind of disc or round magnet with a hole through the centre which are
an ideal material for low-carbon and energy-saving application widly used in the industry of motors,
generators ,sensors, actuators ,computor etc and an ideal material
Smco magnets with special property can be up to 400-500°C
Name: SmCo ring magnet
Material:samarium and cobalts metals
Option: SmCo5 magnets or Sm2CO17 Magnets.
Diameter: Max 120 mm/ Min1mm
Surface treatment: Uncoated or Ni coating is available
Axially or Diametrically magnetized is available.
Custom made service: available
Sample: available
5.Production time:30 Days(According to Quantity)
6.MOQ: 10pc
7.Packing: Standard packing for air or sea shipment according to requirement.
8.Process: Half finished block of SmCo magnets > > Grinding >
Cutting >latching >Coating > Checking > assemblying >Packing
| Material Grade | Residual Fulx | Coercive Force | Intrinsic Coercive Force | Max. Energy Product | ||||||
| Br | Hcb | Hcj | (BH)max | |||||||
| KGs | T | KOe | KA/m | KOe | KA/m | MGOe | KJ/m3 | |||
| SmCO5 | SM-16A | 8.0-9.0 | 0.80-0.90 | 7.7-8.8 | 613-700 | 18.0-30.0 | 1430-2388 | 16±2 | 127±16 | |
| SM-18A | 8.4-9.7 | 0.84-0.97 | 8.2-9.4 | 653-748 | 15.0-22.0 | 1194-1751 | 18±2 | 143±16 | ||
| Sm2Co17 | SM-24A | 10.0-10.6 | 1.00-1.06 | 8.0-9.5 | 637-756 | 20.0-28.0 | 1592-2229 | 24±2 | 191±16 | |
| SM-24B | 10.0-10.6 | 1.00-1.06 | 6.2-8.0 | 494-637 | 7.0-11.0 | 557-876 | 24±2 | 191±16 | ||
| SM-26A | 10.2-10.8 | 1.02-1.08 | 8.5-10.2 | 677-812 | 20.0-28.0 | 1592-2229 | 26±2 | 207±16 | ||
| SM-26B | 10.2-10.8 | 1.02-1.08 | 8.0-9.5 | 637-756 | 9.0-18.0 | 717-1433 | 26±2 | 207±16 | ||
| SM-28A | 10.5-11.0 | 1.05-1.10 | 8.5-10.3 | 677-812 | 20.0-28.0 | 1592-2229 | 28±2 | 223±16 | ||
| SM-30A | 10.7-11.5 | 1.07-1.15 | 8.5-10.5 | 677-836 | 20.0-28.0 | 1592-2229 | 29±2 | 231±16 | ||
| SM-30B | 10.7-11.5 | 1.07-1.15 | 7.5-9.5 | 597-756 | 9.0-18.0 | 717-1433 | 29±2 | 231±16 | ||
| SM-32A | 11.0-12.0 | 1.10-1.20 | 9.5-10.5 | 756-836 | 20.0-28.0 | 1592-2229 | 30±2 | 239±16 | ||
| SM-32B | 11.0-12.0 | 1.10-1.20 | 7.0-9.5 | 557-756 | 8.5-15.0 | 677-1195 | 30±2 | 239±16 | ||
