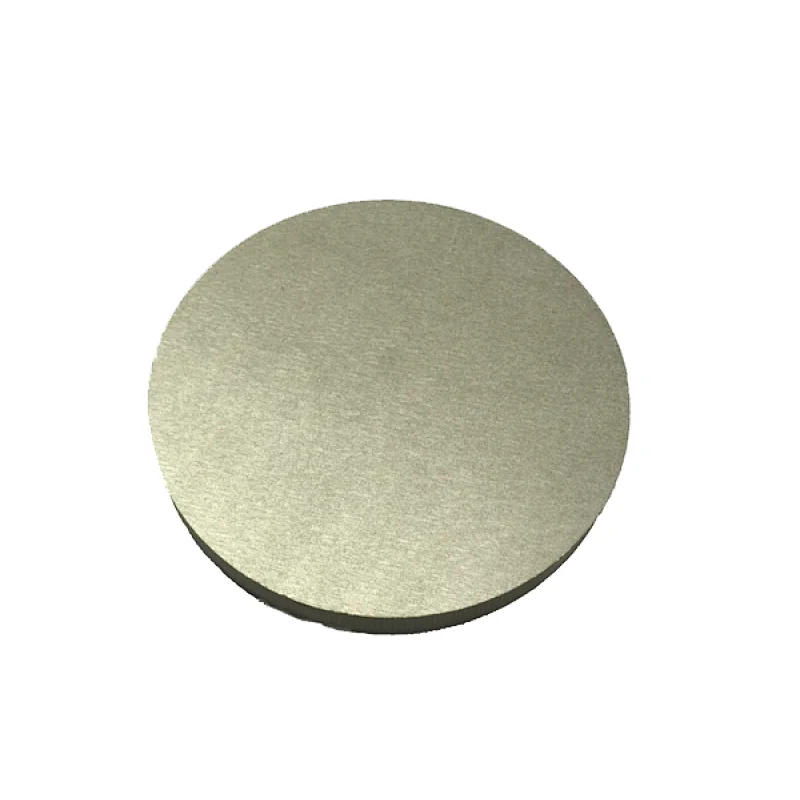

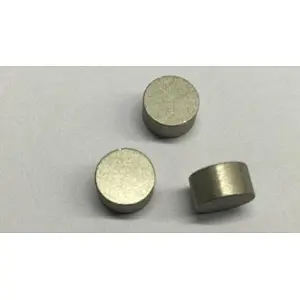

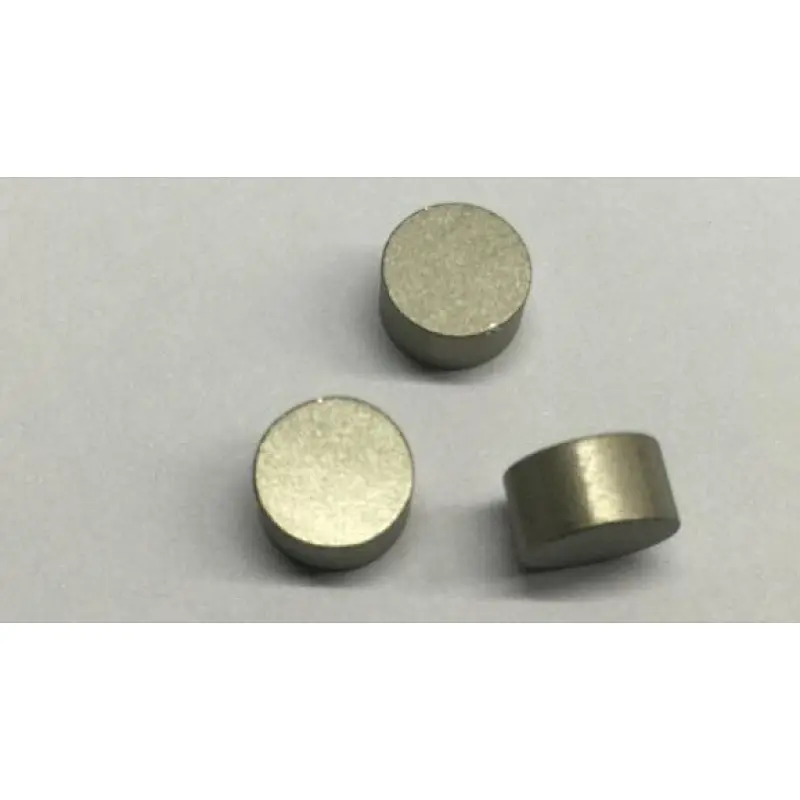

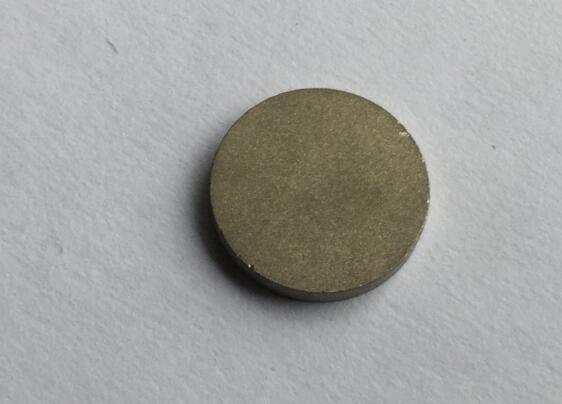

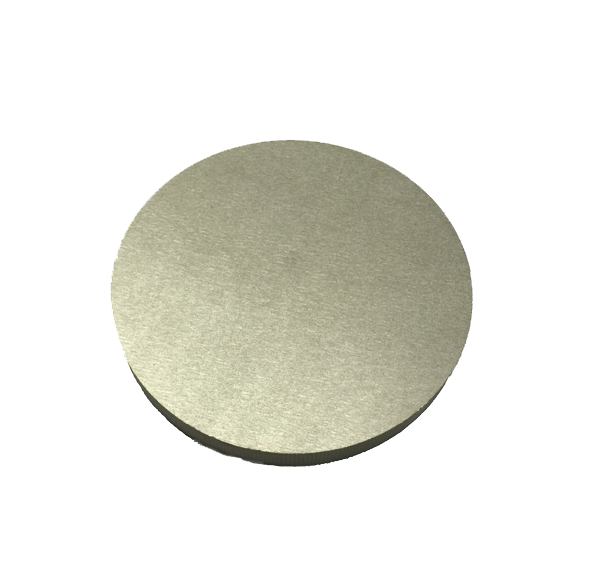

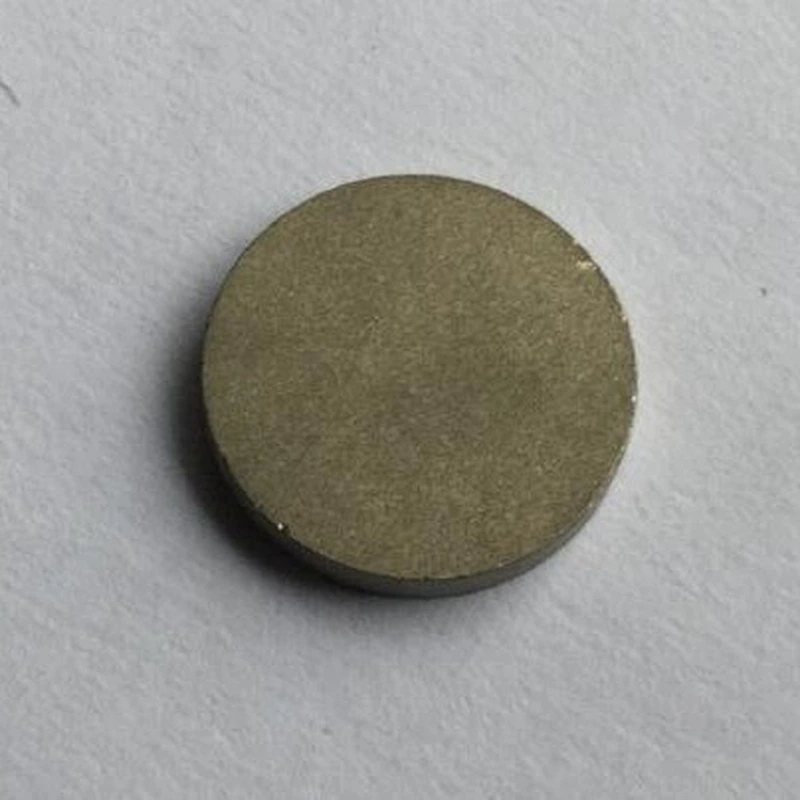

SmCo Disc Magnet

Model NO.: SW-16A

Product Description
Application Description

Sm2Co17 Magnets are made from Samarium(Sm) , Cobalt(Co), iron(Fe) and Zirconium(Zr),
The (BH)max range from 20 to 32MGOe, maximum working temperature up to 350°C

SmCo Disc Magnets Material: Cobalt Samarium

Dimension :D10x2,D2x2 ,D3x1.2,D1.5x1.5,D80x30 etc./option: SmCo5 magnets or Sm2CO17 Magnets.

Maximum diameter can up to 120mm, the Minimum Diameter is only 1mm.

Name: SmCo disc magnet
Material:samarium and cobalts metals
Option: SmCo5 magnets or Sm2CO17 Magnets.
Surface treatment: Uncoated or Ni coating is available
Axially or Diametrically magnetized is available.
Custom made service: available
Sample: available
5.Production time:30 Days(depend on Quantity)
6.MOQ: 10pc
7.Packing: Standard packing for air or sea shipment according to requirement.
8.Process: Half finished block of smco magnets > > Grinding >Cutting
>latching >Coating > Checking > assemblying >Packing

Material Grade		Residual Fulx		Coercive Force		Intrinsic Coercive Force		Max. Energy Product
		Br		Hcb		Hcj		(BH)max
		KGs	T	KOe	KA/m	KOe	KA/m	MGOe	KJ/m3
SmCO5	SM-16A	8.0-9.0	0.80-0.90	7.7-8.8	613-700	18.0-30.0	1430-2388	16±2	127±16
SmCO5	SM-18A	8.4-9.7	0.84-0.97	8.2-9.4	653-748	15.0-22.0	1194-1751	18±2	143±16
Sm2Co17	SM-24A	10.0-10.6	1.00-1.06	8.0-9.5	637-756	20.0-28.0	1592-2229	24±2	191±16
	SM-24B	10.0-10.6	1.00-1.06	6.2-8.0	494-637	7.0-11.0	557-876	24±2	191±16
	SM-26A	10.2-10.8	1.02-1.08	8.5-10.2	677-812	20.0-28.0	1592-2229	26±2	207±16
	SM-26B	10.2-10.8	1.02-1.08	8.0-9.5	637-756	9.0-18.0	717-1433	26±2	207±16
	SM-28A	10.5-11.0	1.05-1.10	8.5-10.3	677-812	20.0-28.0	1592-2229	28±2	223±16
	SM-30A	10.7-11.5	1.07-1.15	8.5-10.5	677-836	20.0-28.0	1592-2229	29±2	231±16
	SM-30B	10.7-11.5	1.07-1.15	7.5-9.5	597-756	9.0-18.0	717-1433	29±2	231±16
	SM-32A	11.0-12.0	1.10-1.20	9.5-10.5	756-836	20.0-28.0	1592-2229	30±2	239±16
	SM-32B	11.0-12.0	1.10-1.20	7.0-9.5	557-756	8.5-15.0	677-1195	30±2	239±16
