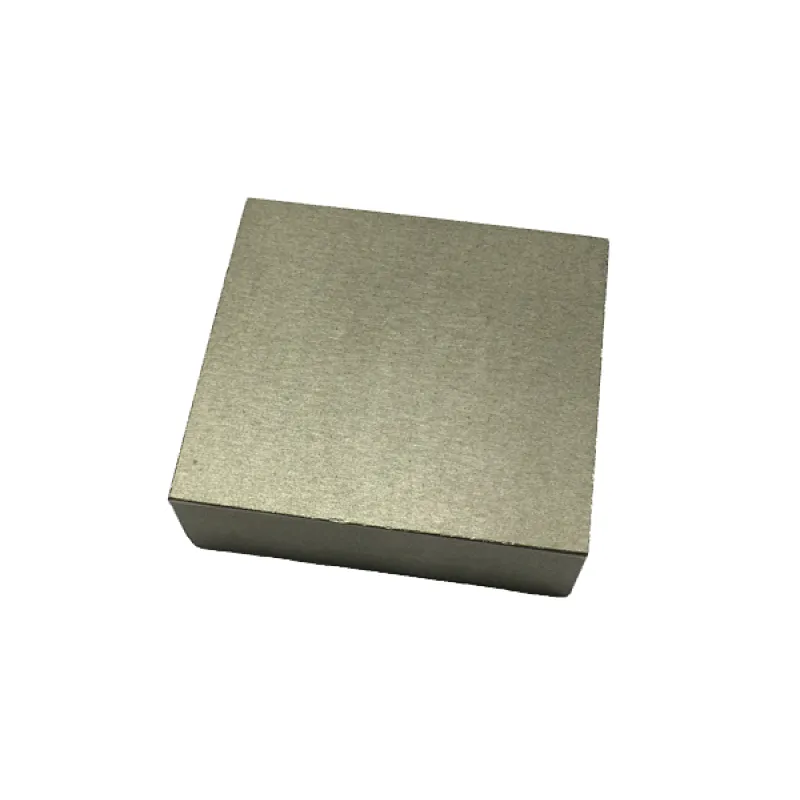

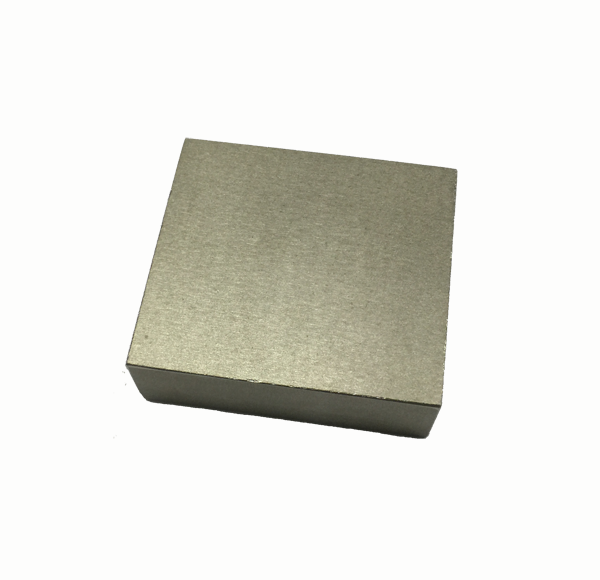

Samarium Block Magnets
Samarium Block Magnets

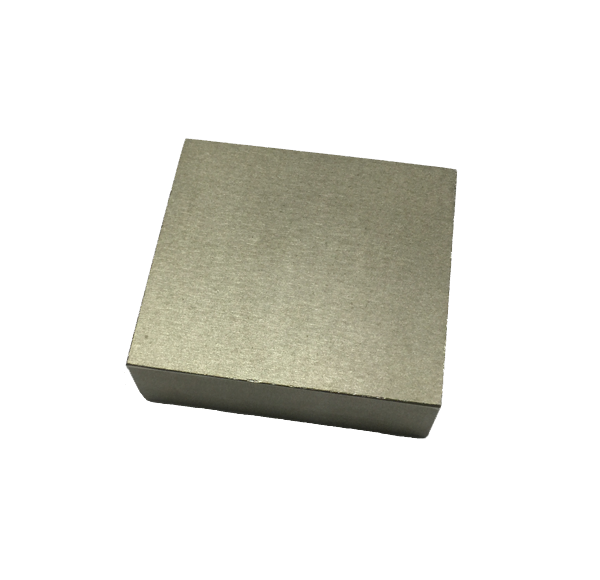

SmCo Block Magnets

Model NO.
SmCo Block





Sm2Co17 Magnets are made from  Samarium(Sm) , Cobalt(Co), iron(Fe) and Zirconium(Zr),
The (BH)max range from 20 to 32MGOe, maximum working temperature up to 350°C



SmCo Block Magnets,Samarium Block Magnets,SmCo rectangular magnets
MaterialSintered Samarium Cobalt from SmCo5 and SM2Co17
SizeCustomized size.Typical dimension of Samarium Magnets :40.5×40.5×4.4 ,
42x23.2x4, 40.5×15.5×3 and so on. Maximum Samarium block magnets block
can up to 120mm×120mm×100mm,Magnetized through 100mm.Minimum size of
magnetized direction: 0.7mm , such as  4*4*0.7mm ,
ProcessIngredient-melting-crushing-pressing-sintering-machining-packing-shipemnt
Plating/Finishnot need coating.Some customers ask Ni,Zn or Epoxy coating.
Colorsgrey,shining or black or white.
MOQ.NO MOQ
PortNingbo, Shanghai,Beijing
Packingsea packing or air packing

Material GradeResidual FulxCoercive ForceIntrinsic Coercive ForceMax. Energy Product
BrHcbHcj(BH)max
KGsTKOeKA/mKOeKA/mMGOeKJ/m3
SmCO5SM-16A8.0-9.00.80-0.907.7-8.8613-70018.0-30.01430-238816±2127±16
SM-18A8.4-9.70.84-0.978.2-9.4653-74815.0-22.01194-175118±2143±16
Sm2Co17SM-24A10.0-10.61.00-1.068.0-9.5637-75620.0-28.01592-222924±2191±16
SM-24B10.0-10.61.00-1.066.2-8.0494-6377.0-11.0557-87624±2191±16
SM-26A10.2-10.81.02-1.088.5-10.2677-81220.0-28.01592-222926±2207±16
SM-26B10.2-10.81.02-1.088.0-9.5637-7569.0-18.0717-143326±2207±16
SM-28A10.5-11.01.05-1.108.5-10.3677-81220.0-28.01592-222928±2223±16
SM-30A10.7-11.51.07-1.158.5-10.5677-83620.0-28.01592-222929±2231±16
SM-30B10.7-11.51.07-1.157.5-9.5597-7569.0-18.0717-143329±2231±16
SM-32A11.0-12.01.10-1.209.5-10.5756-83620.0-28.01592-222930±2239±16
SM-32B11.0-12.01.10-1.207.0-9.5557-7568.5-15.0677-119530±2239±16
Smco magnets are widly used in fields of motor ,generator.
