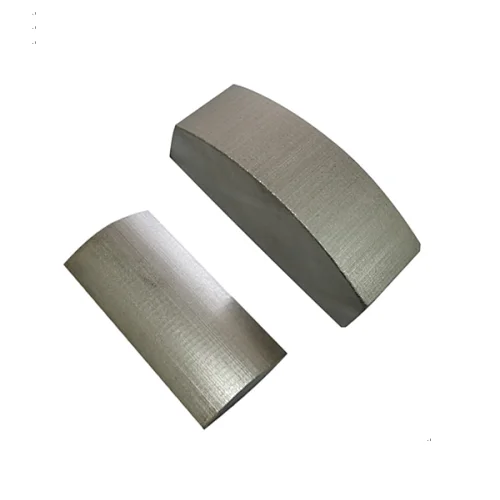

smco arc magnets

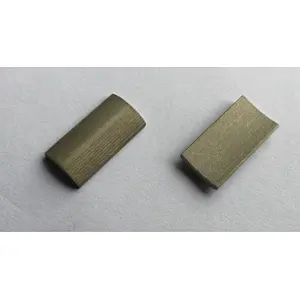

smco arc magnets

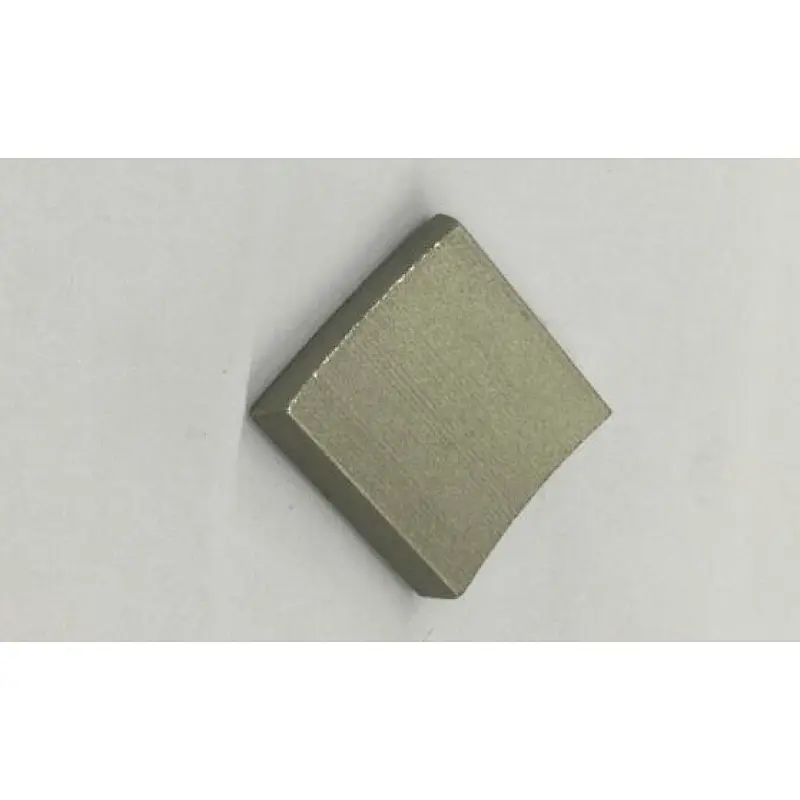

smco segment magnets

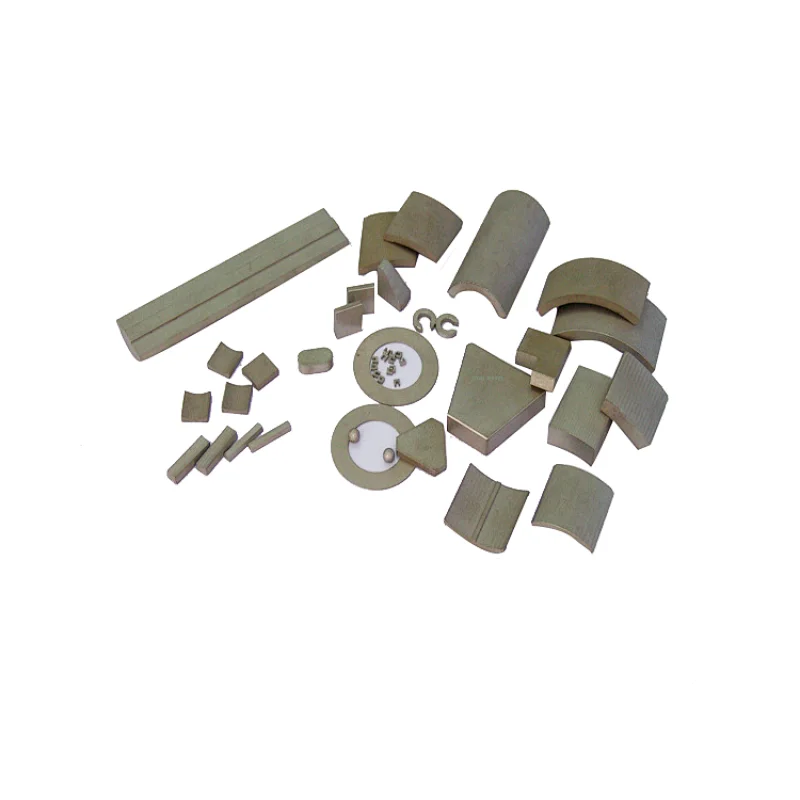

smco segment magnets

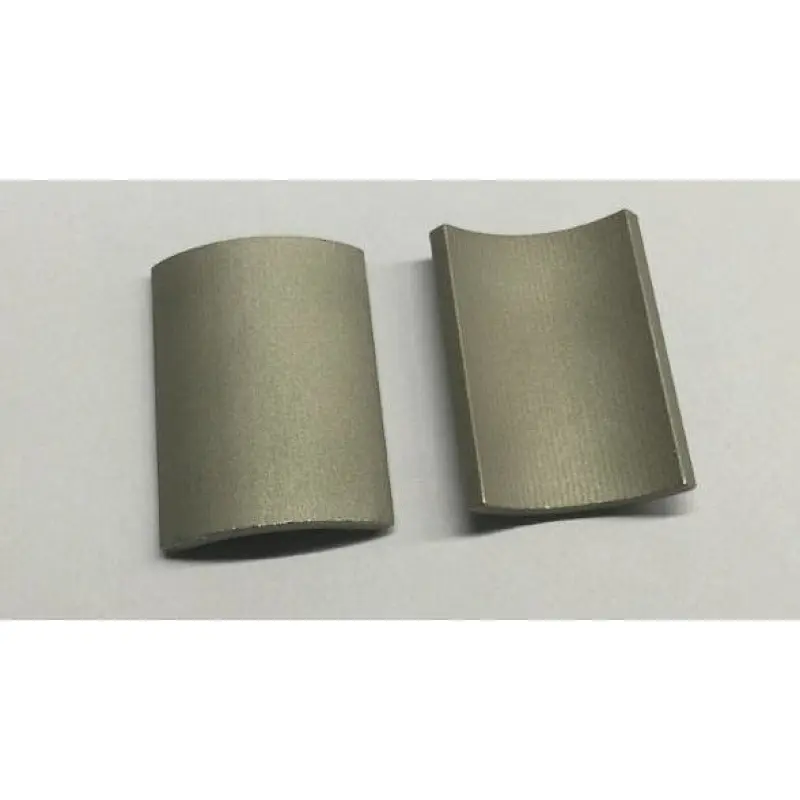

smco arc magnets
smco motor magnets
smco arc magnets
smco segment magnets
smco segment magnets
smco arc magnets
smco motor magnets

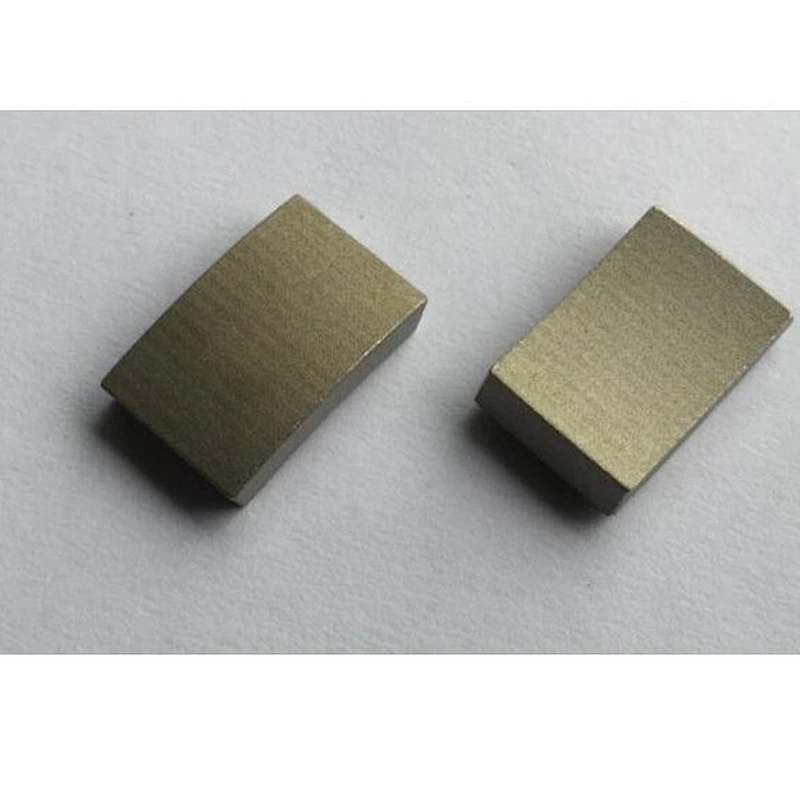

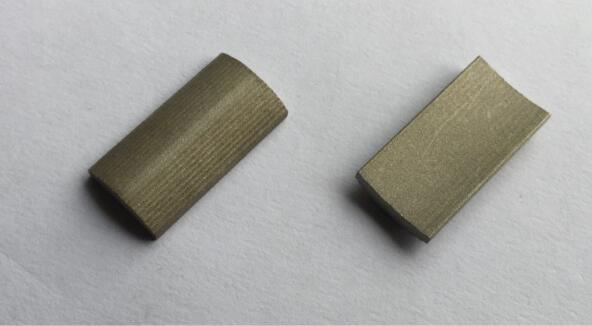

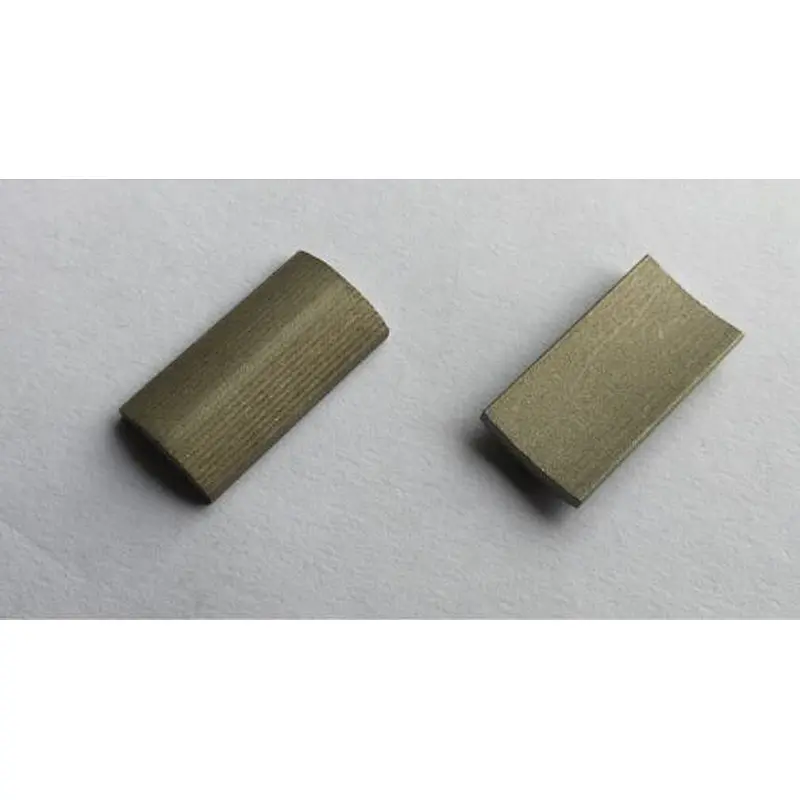

SMCO Arc Magnet

Model NO.
SM-18A

smco arc magnets

Sm2Co17& SmCo5 Magnets are made from Samarium(Sm), Cobalt(Co), iron(Fe)and Zirconium(Zr) which featured as good thermal stability, corrosion resistanceand demagnetization resistance.Samarium cobalts arc magnets are also called Smco segment magnets which arean ideal material for low-carbon and energy-saving application and widly used in theindustry of motors, generators ,sensors, actuators ,computer etc. The (BH) max ranges from 20 to 32MGOe, maximum working temperature up to 350°Cfor common grade.Smco magnets with special property can be up to 400-550°CName: SmCo arc magnetMaterial:samarium and cobalts metalsOption: SmCo5 magnets or Sm2CO17 Magnets.Surface treatment: Uncoated or Ni coating is availableAxially or Diametrically magnetized is available.Custom made service: availableSample: available5.Production time:30 Days(depend on Quantity)6.MOQ: 10pc7.Packing: Standard packing for air or sea shipment according to requirement.8.Process: Half finished block of smco magnets > > Grinding >Cutting >latching >Coating > Checking > assemblying >Packing
Material GradeResidual FulxCoercive ForceIntrinsic Coercive ForceMax. Energy Product
BrHcbHcj(BH)max
KGsTKOeKA/mKOeKA/mMGOeKJ/m3
SmCO5SM-16A8.0-9.00.80-0.907.7-8.8613-70018.0-30.01430-238816±2127±16
SM-18A8.4-9.70.84-0.978.2-9.4653-74815.0-22.01194-175118±2143±16
Sm2Co17SM-24A10.0-10.61.00-1.068.0-9.5637-75620.0-28.01592-222924±2191±16
SM-24B10.0-10.61.00-1.066.2-8.0494-6377.0-11.0557-87624±2191±16
SM-26A10.2-10.81.02-1.088.5-10.2677-81220.0-28.01592-222926±2207±16
SM-26B10.2-10.81.02-1.088.0-9.5637-7569.0-18.0717-143326±2207±16
SM-28A10.5-11.01.05-1.108.5-10.3677-81220.0-28.01592-222928±2223±16
SM-30A10.7-11.51.07-1.158.5-10.5677-83620.0-28.01592-222929±2231±16
SM-30B10.7-11.51.07-1.157.5-9.5597-7569.0-18.0717-143329±2231±16
SM-32A11.0-12.01.10-1.209.5-10.5756-83620.0-28.01592-222930±2239±16
SM-32B11.0-12.01.10-1.207.0-9.5557-7568.5-15.0677-119530±2239±16
Sm2CO17 segment Magnets are widly used in fields of motor ,generator.
