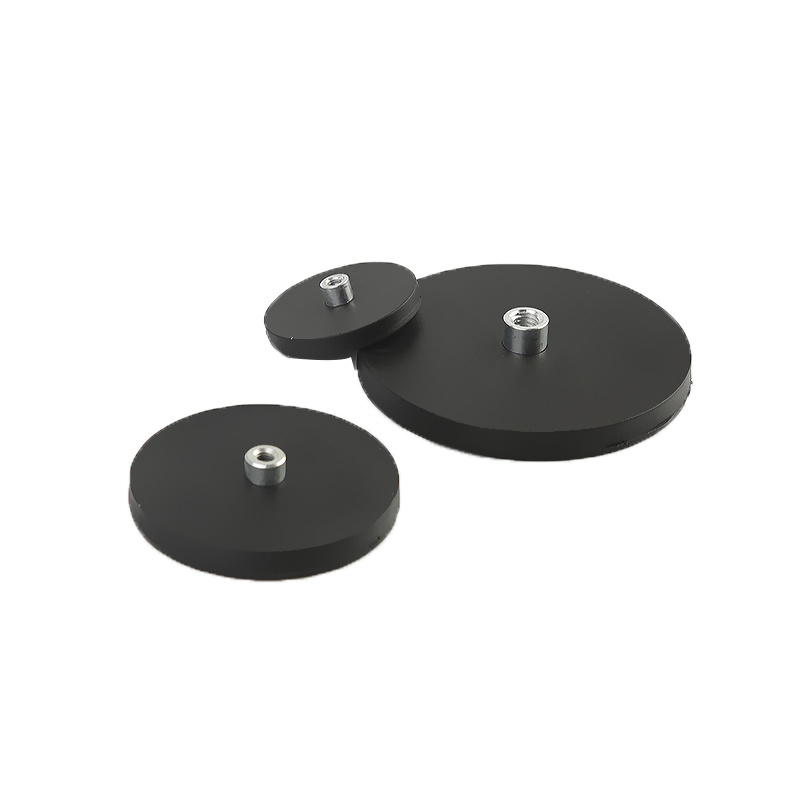

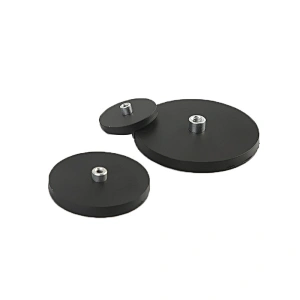

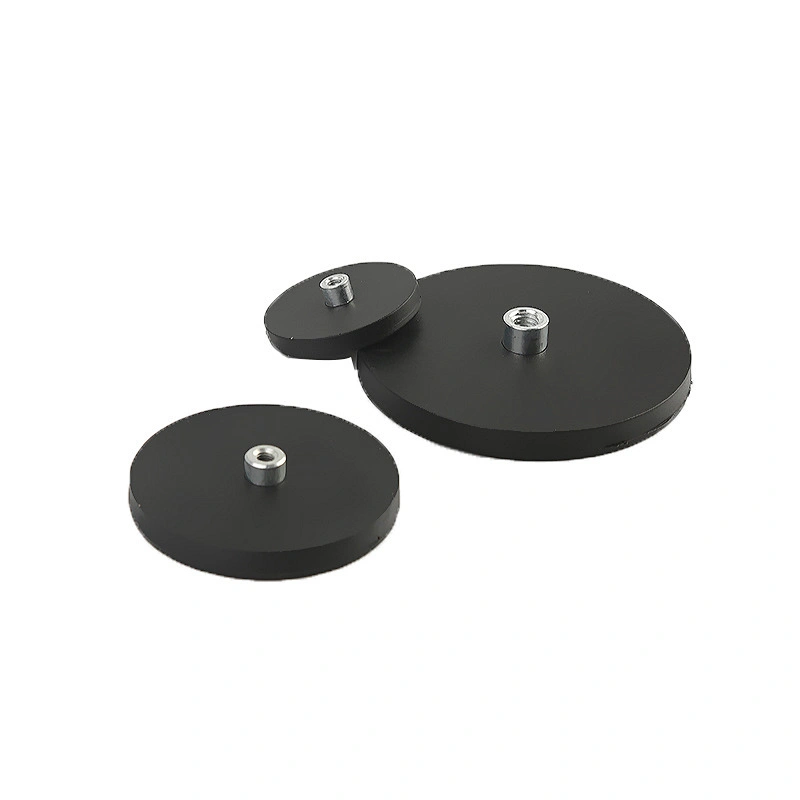

Neodymium Rubber Pot Magnet also names Rubber coated neodymium magnet, NdFeB rubber pot magnet
which consists of a rubber cover and neodymium magnets. They are suitable for fixing objects like advertising displays
or attachments to cars body work as well as for retail applications such as mounting signs or banners. The rubber
coating ensures a good protection in humid conditions.
which consists of a rubber cover and neodymium magnets. They are suitable for fixing objects like advertising displays
or attachments to cars body work as well as for retail applications such as mounting signs or banners. The rubber
coating ensures a good protection in humid conditions.
Features
1. Coating:rubber
2. Material: NdFeB/ Ferrite, etc.
3. Custom made service is available
4.Production time:40 Days
5.MOQ: 50pc
6.Packing: standard brown carton/wood case for air or sea shipment
7.Process: Half finished block of Sintered Neodymiun magnets > > Grinding > Cutting >
Coating > Checking > assemblying >Packing
8.Payment term: T/T
9.Loading Port:Ning Bo/Shang Hai

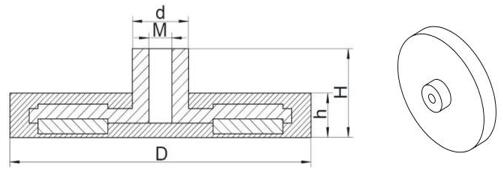

Neodymium Rubber Pot Magne data sheet
| Model | D | d (mm) | h (mm) | H | M | Weight (g) | Breakaway (Kg) |
| (mm) | (mm) | ||||||
| STD22 | 22 | 8 | 6 | 11.5 | M4 | 12 | 5 |
| STD34 | 34 | 8 | 8 | 14 | M4 | 22 | 6 |
| STD43 | 43 | 8 | 6 | 12 | M4 | 33 | 8 |
| STD66 | 66 | 12 | 8 | 14.2 | M5 | 104 | 20 |
| STD88 | 88 | 12 | 8.5 | 15.8 | M8 | 200 | 42 |
