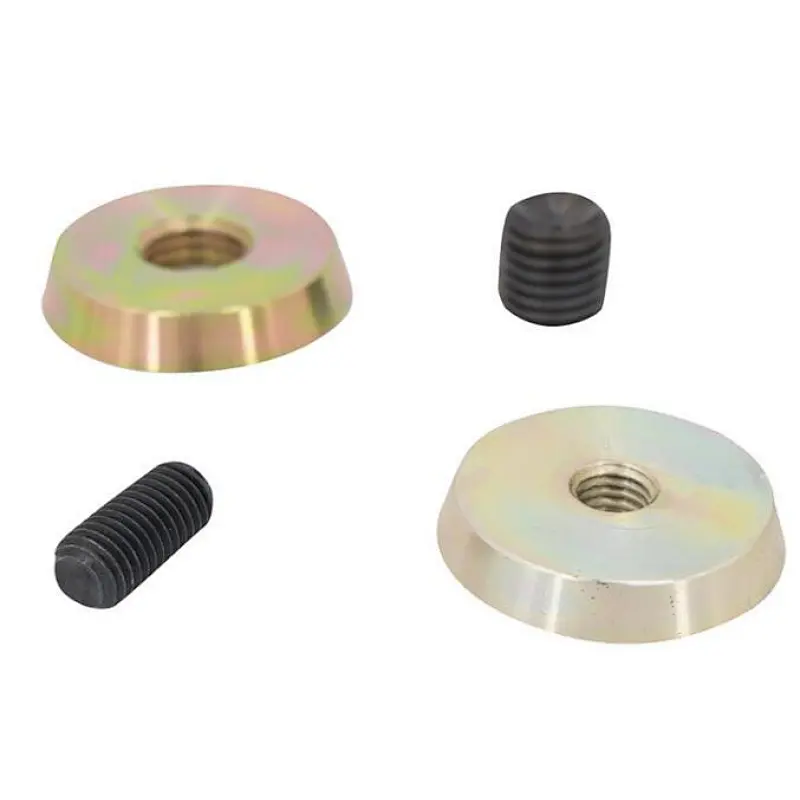

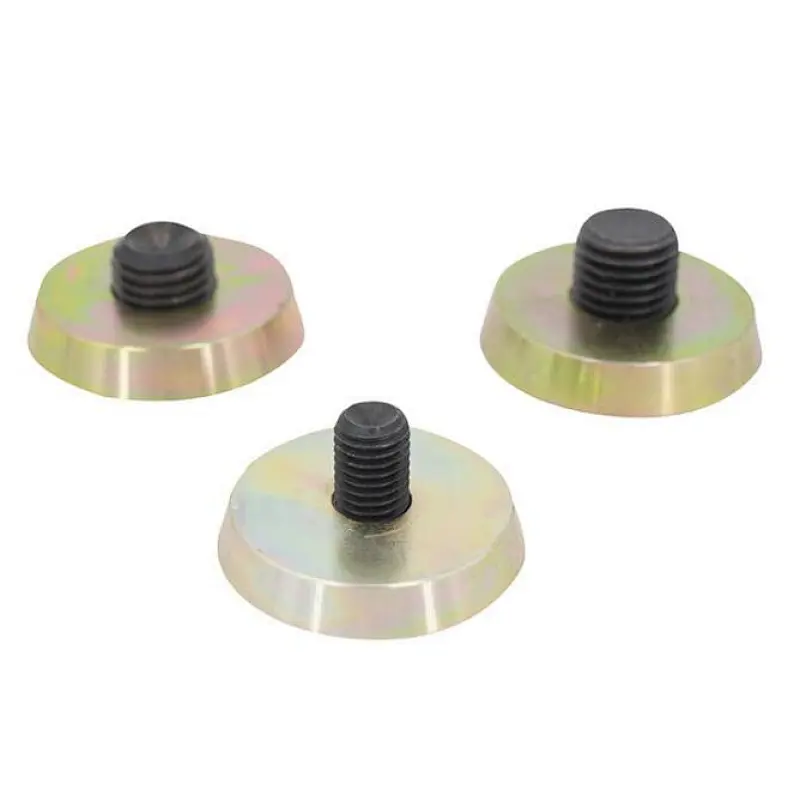

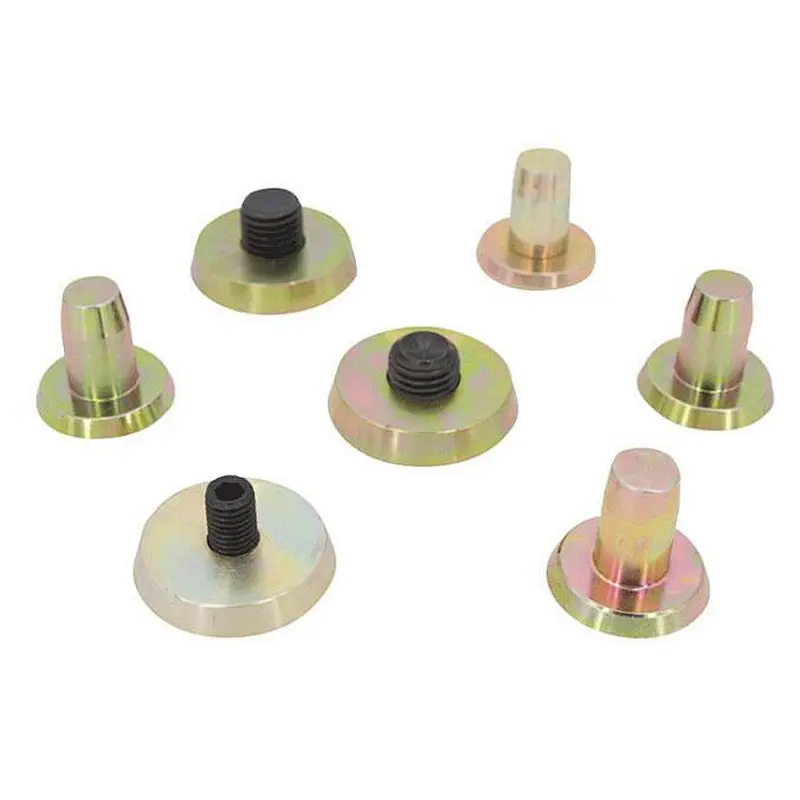

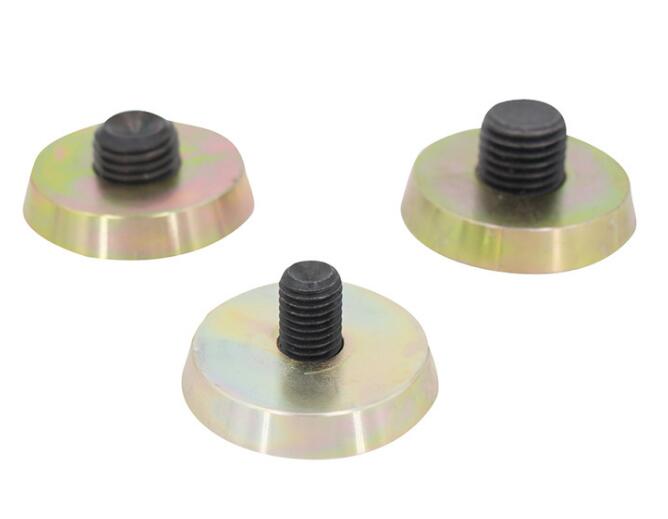

Precast magnet

As one kind of Precast concrete magnet or Precast magnets , Precast concrete inset magnet consists of strong NdFeB magnets， a screw  and a steel casing.The insert magnet with
standard  screw can fix different type of sockets to hold the pipeline and trough when the
PC components production is poured by concrete .
Precast concrete fixing magnet is used in precast concrete framework construction to allow an
easy and convinent fixing operation
More Products please find on precast magnet


Features:

1. Coating:zn
2. Material: strong NdFeB magnets
3. Adhesive force:60KG
4.Production time:40 Days
5.MOQ: 5pc
6.Packing: standard brown carton/wood case for air or sea shipment
7.Payment term: T/T
8.Loading Port:Ning Bo/Shang Hai

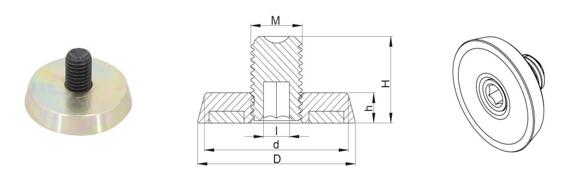

Precast concrete inset magnet model list

Model	D	d (mm)	H	h (mm)	I	M	Weight (g)	Breakaway (Kg)
	(mm)		(mm)		(mm)
LNR50-M10	50	45	30	8	5	M10	130	60
LNR50-M12	50	45	30	8	6	M12	130	60
LNR50-M14	50	45	30	8	6	M14	135	60
LNR50-M16	50	45	30	8	8	M16	135	60
LNR54-M18	54	49	30	10	10	M18	165	60
LNR54-M20	54	49	30	10	10	M20	165	60
LNR54-M24	54	49	30	10	12	M24	170	60
