neodymium rubber magnet

Rubber coated mounting magnets , also names rubber covered magnets,rubber coated magnetic hooks
which consists of a rubber cover and neodymium magnets. They are suitable for fixing objects like advertising displays
or attachments to cars  body work as well as for retail applications such as mounting signs or  banners.

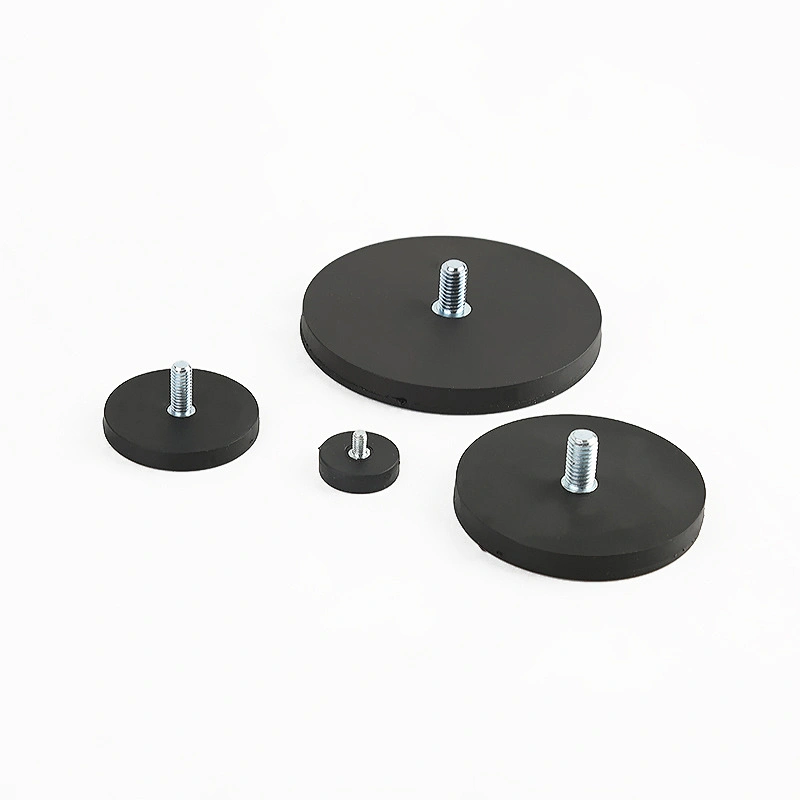

Rubber covered magnets with external threaded stud  is good for attaching components with
female thread. A male threaded stand on the no-magnetic face of pot magnets, can be
fixed on flat surface by female thread, then attrach the ferromagnetic object at the magnetic side.
The rubber coating  ensures a good protection in humid conditions.
 More Products please find on  neodymium rubber magnet




Features

1. Coating:rubber
2. Material: NdFeB/ Ferrite, etc.
3. Custom made service is available
4.Production time:40 Days
5.MOQ: 50pc
6.Packing: standard brown carton/wood case for air or sea shipment
7.Process: Half finished block of Sintered Neodymiun magnets > > Grinding > Cutting >
Coating > Checking > assemblying >Packing
8.Payment term: T/T
9.Loading Port:Ning Bo/Shang Hai









Rubber covered magnets STC series

Model	D	h (mm)	H	M	Weight (g)	Breakaway (Kg)
	(mm)		(mm)
STC22	22	6	12.5	M4	14	5
STC34	34	8	16.5	M4	25	6
STC43	43	6	21	M6	32	8
STC66	66	8	23	M8	107	20
STC88	88	8.5	24.5	M8	193	42
