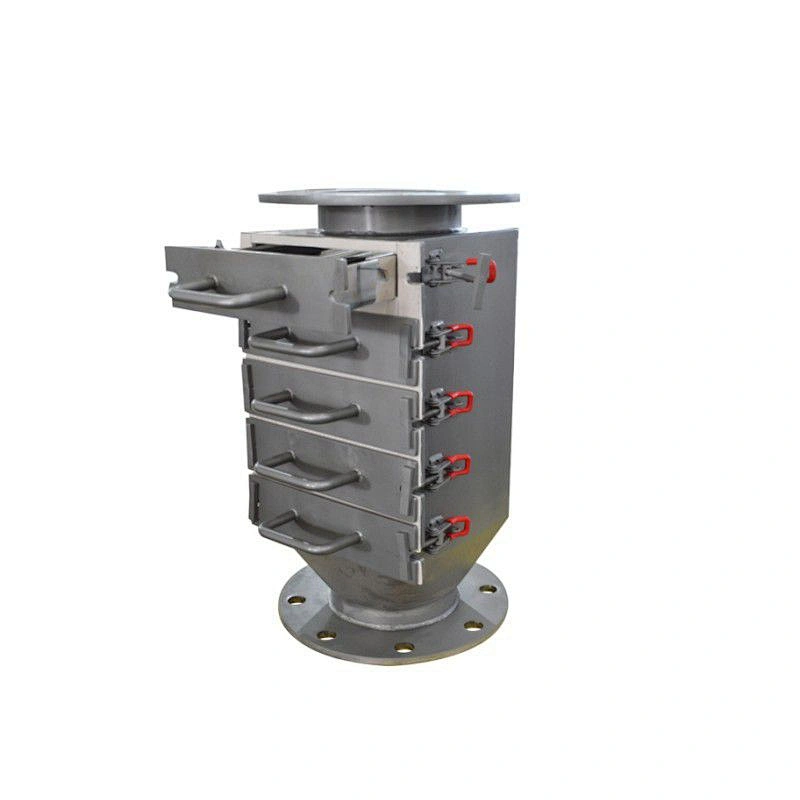

Housed grid magnetic separator manufacturer

Neodymium Housed grid magnetic separator

Model NO.: SWs-NR/SWd-NR

Product Description
Application Description

Features:

1.The maximum magnetic strength can be reach to 13000GS for normal (N Style) magnetic drawer
and 9000GS for easy cleaning (E Style).
2.Square or round flange is available .
3.Standard working temperature≤80ºC, and maximum working temperature can be reach to 350ºC
4.The number of inside magnetic grid layers is up to customers'requirements.
5.304 or 316L stainless steel housed is available .

Housed grid magnetic separator (round flange) List
MODEL NO.	Dimension(mm)				Weight(KG)
MODEL NO.	D	H	A	B	Weight(KG)
SWd-NR-150	159	286	208	205	20
SWd-NR-200	219	286	258	255	28
SWd-NR-250	273	286	308	305	33
SWd-NR-300	325	286	358	355	43
SWs-NR-150	159	216	208	205	16
SWs-NR-200	219	216	258	255	20
SWs-NR-250	273	216	308	305	24
SWs-NR-300	325	216	358	355	31

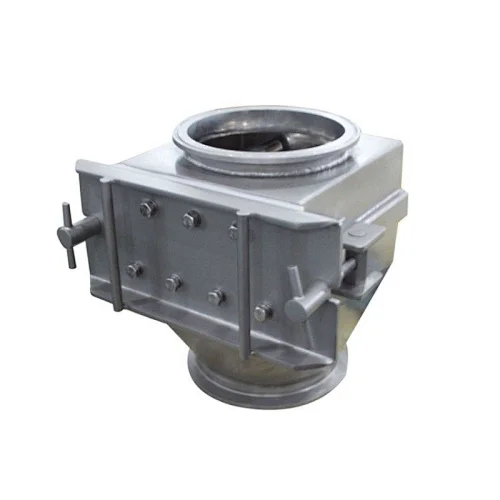

Housed grid magnetic separator (square flange) List
MODEL NO	Dimension(mm)			Weight(KG)
MODEL NO	H	A	B	Weight(KG)
SWd-NS-2020	270	208	205	16.5
SWd-NS-2525	270	258	255	25.5
SWd-NS-3030	270	308	305	32.5
SWd-NS-3535	270	358	355	39
SWd-NS-4040	270	408	405	50
SWs-NS-2020	200	208	205	12.5
SWs-NS-2525	200	258	255	19.5
SWs-NS-3030	200	308	305	23.5
SWs-NS-3535	200	358	355	27
SWs-NS-4040	200	408	405	35.5

Housed grid magnetic separators are widely used in fields of ceramics, chemicals, pharmacy, food, plastic, rubber, dyestuff, mining and environmental protection, which designed for removing Ferrum scraps from dry powder, strip or graininess materials such as sugar, grain, tea etc.

Send Message

Related Products

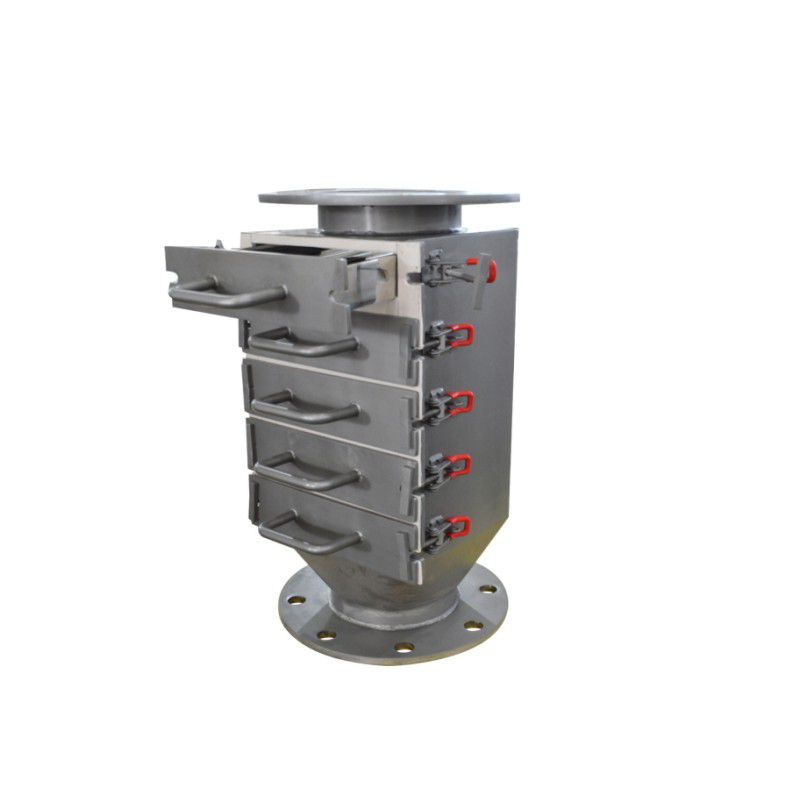

Magnetic Drawer Separation

Model NO. SWd-NR/ SWs-NR

Easy-cleaning Magnetic Drawer manufacturer

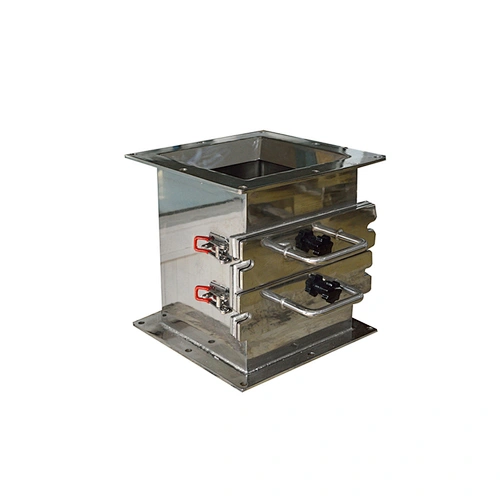

Easy-cleaning Magnetic Drawer Separator
