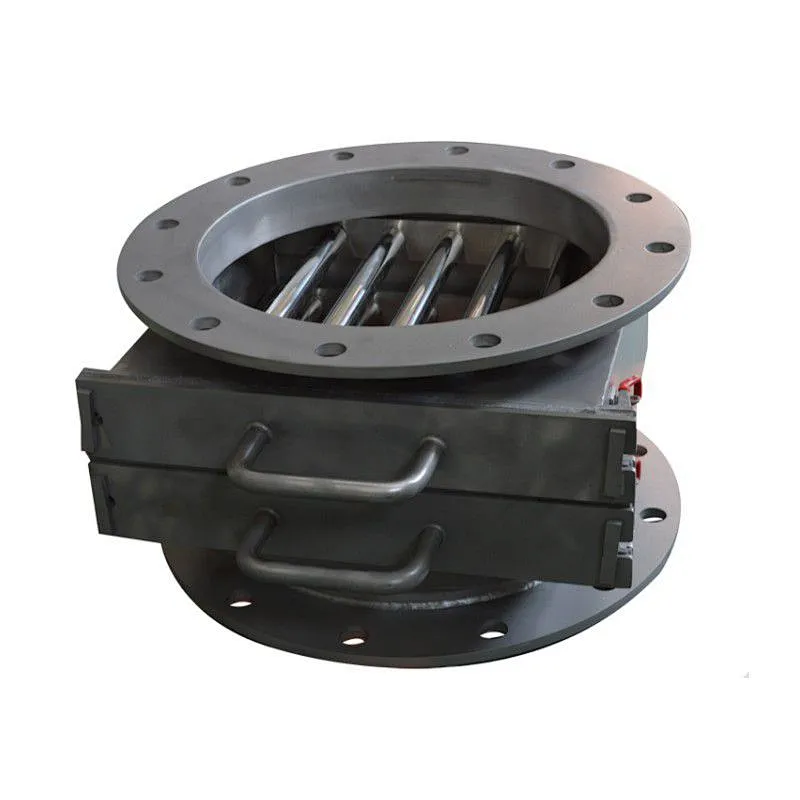

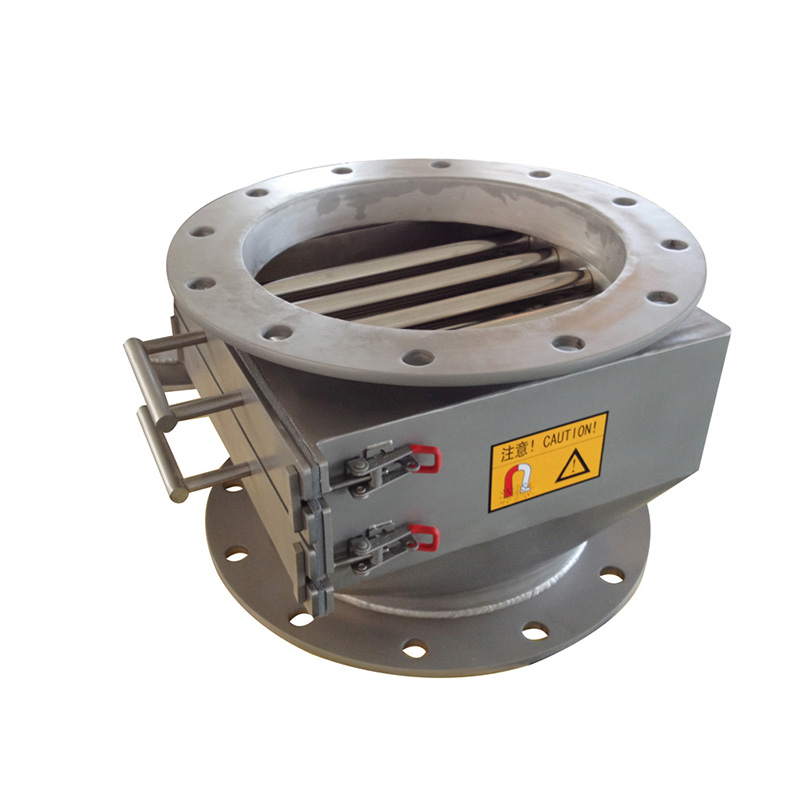

Magnetic drawer separations also name housed grid magnetic separation, drawer magnet, magnetic
drawer which consist of a stainless steel casing and inside grid magnet .Nomally the magnetic drawer
separations are installed throughout the facility line which are applied for removing ferrous contaminations
from power or granular materilas .Small irons will be attracted by the inside grid magnets which are
secured by locking clamps and silicon gasket.
Cleaning Procedure
1.Stop product flow
2.Release the locking clamps
3.Pull the grid magnet system out from the housing.Use air house
low wash jet/tap/cloth to blow off or wipe down the magnetic tube until
they are clean
4.Place the grid magnet system back into the housing
5.Re-lock the lokcing nuts
6.Begin product flow
drawer which consist of a stainless steel casing and inside grid magnet .Nomally the magnetic drawer
separations are installed throughout the facility line which are applied for removing ferrous contaminations
from power or granular materilas .Small irons will be attracted by the inside grid magnets which are
secured by locking clamps and silicon gasket.
Cleaning Procedure
1.Stop product flow
2.Release the locking clamps
3.Pull the grid magnet system out from the housing.Use air house
low wash jet/tap/cloth to blow off or wipe down the magnetic tube until
they are clean
4.Place the grid magnet system back into the housing
5.Re-lock the lokcing nuts
6.Begin product flow

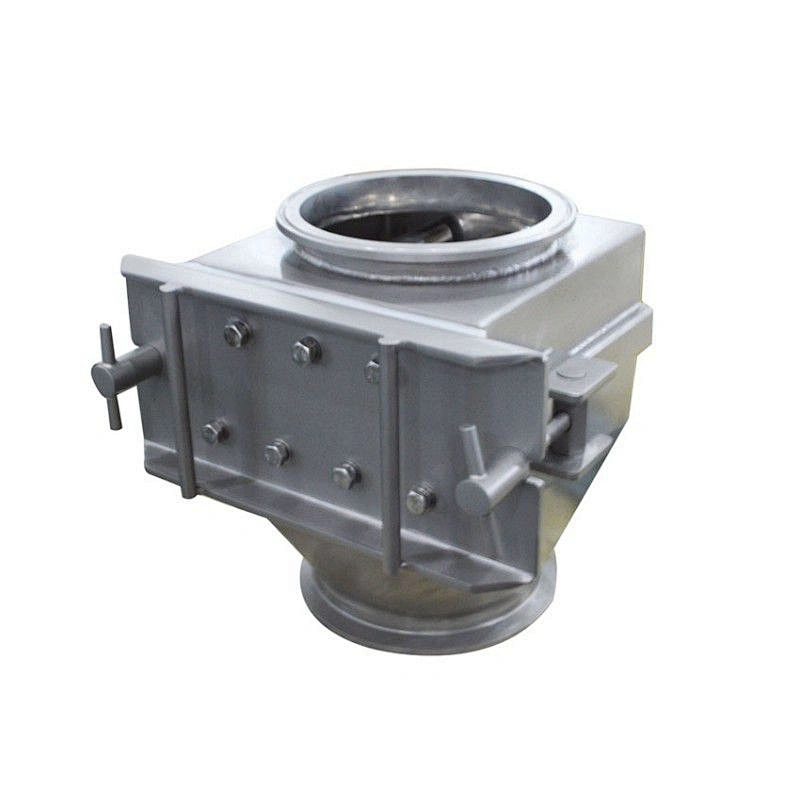

Feartures:
1.The maximum magnetic strength can reach to 13000GS for normal (N Style)
magnetic drawer and 9000GS for easy cleaning (E Style).
2.Square or round flange is available
3.Standard working temperature≤80ºC, and maximum working temperature can be up to 350ºC
4.The number of inside magnetic grid layers is up to customers'requirements.
5.304 or 316L stainless steel is available .

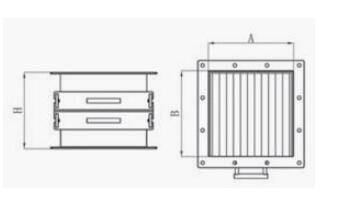

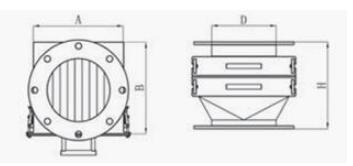

| MODEL NO. | Dimension(mm) | Weight(KG) | |||
| D | H | A | B | ||
| SWd-NR-150 | 159 | 286 | 208 | 205 | 20 |
| SWd-NR-200 | 219 | 286 | 258 | 255 | 28 |
| SWd-NR-250 | 273 | 286 | 308 | 305 | 33 |
| SWd-NR-300 | 325 | 286 | 358 | 355 | 43 |
| SWs-NR-150 | 159 | 216 | 208 | 205 | 16 |
| SWs-NR-200 | 219 | 216 | 258 | 255 | 20 |
| SWs-NR-250 | 273 | 216 | 308 | 305 | 24 |
| SWs-NR-300 | 325 | 216 | 358 | 355 | 31 |
| MODEL NO | Dimension(mm) | Weight(KG) | ||
| H | A | B | ||
| SWd-NS-2020 | 270 | 208 | 205 | 16.5 |
| SWd-NS-2525 | 270 | 258 | 255 | 25.5 |
| SWd-NS-3030 | 270 | 308 | 305 | 32.5 |
| SWd-NS-3535 | 270 | 358 | 355 | 39 |
| SWd-NS-4040 | 270 | 408 | 405 | 50 |
| SWs-NS-2020 | 200 | 208 | 205 | 12.5 |
| SWs-NS-2525 | 200 | 258 | 255 | 19.5 |
| SWs-NS-3030 | 200 | 308 | 305 | 23.5 |
| SWs-NS-3535 | 200 | 358 | 355 | 27 |
| SWs-NS-4040 | 200 | 408 | 405 | 35.5 |
