Neodymium Holder Magnet

Model NO.: SWND

Product Description
Application Description

Neodymium Holder Magnet with femal thread also names magnetic holders, cup magnets,round base magnet

hooks,hook magnets which consist of a steel case and rare earth magnet and is an ideal option for door, ceiling
and window dressing.They have a feature of an internal threaded stud in the center of the magnet, which blots or
screws is easy to be used to hold the magnet

More Products please find on Neodymium Holder Magnet

Feartures:

1.simples structure is properly designed with maximized magnetic force to save cost;
2. Magnets can be ndfeb,SmCo,AlNico Ferrite,etc;
3. Coating : Zn,Ni Cr, Rubber Cover , stainless shell cover by welding , painting;
4. Custom made is available .
5.Sample : available
6.MOQ:50PC
7.Lead Time: about 4-5 weeks (according to the quantity);
8.Packing: Packed by carton or wood case for standard sea shipment or
standard shielding packing for air shipment;
9. Delivery Port: Ningbo or Shanghai

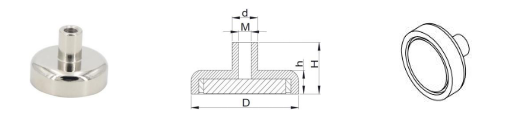

SWND series　round base magnetic hooks with thread bush

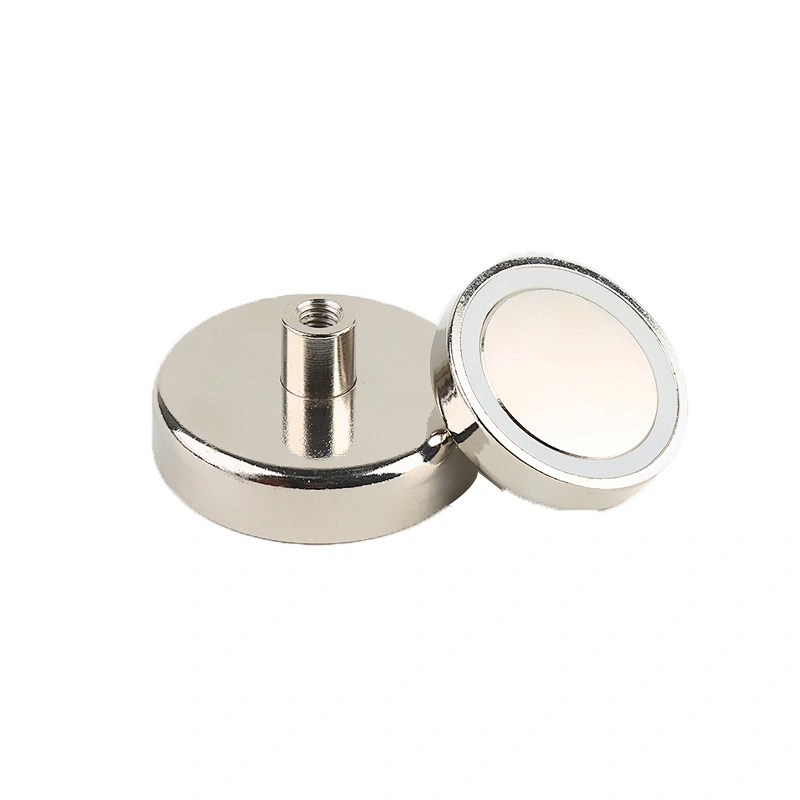

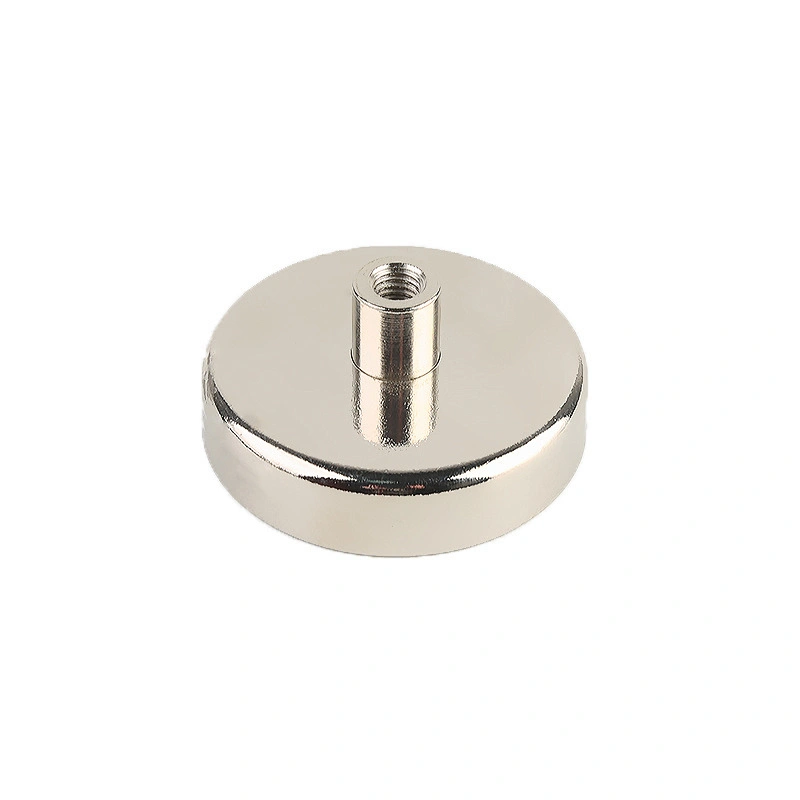

Neodymium Holder Magnet

Model					M		Magnetic force (kg)
	D	d	H	h		Weight
	(mm)	(mm)	(mm)	(mm)		(g)
SWND10	10	6	12.5	5	M3	4	2
SWND12	12	6	12.5	5	M3	5	4
SWND16	16	6.5	12.6	5	M4	9	8
SWND20	20	6.5	14	7	M4	17	12
SWND25	25	7.5	17	8	M5	31	25
SWND32	32	10	18	8	M6	52	34
SWND36	36	10	18	8	M6	60	50
SWND42	42	10	18	8.6	M6	95	72
SWND48	48	12	24	11	M8	160	81
SWND55	55	12	28	12	M8	230	95
SWND60	60	12	28	15	M8	340	160
SWND70	70	17	34	17	M10	520	200
SWND75	75	17	35	18	M10	635	250
SWND80	80	17	35	18	M10	715	300
SWND90	90	17	35	18	M10	910	360
SWND120	120	22	40	18	M12	1600	480

Neodymium Holder Magnets are used for mounting, lifting, holding, fixing and transferring objects which is useful in the field of construction, engineering, automotive, etc or in the place of office, family, warehouse etc.
