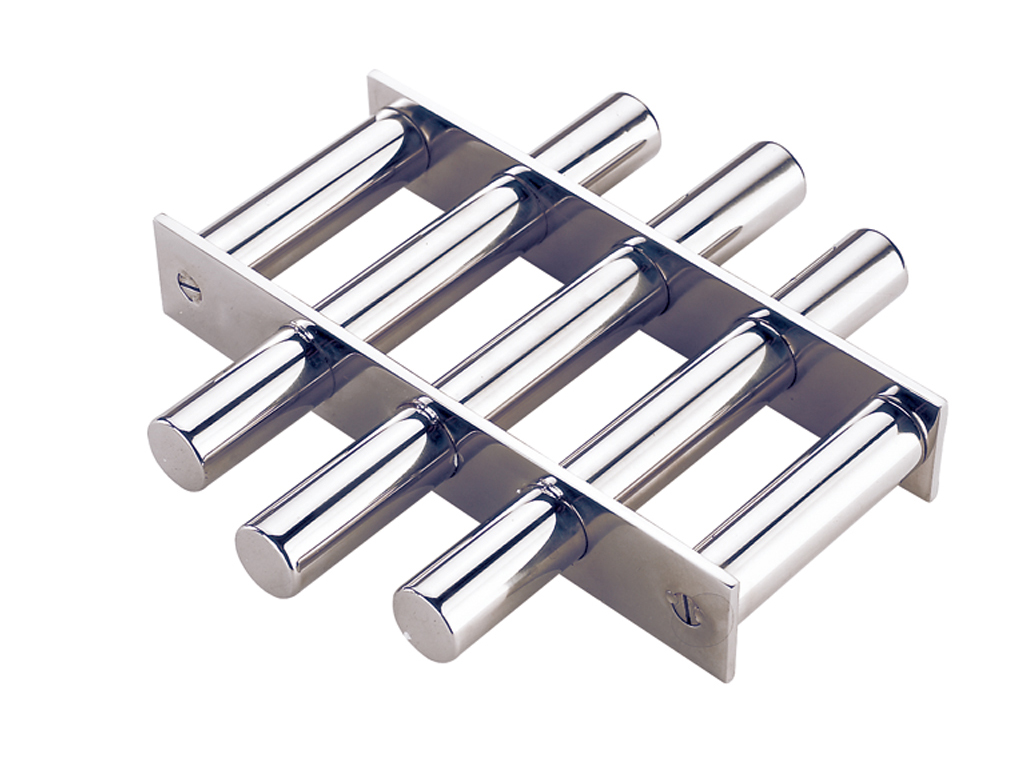

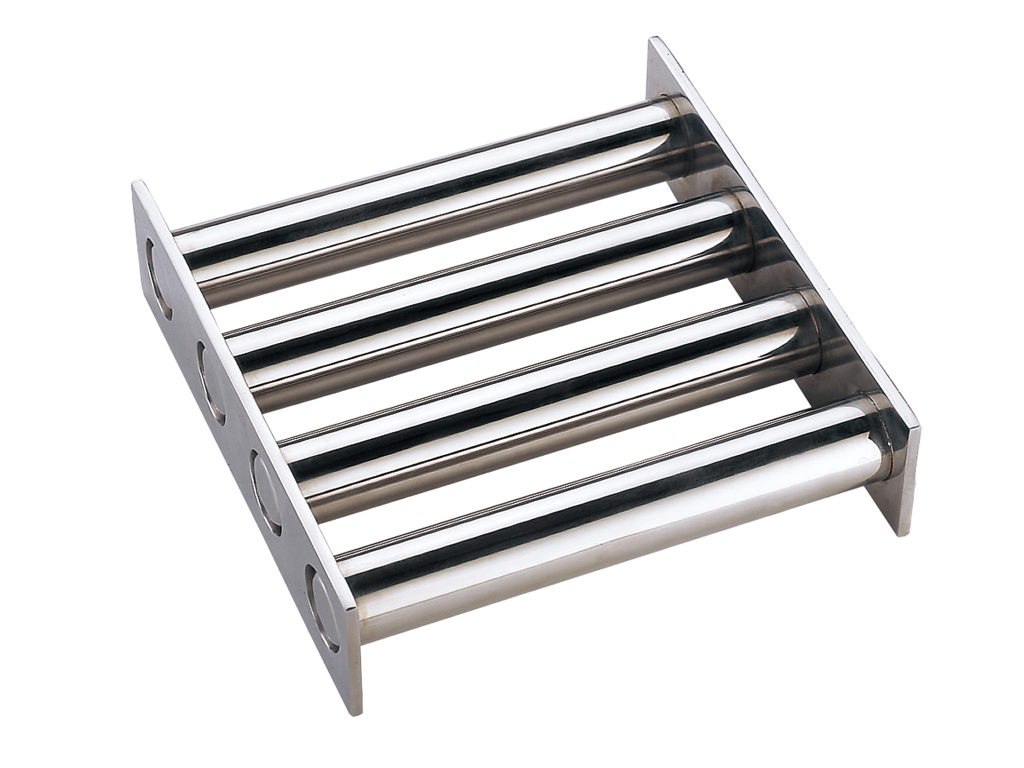

Neodymium grate magnet or magnetic grate provide a properly configured,high density magnetic strength to catch the ferrous metal,fines ,fragments .
Feartures:
Feartures:
1.304 or 316L stainless steel is available for housing
2.Standard magnetic grates are assembled with stainless steel frame and magnetic bars with a length of 25 mm diameter.
3.Standard working temperature≤80ºC, and maximum working temperature can reach 350ºC as required.
4. Normal (N style), Easy-cleaning (E style) are available.
4.Food grade welding and polishing are available.
| MODEL NO | Dimension(mm) | Bars | Weight(Kg) | ||
| A | B | H | |||
| SWMG10/10S | 100 | 100 | 40 | 2 | 1 |
| SWMG15/15S | 150 | 150 | 40 | 3 | 2.2 |
| SWMG20/20S | 200 | 200 | 40 | 4 | 3.7 |
| SWMG25/25S | 250 | 250 | 40 | 5 | 5.5 |
| SWMG30/30S | 300 | 300 | 40 | 6 | 8 |
| SWMG35/35S | 350 | 350 | 40 | 7 | 10 |
| SWMG40/40S | 400 | 400 | 40 | 8 | 13.5 |
| SWMG45/45S | 450 | 450 | 40 | 9 | 17 |
| SWMG50/50S | 500 | 500 | 40 | 10 | 20.5 |
| MODEL NO | Dia | H | Bars | Weight(Kg) |
| SWMG-R100 | 100 | 40 | 2 | 0.9 |
| SWMG-R150 | 150 | 40 | 3 | 1.5 |
| SWMG-R200 | 200 | 40 | 4 | 2.5 |
| SWMG-R250 | 250 | 40 | 5 | 3.7 |
| SWMG-R300 | 300 | 40 | 6 | 5.5 |
| SWMG-R350 | 350 | 40 | 7 | 7.5 |
| SWMG-R400 | 400 | 40 | 8 | 10 |
| SWMG-R450 | 450 | 40 | 9 | 12.3 |
| SWMG-R500 | 500 | 40 | 10 | 15.5 |
