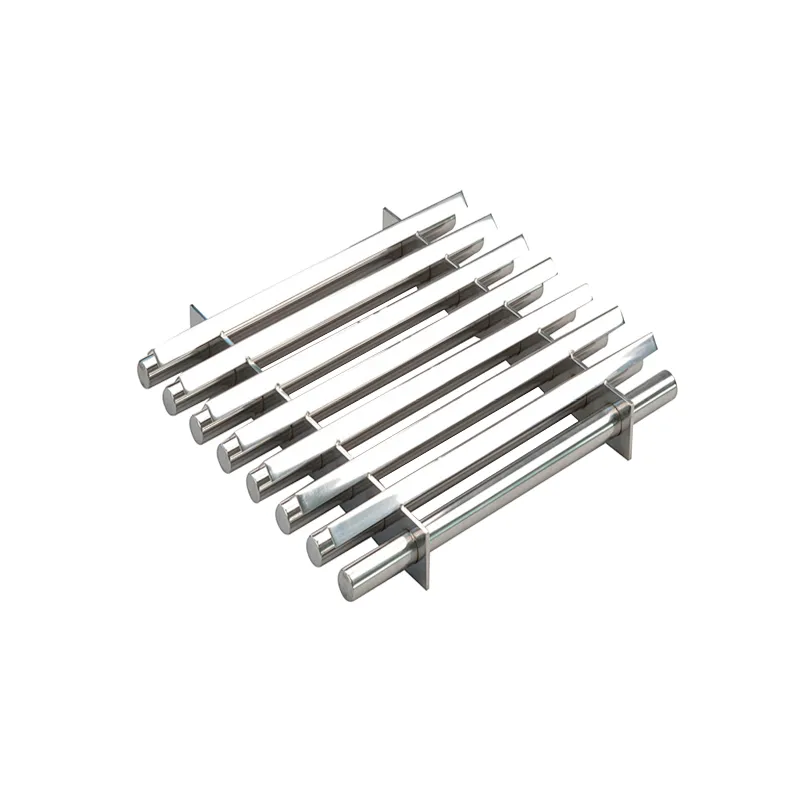

1.Housing:304 or 316L stainless steel 2.Standard magnetic grates are assembled with stainless steel frame and magnetic bars with 25 mm diameter. 3.The surface of the frame and magnetic bar can be fine polished and meet the standard of food or pharmacy industry. 4.Standard working temperature≤80ºC, and maximum working temperature can reach 350ºC as required. 5. Normal (N style), Easy-cleaning (E style), grate with angle baffles or rod are available. 6.Coating Option:teflon,tungsten carbide 7.Magnetic Strength is range from 2000GS to 12,000GS
MODEL NO
Dia
H
Bars
Weight(Kg)
SWMG-R100
100
40
2
0.9
SWMG-R150
150
40
3
1.5
SWMG-R200
200
40
4
2.5
SWMG-R250
250
40
5
3.7
SWMG-R300
300
40
6
5.5
SWMG-R350
350
40
7
7.5
SWMG-R400
400
40
8
10
SWMG-R450
450
40
9
12.3
SWMG-R500
500
40
10
15.5
MODEL NO
Dimension(mm)
Bars
Weight(Kg)
A
B
H
SWMG10/10S
100
100
40
2
1
SWMG15/15S
150
150
40
3
2.2
SWMG20/20S
200
200
40
4
3.7
SWMG25/25S
250
250
40
5
5.5
SWMG30/30S
300
300
40
6
8
SWMG35/35S
350
350
40
7
10
SWMG40/40S
400
400
40
8
13.5
SWMG45/45S
450
450
40
9
17
SWMG50/50S
500
500
40
10
20.5

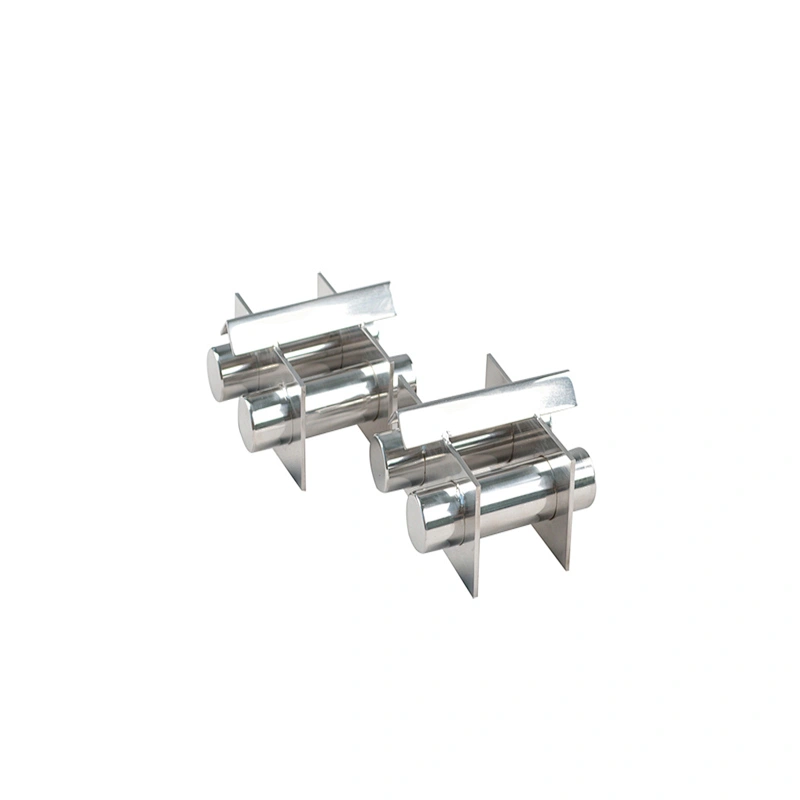

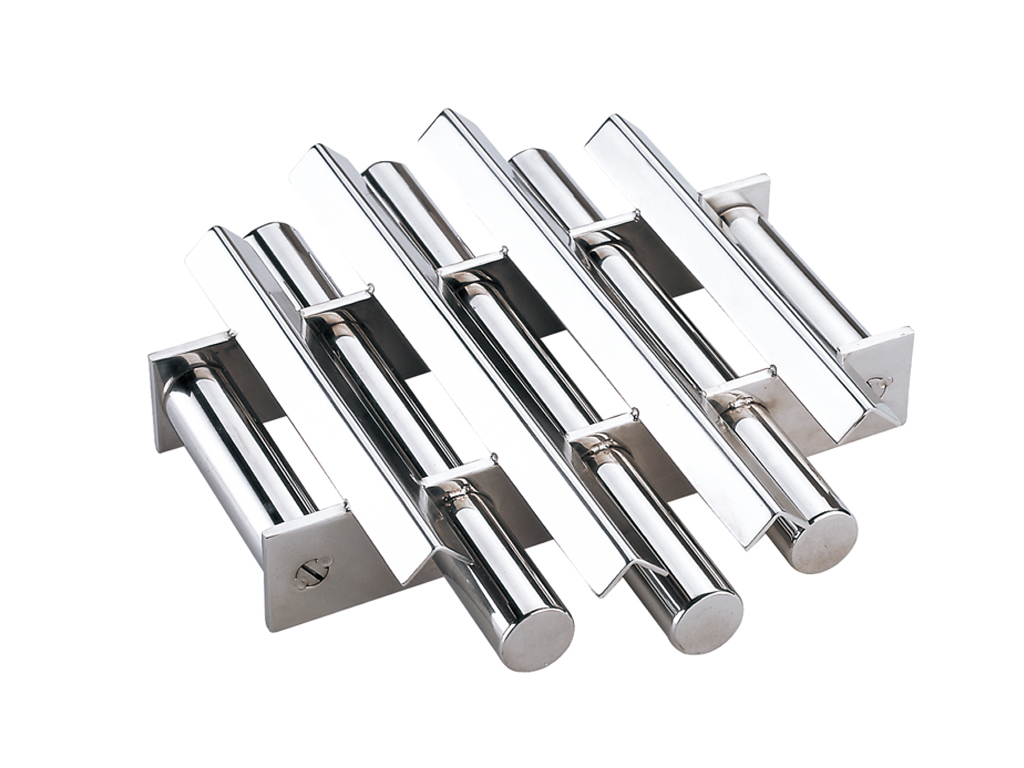

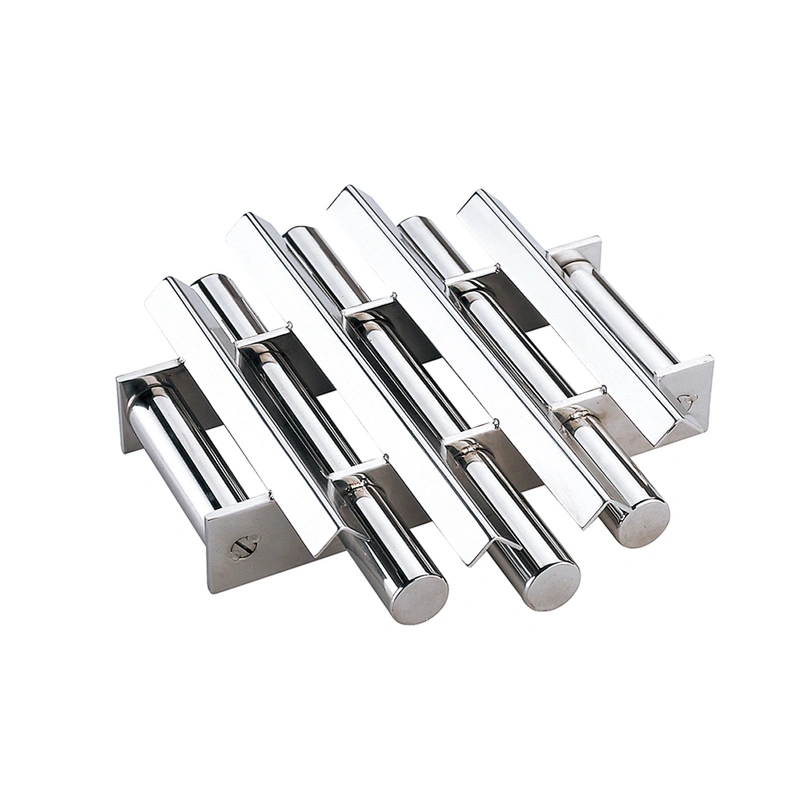

Neodymium Grate Magnet with Baffle is applied for removing Ferrum contamination from store holders, drawers and hoppers.
Please be aware that these grates are designed for low-abrasion materials.
Neodymium Grate Magnet with Baffle is made from stainless steel and rare earth magnets which is an ideal magnetic system to remove ferrous contamination from materials.
Neodymium Grate Magnet with Baffle for Hopper
SWMG-B
0.00~0.00
Neodymium Grate Magnet with Baffle is made from stainless steel and rare earth magnets which is an ideal magnetic system to remove ferrous contamination from materials.
