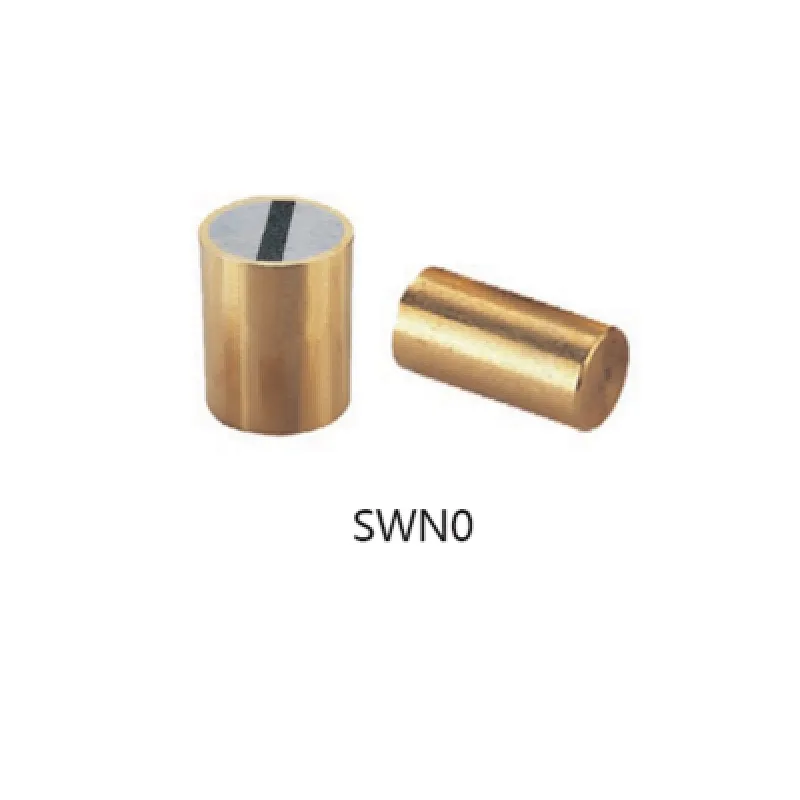

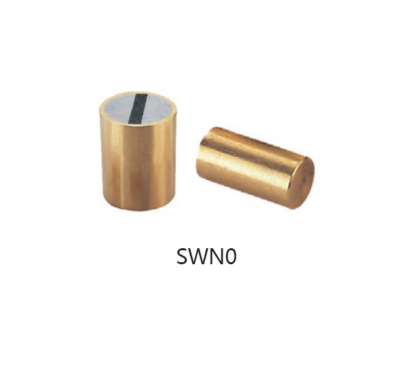

Neodymium Deep Pot Magnet also names NdFeB deep pot magnet, neodymium cylinder pot magnet which consists of
a copper-zinc alloy or brass casing and neodymium magnets.There are two steel pole pieces with a magnet
between the steel poles.Neodymium Deep Pot Magnet is popular in the application of clamping which max
working temparature can be up to 80 ℃
More Products please find onNeodymium Deep Pot Magnet
Features
1.Casing: copper-zinc alloy or brass
2.Holding force:1.7-142N
3.Magnet materials : Ndfeb magnets
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:40days
8.Packing:standard brown carton/wood case for sea shipment
or air shielding shipment
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

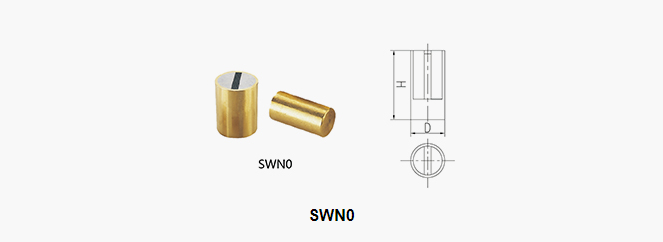

Neodymium Deep Pot Magnet data sheet
| MODEL NO | Dimensions(mm) | Weight(g) | Force(N) | |
| D | H | |||
| SWN0-6 | 6 | 20 | 4.5 | 10 |
| SWN0-8 | 8 | 20 | 8 | 25 |
| SWN0-10 | 10 | 20 | 12.5 | 45 |
| SWN0-13 | 13 | 20 | 20 | 70 |
| SWN0-16 | 16 | 20 | 32 | 150 |
| SWN0-20 | 20 | 25 | 60 | 280 |
| SWN0-25 | 25 | 35 | 135 | 450 |
| SWN0-32 | 32 | 40 | 250 | 700 |
