Model NO.
SWFL-E

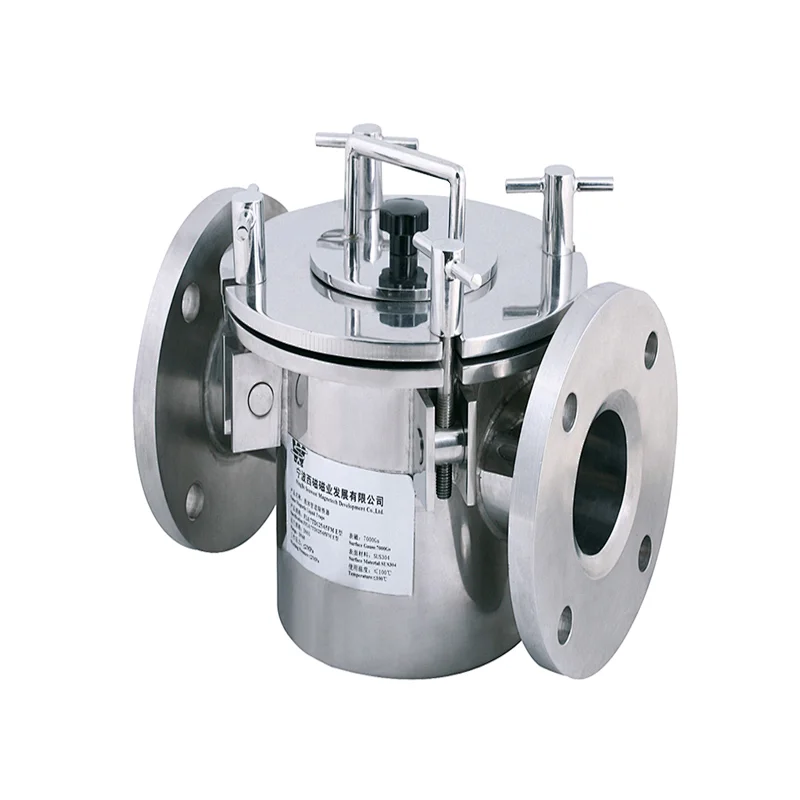

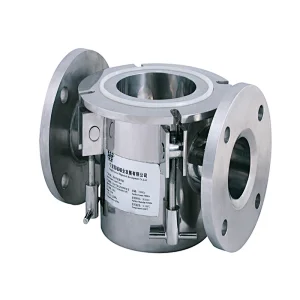

Magnetic trap is also named  Magnetic liquid trap,magnetic liquid strainer ,magnetic liquid filter
which are designed for removing ferrum contamination form liquid or semi-liquid materials to keep
materials purity and protect the downstream equipments.

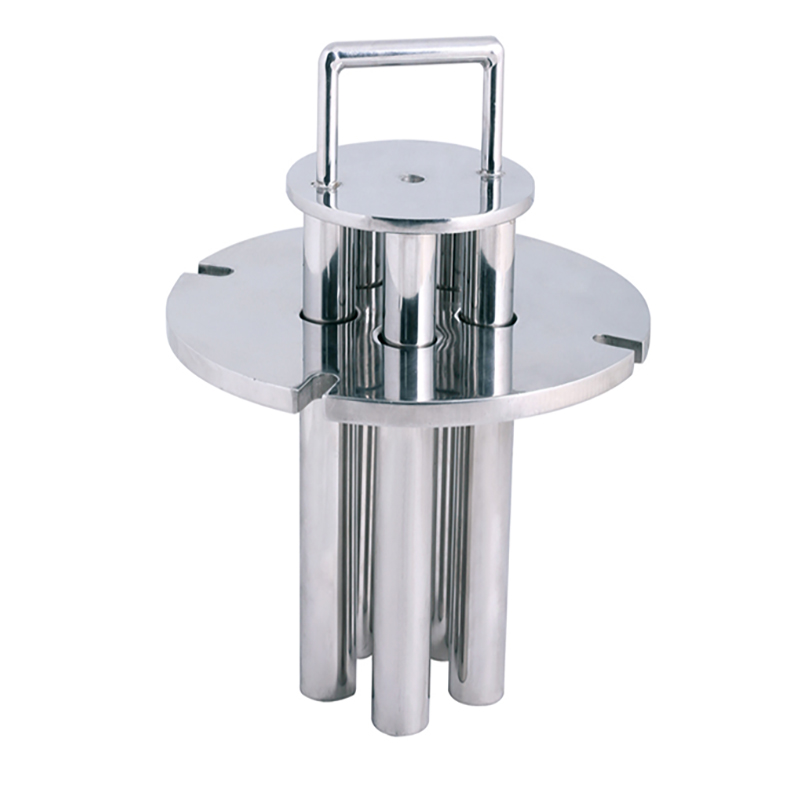

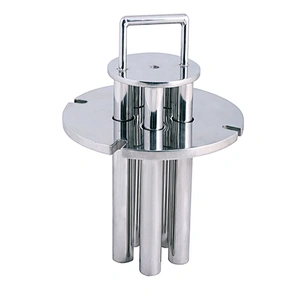

Magnetic trap with easy cleaning fuction is realised by pulling inside magnetic cores our from stainless
steel sleeve .Small irons that attached on the sleeve will fall off automaticlly once the magnets are pulled out
from the sleeve.
More Products please find on magnetic trap



Feartures:

1. Easy-cleaning style
2. The maximum magnetic strength can reach to 13000GS (rated on the inside magnet) , 9000GS(rated on the sleeve)
3. Standard working temperature≤80ºC, and maximum working temperature can reach to 350ºC
4. Easy installation, separation and cleaning through ferrule, bolt plate, flange or uneven head etc.
5. 304 or 316L stainless steel are available
6. Ideal designed magnetic configuration ensures maximum magnetic effect without liquid flow impediment.
7. Special design for high pressure or flow rate is available
8.Coating: PTFE/Tungsten carbide
9.Magnet materials : NdFeb/ferrite
10.Custom made :available
11.Sample : available
12.MOQ:1PC
13.Lead time:35days
14.Packing:standard wood case
15.Payment term: T/T
16.Loading Port:Ning Bo/Shang Hai

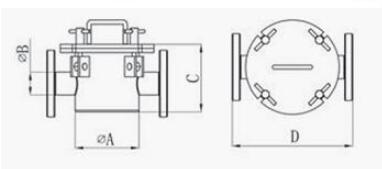

                        Easycleaning magnetic trap data sheet
MODEL NO
Dimension(mm)
No. of rods
Weight(Kg)
ΦA
ΦB
C
D
SWFL150/25
159
32
167
300
5
12
SWFL150/32
159
38
167
300
5
17
SWFL150/40
159
45
167
300
5
18
SWFL150/50
159
57
167
300
5
21
SWFL150/65
159
76
167
300
5
23
SWFL200/50
200
57
206
350
7
27
SWFL200/65
200
76
206
350
7
29
SWFL200/80
200
89
206
350
7
30
SWFL200/100
200
108
228
350
7
33
SWFL250/80
250
89
250
400
9
40
SWFL250/100
250
108
250
400
9
42
SWFL250/125
250
138
250
400
9
44
SWFL250/150
250
159
300
400
9
50
SWFL300/125
300
138
300
450
9
58
SWFL300/150
300
159
300
450
9
62
SWFL300/200
300
219
346
500
9
72
Easy cleaning magnetic liquid trap is an ideal magnetic filter for removing super fine ferrous contamination from materials of liquid,Semi-liquid lines or air-conveying lines
