Magnetic strainer filter is also named Magnetic liquid trap,magnetic liquid strainer, magnetic liquid filter which are designed for removing
ferrum contamination form liquid or semi-liquid materials to keep materials purity and protect the downstream equipments.

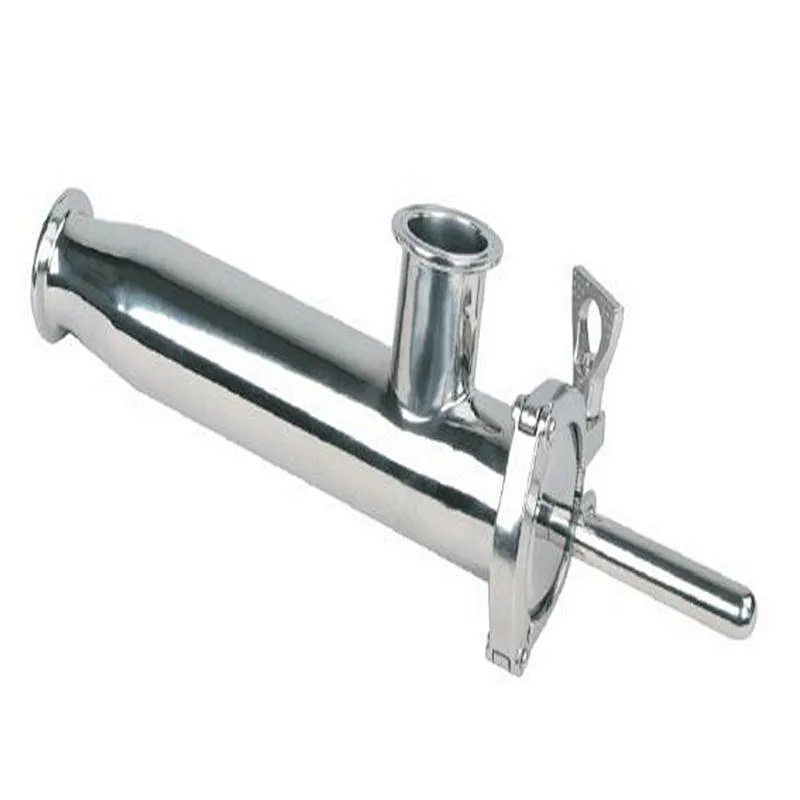

Magnetic Liquid Filter with Quick Interface Connector (tri-clamp) and rubber washer is easy for operation and keeping a good tightness
which is a good solution for industries of beverages,jams,chemicals etc.
More products please find on magnetic strainer filter
Feartures:
1. Quick Interface Connector
2. The maximum magnetic strength can reach to 13000GS
3. Standard working temperature≤80ºC, and maximum working temperature can reach to 350ºC
4. Easy installation, separation and cleaning through ferrule, bolt plate, flange or uneven head etc.
5. 304 or 316L stainless steel are available
6. Ideal designed magnetic configuration ensures maximum magnetic effect without liquid flow impediment.
7. Special design for high pressure or flow rate is available
8.Coating: PTFE/Tungsten carbide
9.Magnet materials : NdFeb/ferrite
10.Custom made :available
11.Sample : available
12.MOQ:1PC
13.Lead time:35days
14.Packing:standard wood case
15.Payment term: T/T
16.Loading Port:Ning Bo/Shang Hai

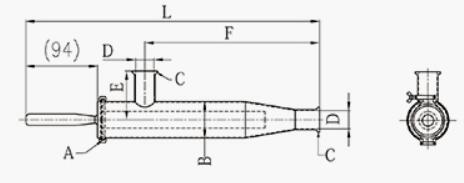

Magnetic strainer filter data sheet
| MODEL NO | Dimension(mm) | ||||||
| A | ΦB | C | ΦD | E | F | L | |
| SW-E10 | 2S | 47.8 | 1S | 23 | 55 | 200 | 359 |
| SW-E15 | 2S | 47.8 | 1.5S | 35.7 | 70 | 200 | 359 |
| SW-E20 | 2.5S | 59.5 | 2S | 47.8 | 82 | 250 | 416 |
