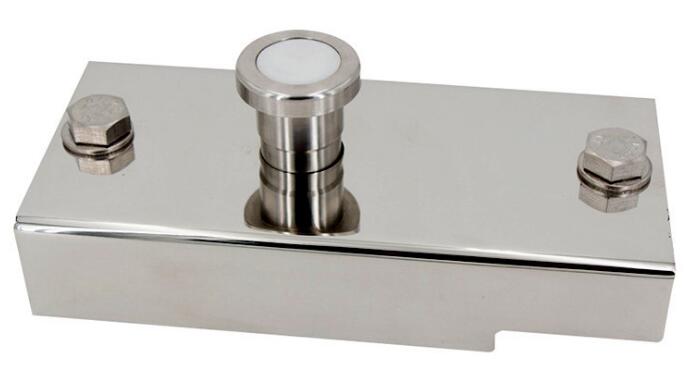

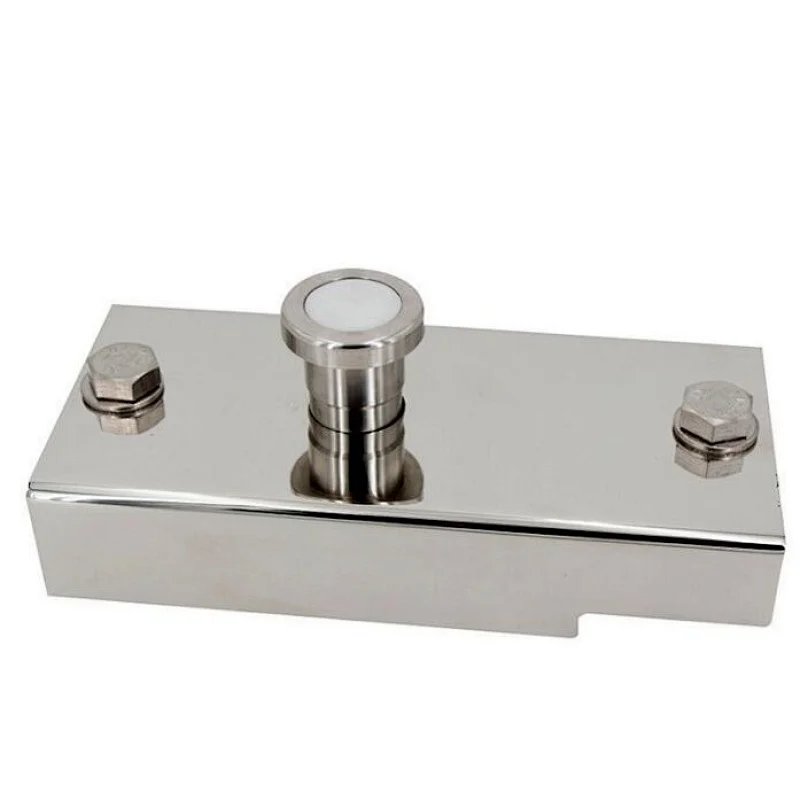

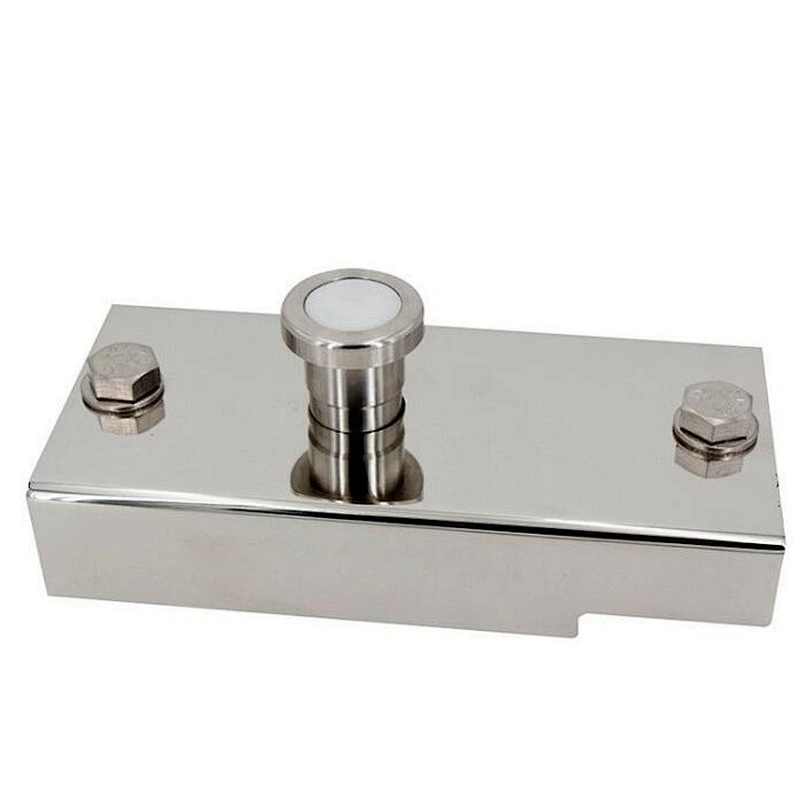

Magnetic shuttering system

Magnetic shuttering system also names precast concrete magnets,precast concrete shuttering magnet which provides
economic and efficient frame solution for precast concrete industry .It consists of strong switchable neodymium
magnet array and a steel casing which forms a designed magnetic circuit.The magnetic force is activated by pressing
the top bottom to fasten the framework to the steel table tightly.

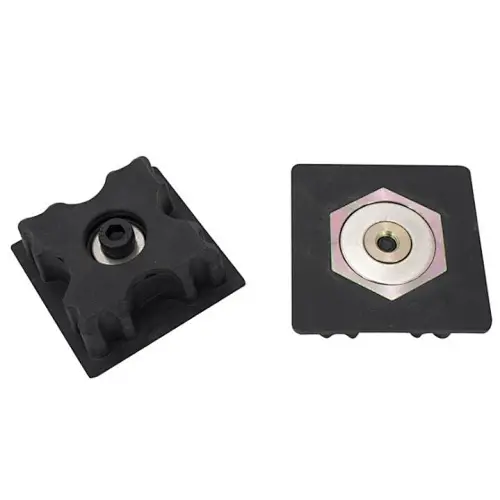

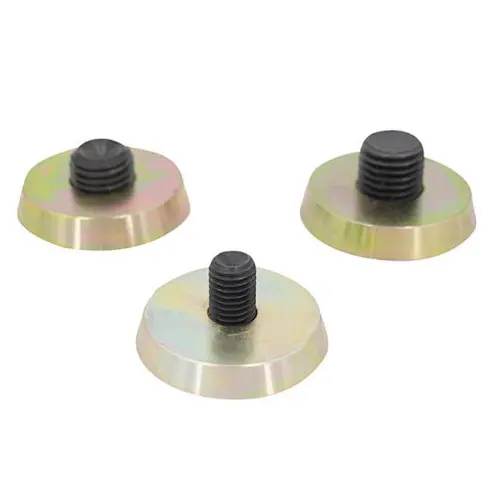

Precast concrete magnet is suitable for all kinds of precast concrete framework construction not only for the steel shuttering but also for the wood shuttering.Two top holes can be equipped with adapters to allow more options for use.  2100kg shuttering magnet and 2400kg shuttering magnets both are available.

       magnet working circuit

 More Products please find on shuttering magnet



Features:

1. Coating:Ni,electroplating
2. Material: strong NdFeB magnets
3. Adhesive force:450-2400KG
4.Production time:40 Days
5.MOQ: 5pc
6.Packing: standard brown carton/wood case for air or sea shipment
7.Payment term: T/T
8.Loading Port:Ning Bo/Shang Hai

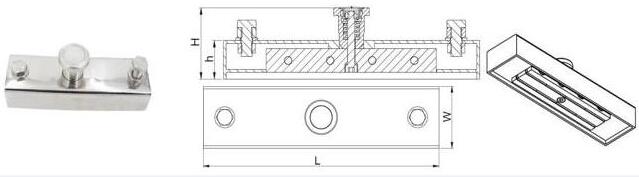

                              Magnetic shuttering system model list(1）

Model	H	h (mm)	L	W	Weight (g)	Breakaway (kg)
	(mm)		(mm)	(mm)
SM450	77	40	180	60	1700	450
SM600	77	40	170	60	1900	600
SM800	82	43	190	95	2700	800
SM1000	82	43	200	95	3100	1000
SM1350	88	60	320	90	5800	1350
SM1800	88	60	320	120	7200	1800
SM2100	88	60	320	120	7600	2100
SM2400	88	60	320	120	8200	2400

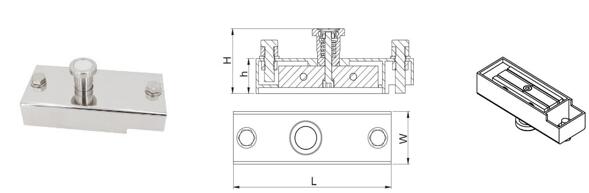

                             Magnetic shuttering system model list(2）


Model	H	h (mm)	L	W	Weight (g)	Breakaway (kg)
	(mm)		(mm)	(mm)
SM450-1	77	40	180	60	1700	450
SM600-1	77	40	170	60	1900	600
SM800-1	82	43	190	95	2700	800
SM1000-1	82	43	200	95	3100	1000
SM1350-1	88	60	320	90	5800	1350
SM1800-1	88	60	320	120	7200	1800
SM2100-1	88	60	320	120	7600	2100
SM2400-1	88	60	320	120	8200	2400
