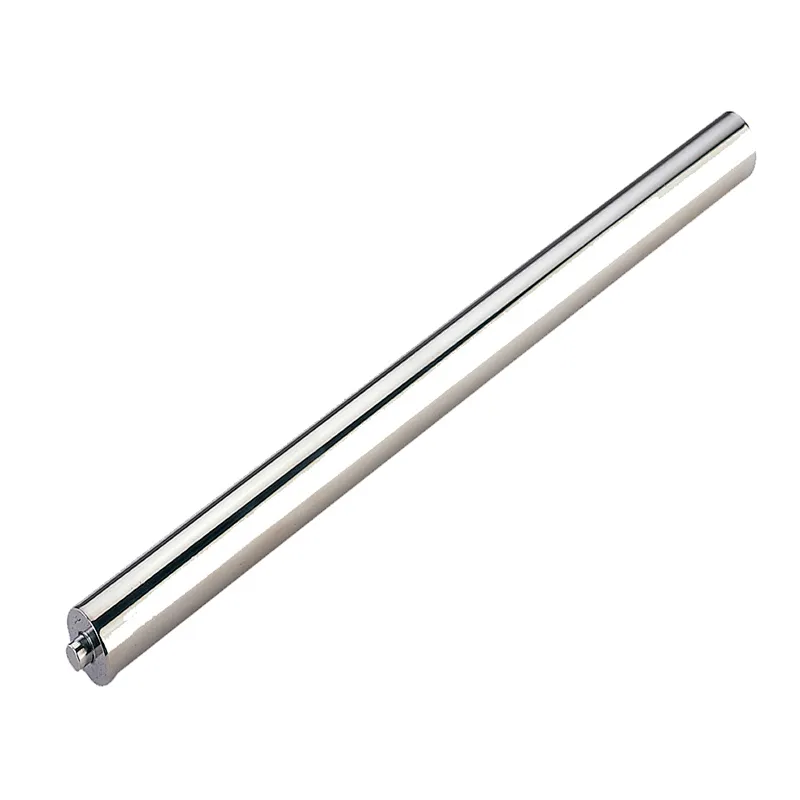

Magnetic rod filters with Flat End consists of stainess steel tube and rare earth magnets
which is widly used in fields of plastic,food,pharmacy,chemical etc. for removing ferrous contaminations
from materials
1. Magnetic rod filters length from 75mm to 2500mm. are available.Standard diameter includes 1"(25MM),10, 16, 19, 20, 22,
2325, 28, 32, 38, 50, 76, 100mm.
2. Housing SS304 & SS316 are available.It is equipped with high density Ceramic 8 magnets and high-energy
Rare-earth magnets to suit your application. You can build or modify your own magnetic separation equipment
with individual magnetic filter bar.
3. Magnetic strength ranges from 2000 to14000gauss.The magnetic strength for Magnetic rod filters with Ceramic
can be more than 2500 Gauss on the surfaces while with Rare-earth magnets which peak value can be more
than 13, 000 Gauss on the surfaces. Max temperature is up to 350 Centigrade degree
4. Fully seal welded with either plain ends or tapped ends are available to suit your application.
5. Waterproof is availabl
6.Material option:NdFeB magnet /ceramic magnet/smco magnet
7.Surface treatment:polishing/sandbalsting
8.Coating: PTFE/ tungsten carbide
9.Custom made service: available
10.Sample: available
11.Production time:30 Days(depend on Quantity)
12.MOQ: 1pcs
13.Packing: Standard packing for air or sea shipment by carton/wood case case
14.Delivery Port:Ningbo /Shanghai
| Part No | 0.25T | 0.5T | 0.7T | 0.9T | 1T | 1.1T | 1.3T |
| Ø10 | √EH | √H | - | - | - | - | - |
| Ø16 | √EH | √EH | √EH | √H | √H | - | - |
| Ø19 | √EH | √EH | √EH | √H | √H | - | - |
| Ø20 | √EH | √EH | √EH | √SH | √H | √H | - |
| Ø22 | √EH | √EH | √EH | √EH | √EH | √H | - |
| Ø23 | √EH | √EH | √EH | √EH | √EH | √H | - |
| Ø25 | √EH | √EH | √EH | √EH | √EH | √EH | √H |
| Ø28 | √EH | √EH | √EH | √EH | √EH | √EH | √H |
| Ø32 | √EH | √EH | √EH | √EH | √EH | √EH | √H |
| Ø38 | √EH | √EH | √EH | √EH | √UH | √H | √H |
| Ø50 | √EH | √EH | √EH | √UH | √H | √H | √H |
| Ø76 | √EH | √EH | √EH | √H | √H | √H | √H |
| Ø100 | √EH | √EH | √H | √H | - | - | √H |
