Magnetic Liquid Trap
Magnetic Liquid Trap

Magnetic Liquid Trap

Model NO.
SWFL

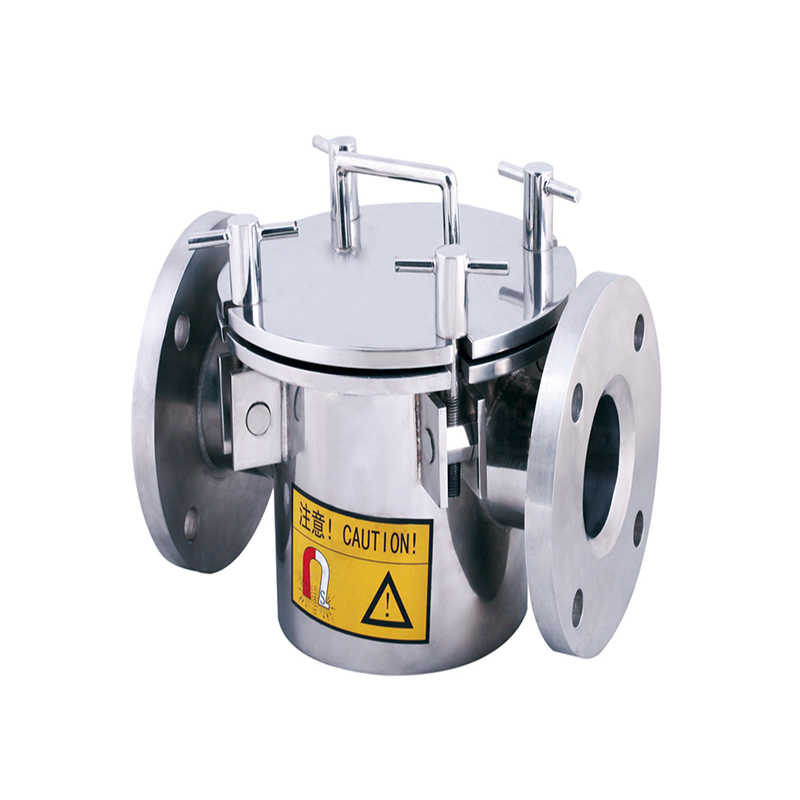

Magnetic liquid trap is also called magnetic trap, magnetic strainer, pipeline magnetic filter
which consists of a stainless steel casing and bar magnets .It is designed to remove ferrous
contaminations from different viscosity level liquid or slurry lines which can be installed vertically,
horizontally or on an angle without affecting its magnetic efficiency.
Magnetic liquid trap is an ideal magnetic system for preserving product purity by removing
small contaminations and providing magnetic protection for processing equipments of liquid lines.
More Products please find on magnetic liquid trap



Feartures:

1. Housing material:304/316
2.Magnet material: Neodymium
3. Max magnetic strength :  13000GS
4. Standard working temperature≤80ºC, and maximum working temperature can be reach to  350ºC
5. Easy installation, separation and cleaning through ferrule, bolt plate, flange or uneven head etc.
6.Custom made service is available
7.Sample : available
8.MOQ:1PC
9.Lead time:35days
10.Packing:standard wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai

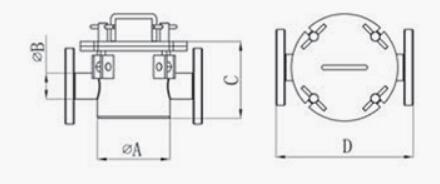

                       Magnetic liquid trap data sheet

MODEL NO
Dimension(mm)
No. of rods
Weight(Kg)
ΦA
ΦB
C
D
SWFL150/25
159
32
167
300
5
12
SWFL150/32
159
38
167
300
5
17
SWFL150/40
159
45
167
300
5
18
SWFL150/50
159
57
167
300
5
21
SWFL150/65
159
76
167
300
5
23
SWFL200/50
200
57
206
350
7
27
SWFL200/65
200
76
206
350
7
29
SWFL200/80
200
89
206
350
7
30
SWFL200/100
200
108
228
350
7
33
SWFL250/80
250
89
250
400
9
40
SWFL250/100
250
108
250
400
9
42
SWFL250/125
250
138
250
400
9
44
SWFL250/150
250
159
300
400
9
50
SWFL300/125
300
138
300
450
9
58
SWFL300/150
300
159
300
450
9
62
SWFL300/200
300
219
346
500
9
72
Magnetic liquid trap is an ideal magnetic system for preserving product purity by removing
small contaminations and providing magnetic protection for processing equipments of liquid lines.

Send Message

* clear input
*

Related Products

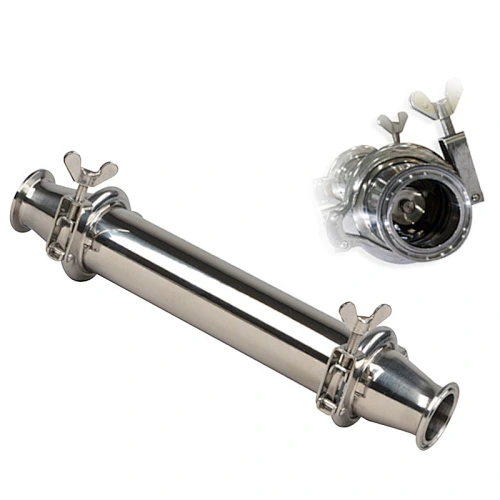

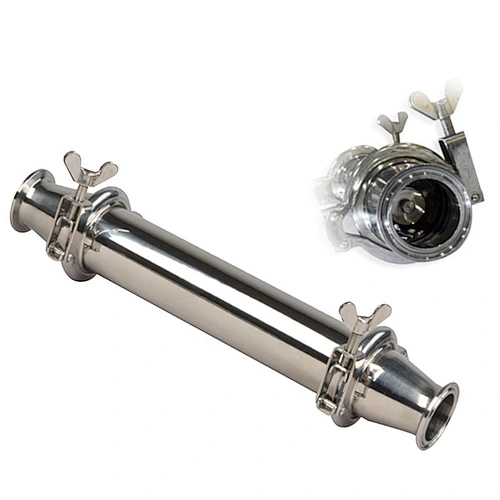

Model NO. SW-E10/15/20
