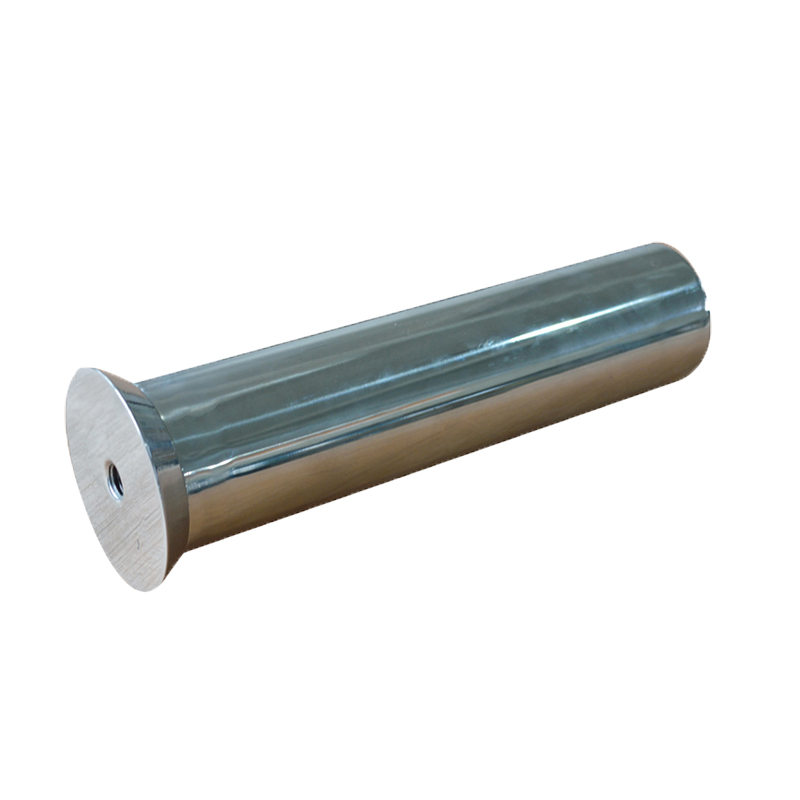

Neodymium magnetic filter rod with Cone
Neodymium magnetic filter rod with Cone

Neodymium magnetic filter rod with Cone

Model NO.
FB-C
Neodymium Magnetic Tube with cone
Neodymium magnetic filter rod with Cone also names magnetic rod with cone, magnetic bar with cone, magnetic filter bar with cone ,which  designed to remove small or medium  ferrous tramp/ metal contamination from dry and liquid raw material.

Features:


1. Magnetic filter rod Length  from 75mm to 2500mm are available. Standard  diameter  includes 10, 16, 19, 20, 22, 2325, 28, 32, 38, 50, 76, 100mm.

2. Housing SS304 & SS316 are available.It is equipped with high density Ceramic 8 magnets and high-energy Rare-earth magnets to suit your application. You can build or modify your own magnetic separation equipment with individual magnetic filter bar.

3. Magnetic strength ranges from 2000 to14000gauss.The magnetic strenth for Magnetic bars  with Ceramic  can be more than 2500 Gauss on the surfaces while with Rare-earth magnets which peak value can be more than 13, 000 Gauss on the surfaces. Max temperature is up to 350 Centigrade degree

4. Fully seal welded with either plain ends or tapped ends are available to suit your application.

5. Waterproof is  available
Neodymium Magnetic filter rod Size list
Part No0.25T0.5T0.7T0.9T1T1.1T1.3T
Ø10√EH√H-----
Ø16√EH√EH√EH√H√H--
Ø19√EH√EH√EH√H√H--
Ø20√EH√EH√EH√SH√H√H-
Ø22√EH√EH√EH√EH√EH√H-
Ø23√EH√EH√EH√EH√EH√H-
Ø25√EH√EH√EH√EH√EH√EH√H
Ø28√EH√EH√EH√EH√EH√EH√H
Ø32√EH√EH√EH√EH√EH√EH√H
Ø38√EH√EH√EH√EH√UH√H√H
Ø50√EH√EH√EH√UH√H√H√H
Ø76√EH√EH√EH√H√H√H√H
Ø100√EH√EH√H√H--√H

Neodymium  magnetic filter rod  with cone are widely used in fields of chemicals, pharmacy, food, plastic, rubber, dyestuff to remove ferrous scraps from the raw material



Send Message

* clear input
*

Related Products

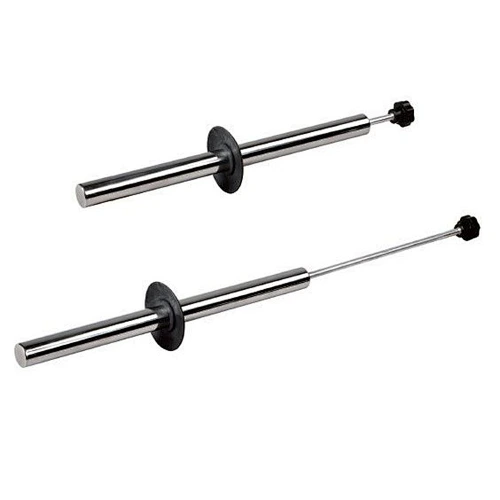

Model NO. magnetic wand
