Magnetic filter bar

Model NO.: FB-P

Product Description
Application Description

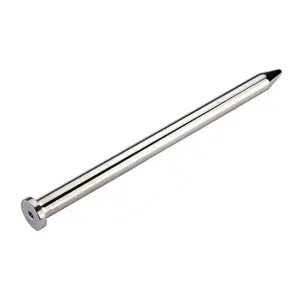

Magnetic filter bar with Pointed End

Features:

1. Magnetic filter bar length from 75mm to 2500mm are available. Standard diameter includes 10, 16, 19, 20, 22, 2325, 28, 32, 38, 50, 76, 100mm.
2. It is equipped with high density Ceramic 8 magnets and high-energy Rare-earth magnets
3. Magnetic strength ranges from 2000 to14000gauss.The magnetic strenth for Magnetic bars with Ceramic
can be more than 2500 Gauss on the surfaces while with Rare-earth magnets which peak value can be more
than 14, 000 Gauss on the surfaces. Max temperature is up to 350 Centigrade degree.
4. Fully seal welded with either plain ends or tapped ends is available
5. Waterproof is available
6.Housing SS304 & SS316 are available.

Standard diameter list for Magnetic filter bar

Part No	0.25T	0.5T	0.7T	0.9T	1T	1.1T	1.3T
Ø10	√EH	√H	-	-	-	-	-
Ø16	√EH	√EH	√EH	√H	√H	-	-
Ø19	√EH	√EH	√EH	√H	√H	-	-
Ø20	√EH	√EH	√EH	√SH	√H	√H	-
Ø22	√EH	√EH	√EH	√EH	√EH	√H	-
Ø23	√EH	√EH	√EH	√EH	√EH	√H	-
Ø25	√EH	√EH	√EH	√EH	√EH	√EH	√H
Ø28	√EH	√EH	√EH	√EH	√EH	√EH	√H
Ø32	√EH	√EH	√EH	√EH	√EH	√EH	√H
Ø38	√EH	√EH	√EH	√EH	√UH	√H	√H
Ø50	√EH	√EH	√EH	√UH	√H	√H	√H
Ø76	√EH	√EH	√EH	√H	√H	√H	√H
Ø100	√EH	√EH	√H	√H	-	-	√H

Neodymium magnetic rod with pointed end is widely used in fields of chemicals, pharmacy, food, plastic, rubber, dyestuff to remove ferrous scraps from the raw material.
