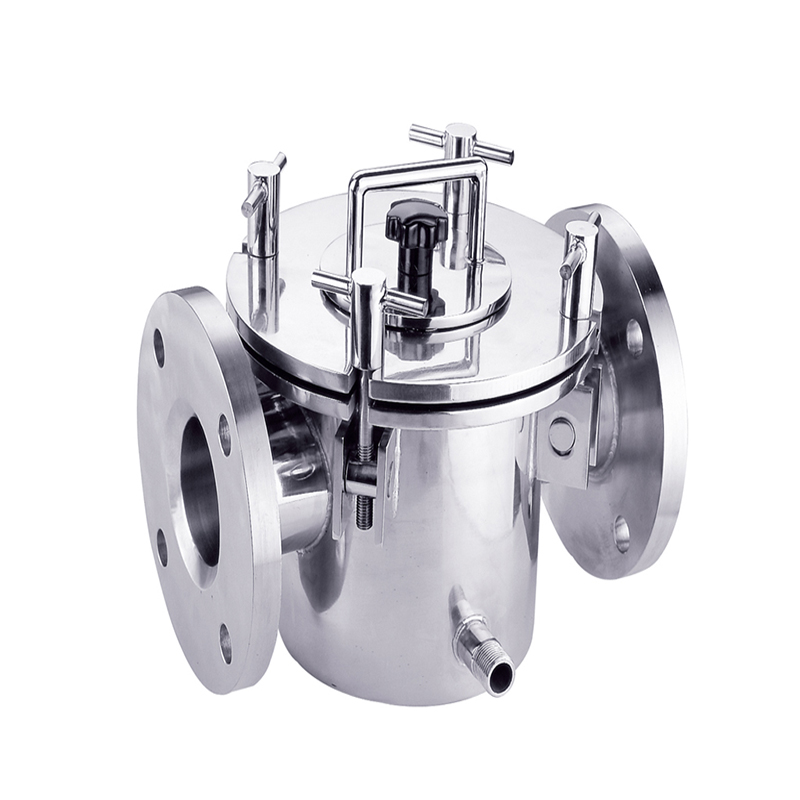

Inline liquid magnetic separator is also named Magnetic liquid trap,magnetic liquid strainer ,magnetic liquid filter
which are designed for removing ferrum contamination form liquid or semi-liquid materials to keep
materials purity and protect the downstream equipments.This magnetic trap has a jacket which is filled with hot
oil or water that can keep warm enough when liquid materials pass through the traps.It is a good solution to remove ferrous
comtaminations from Good Cholcolate,syrups,jams etc.
More products please find on Inline liquid magnetic separator
Feartures:
1. Insulation style
2. The maximum magnetic strength can reach to 13000GS (rated on the inside magnet)
3. Standard working temperature≤80ºC, and maximum working temperature can reach to 350ºC
4. Easy installation, separation and cleaning through ferrule, bolt plate, flange or uneven head etc.
5. 304 or 316L stainless steel are available
6. Ideal designed magnetic configuration ensures maximum magnetic effect without liquid flow impediment.
7. Special design for high pressure or flow rate is available
8.Coating: PTFE/Tungsten carbide
9.Magnet materials : NdFeb/ferrite
10.Custom made :available
11.Sample : available
12.MOQ:1PC
13.Lead time:35days
14.Packing:standard wood case
15.Payment term: T/T
16.Loading Port:Ning Bo/Shang Hai

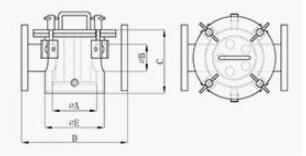

Inline liquid magnetic separator data sheet
MODEL NO | Dimension(mm) | No. of rods | Weight(Kg) | ||||
ΦA | ΦE | ΦB | C | D | |||
SWFLD125/25 | 125 | 168 | 32 | 185 | 300 | 5 | 21 |
SWFLD125/32 | 125 | 168 | 38 | 185 | 300 | 5 | 22 |
SWFLD125/40 | 125 | 168 | 45 | 185 | 300 | 5 | 23 |
SWFLD125/50 | 125 | 168 | 57 | 185 | 300 | 5 | 24 |
SWFLD125/65 | 125 | 168 | 76 | 185 | 300 | 5 | 25 |
SWFLD160/50 | 160 | 219 | 57 | 220 | 360 | 7 | 32.5 |
SWFLD160/65 | 160 | 219 | 76 | 220 | 360 | 7 | 34 |
SWFLD160/80 | 160 | 219 | 89 | 220 | 360 | 7 | 36 |
SWFLD160/100 | 160 | 219 | 108 | 220 | 360 | 7 | 37.5 |
