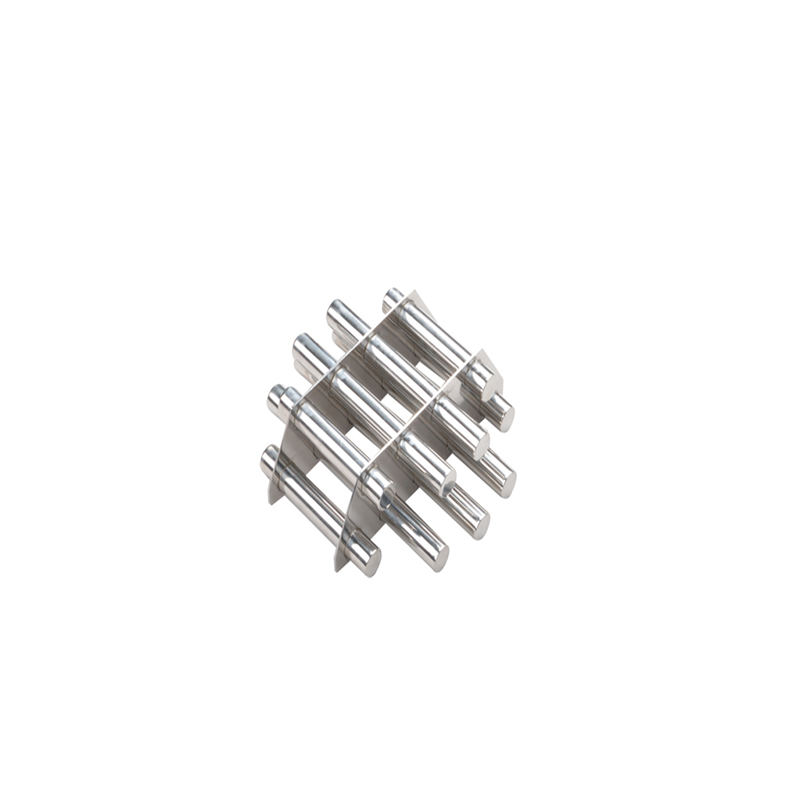

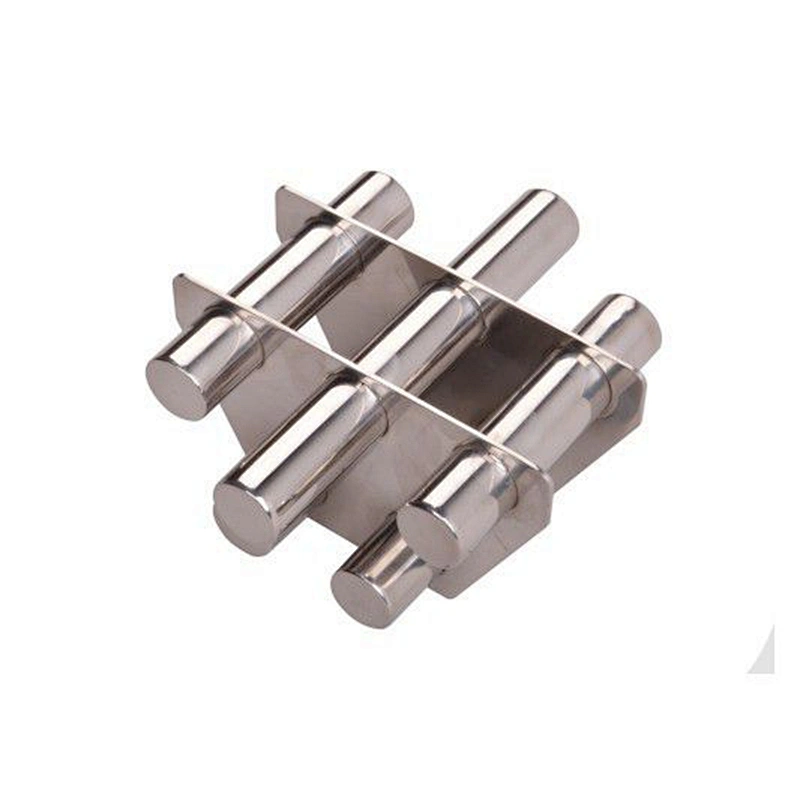

Hopper magnets also name magnetic grid for hopper, magnetic grate for hopper, magnetic grill for hopper
which consist of stainless steel and permanent magnets .Hopper magnets are installed inside a machine hopper
which are widely applied in fields of palstic processing ,food,chemical,pharmacy,rubber etc .It is fitted with
neodymium magnet or ceramic magnet to attach ferrous contamination from flowing material .Round hopper
magnets are mainly installed inside the plastic injection moulding machine
which consist of stainless steel and permanent magnets .Hopper magnets are installed inside a machine hopper
which are widely applied in fields of palstic processing ,food,chemical,pharmacy,rubber etc .It is fitted with
neodymium magnet or ceramic magnet to attach ferrous contamination from flowing material .Round hopper
magnets are mainly installed inside the plastic injection moulding machine
2.Surface treatment: sand blasting /polishing
3.Magnetic intensity :1500-6000GS
4.Max working temparature: from 80℃ to 350℃
5.Magnet materials : Samarium-Cobalt (rare-earth), Ceramic , Neodymium-Iron-Boron(rare-earth)
6.Food grade welding: availble
7.Custom made :available.your logo/brand/pattern can be printed on
8.MOQ:1PC
9.Lead time:30days
10.Packing:standard brown carton/wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai
| MODEL NO | A | A1 | a | B | b | D | d |
| RD-1 | 131.5 | 68 | 43.5 | 76 | 45 | 145 | 5-Φ22 |
| RD-2 | 175 | 110 | 43.5 | 76 | 45 | 200 | 7-Φ22 |
| RD-3 | 218.5 | 155 | 43.5 | 76 | 45 | 245 | 9-Φ22 |
| RD-4 | 262 | 220 | 45 | 76 | 45 | 280 | 11-Φ22 |
