Ferrite Shallow Pot Magnets SF1 Series
Ferrite Shallow Pot Magnets SF1 Series

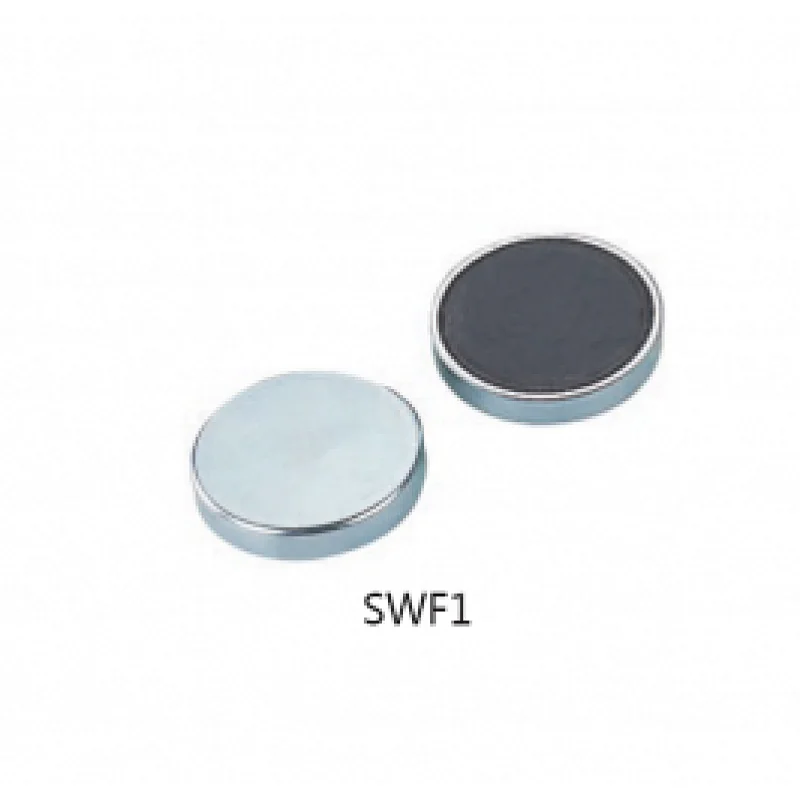

Ferrite Shallow Pot Magnets

Model NO.
SWF1




Ferrite Shallow Pot Magnets also names ferrite pot magnet,ceramic pot magnet which consists of a steel case and ferrite(ceramic)magnet
They are attatched on the smooth ferromagnetic surface to be used for mounting, lifting, holding, fixing and transferring objects
 in the field of construction, engineering, automotive, etc or in the place of office, family, warehouse,metalworking plants , mechanical
engineering plants etc.


Feature

1.Standard Coating: Zink     other  Nickel ,Cr,Painting also available.
2.Magnetic force: 4N-900N
3.Magnet materials : Ceramic Y30BH
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:NingBo/ShangHai


Ferrite Shallow Pot Magnets Sketch

MODEL NO.Dimensions(mm)Weight(g/pc)Magnetic Force(N)
D  H
SWF1-10104.524
SWF1-13134.5310
SWF1-16164.54.518
SWF1-202061030
SWF1-252571940
SWF1-323273080
SWF1-3636842100
SWF1-4040855125
SWF1-4747980180
SWF1-505010100220
SWF1-575710.5140280
SWF1-636314230350
SWF1-808018485600
SWF1-10010022900900
