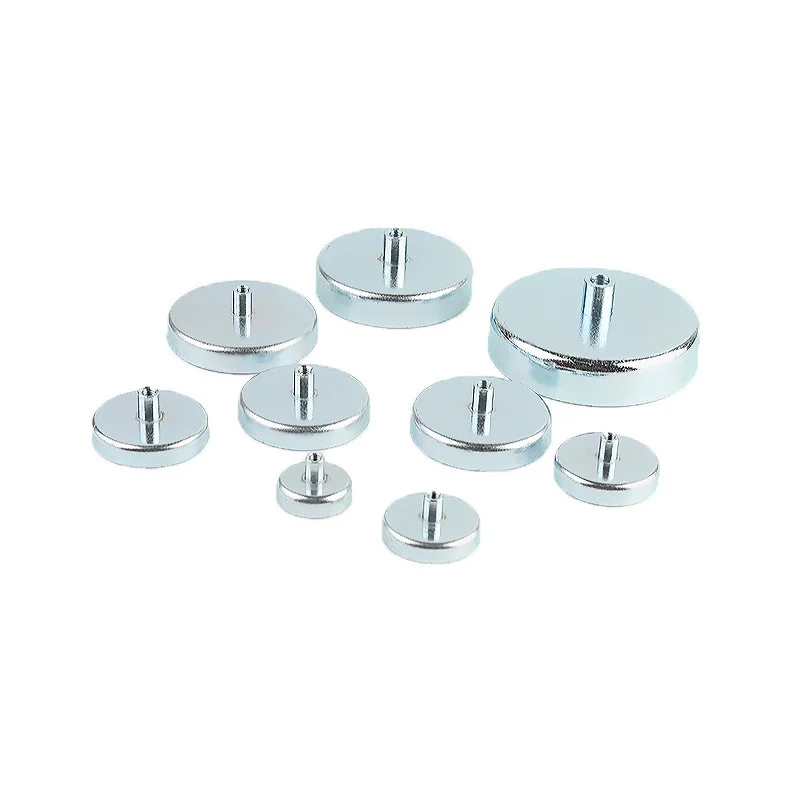

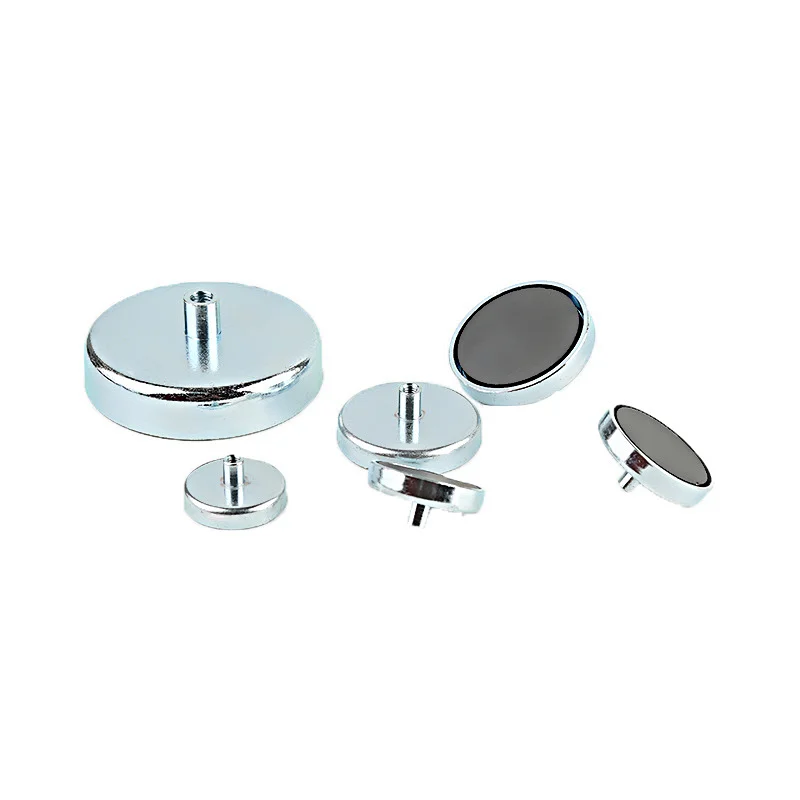

Ferrite Shallow Pot Magnet with Thread Hole

Ferrite Shallow Pot Magnet with Thread Hole

Model NO.: SWF2

Product Description
Application Description

Ferrite shallow pot magnets with thread hole also names Ceramic Magnetic Pot with thread hole, ceramic
round base magnet with thread hole,ferrite mounting pot magnet which consist of a steel casing and ceramic
magnet. .They feature as low-cost and high efficiency which have a high risistance to corrosion and max working
temp can be up to 250℃. that is popular in warehouse and rugged manufacturing environment
Ferrite shallow pot magnets are compatible with a external thread hole that allowing bolt and bar to
be matched frimly with each other, which can be ordered in different colors to meet different design taste..

1.Coating: Zn,Ni,Cr,Painting
2.Holding force:4-1300N
3.Raw materials : ceramic magnets
4.Custom made service :available
5.Sample : available
6.MOQ:100PC
7.Lead Time: about 6 weeks (according to the quantity);
8.Packing: Packed by carton or wood case for standard sea shipment or
standard shielding packing for air shipment;
9. Delivery Port: Ningbo or Shanghai

**Ferrite Shallow Pot Magnet Data Sheet**
MODEL NO	Dimensions(mm)					Weight(g)	Force(N)
MODEL NO	D	H	d	L	M	Weight(g)	Force(N)
SWF2-10	10	4.5	6	11.5	3	3	4
SWF2-13	13	4.5	6	11.5	3	5	10
SWF2-16	16	4.5	6	11.5	3	6	18
SWF2-20	20	6	6	13	3	11	30
SWF2-25	25	7	8	15	4	22	40
SWF2-32	32	7	8	15	4	32	80
SWF2-36	36	7.7	8	16	4	45	100
SWF2-40	40	8	8	16.5	4	60	125
SWF2-47	47	9	8	17	4	90	180
SWF2-50	50	10	8	18.5	4	110	220
SWF2-57	57	10.5	8	18.5	4	145	280
SWF2-63	63	14	15	30	8	240	350
SWF2-80	80	18	20	34	10	520	600
SWF2-100	100	22	22	43	12	940	900
SWF2-125	125	26	25	50	14	1720	1300

Ferrite Pot Magnet also names Ceramic Magnetic Pot, which is used for mounting, lifting, holding, fixing and transferring objects in the field of construction, engineering, automotive, etc or in the place of office, family, warehouse,metalworking plants , mechanical engineering plants etc.
