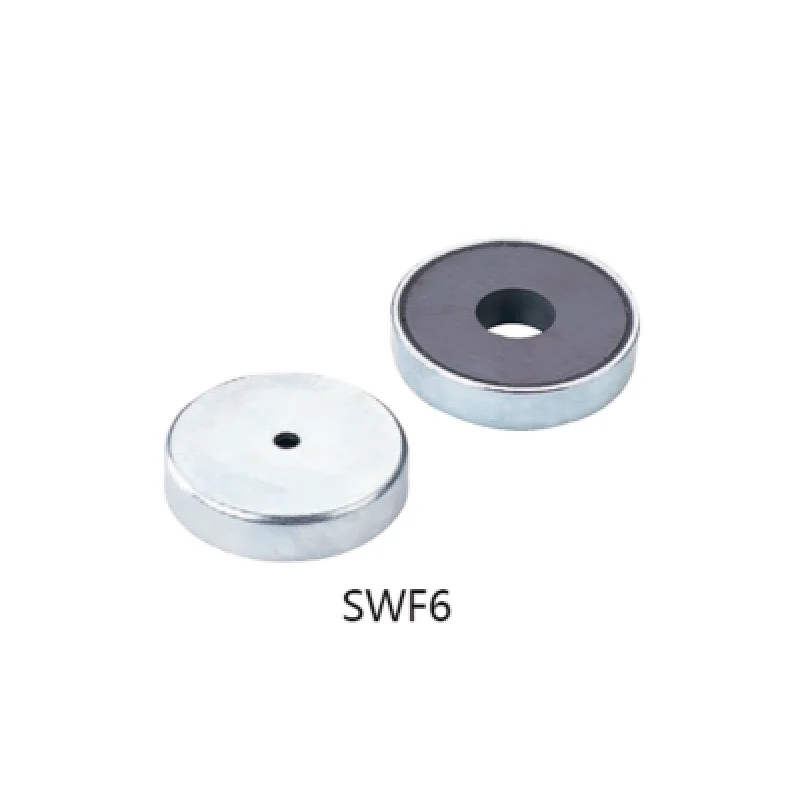

Ferrite Mounting Pot Magnets are also named ceramic Mounting magnets ,Nferrite pot magnet with mounting
hole cup which consists of a steel case and cemaic magnets.They feature a magnet with a hole through that
encased in a steel cup which prevent the magnet from breaking and enhance the magnetic force .Ferrite Mounting
Pot Magnets are used for mounting, holding,fixing and transferring objects in the field of construction,engineering,
automotive,etc or in the place of office,family, warehouse,metalworking plants , mechanical engineering plants etc.
Features
1.Coating option: Zn,Ni,Cr,Painting
2.Holding force:6-510N
3.Magnet materials : ceramic
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case for sea shipment
or air shielding shipment
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai
Ferrite Mounting Pot Magnets data sheet
| MODEL NO | Dimensions(mm) | Weight(g) | Force(N) | |||
| D | H | d1 | d2 | |||
| SWF6-13 | 13 | 4.5 | 3.3 | 5 | 3 | 6 |
| SWF6-16 | 16 | 4.5 | 3.3 | 5 | 4 | 14 |
| SWF6-20 | 20 | 6 | 3.3 | 5 | 8 | 26 |
| SWF6-25 | 25 | 7 | 4 | 10 | 15 | 32 |
| SWF6-32 | 32 | 7 | 4 | 10 | 25 | 65 |
| SWF6-36 | 36 | 7.7 | 4 | 10 | 40 | 80 |
| SWF6-40 | 40 | 8 | 5.5 | 12 | 50 | 90 |
| SWF6-47 | 47 | 9 | 5.5 | 10 | 80 | 140 |
| SWF6-50 | 50 | 10 | 5.5 | 18 | 95 | 180 |
| SWF6-57 | 57 | 10.5 | 6.5 | 20 | 125 | 240 |
| SWF6-63 | 63 | 14 | 6.5 | 20 | 200 | 300 |
| SWF6-80 | 80 | 18 | 10.5 | 32 | 450 | 510 |
