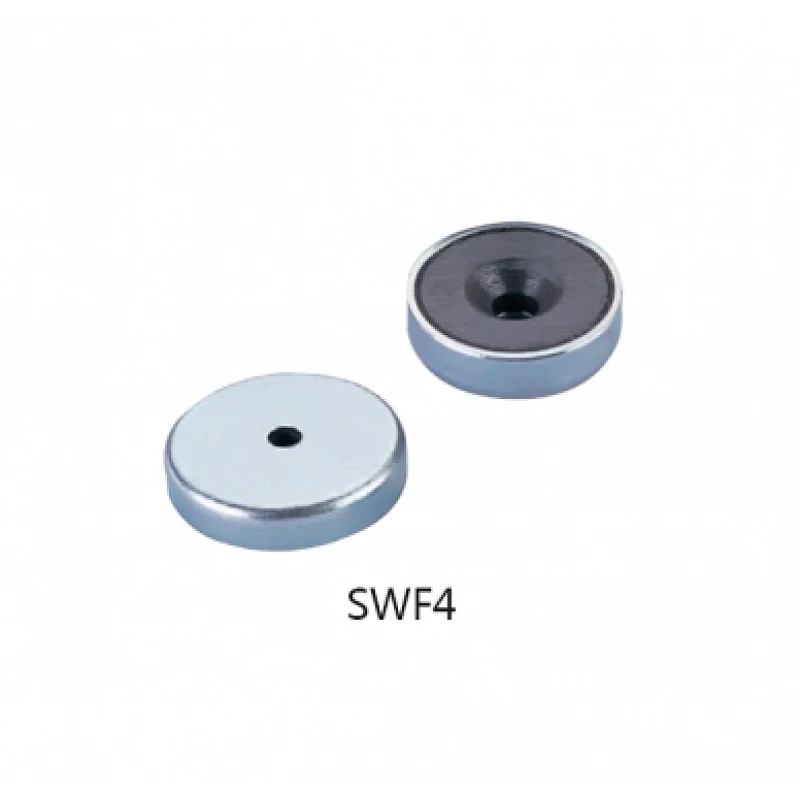

Ceramic Cup Magnets with Countersunk Hole also names ceramic countersunk pot magnet,Ceramic Countersunk
cup magnet , ceramic Countersunk round base magnet which consists of a steel casing and rare earth magnet.
There is a hole through which allows a screw head to be inserted into the countersunk mounting and then screw
the magnet to any material of your choice which are ideal for mechanical manufacturing and construction to
complete the fixing or installation.
Features
1.Coating option: Zn,Ni,Cr,Painting
2.Holding force:14-90N
3.Magnet materials : ceramic
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai
Ceramic Cup Magnets with Countersunk Hole Data Sheet
| MODEL NO | Dimensions(mm) | Weight(g) | Force(N) | |||
| D | H | d1 | d2 | |||
| SWF4-16 | 16 | 4.5 | 3.5 | 6.5 | 4 | 14 |
| SWF4-20 | 20 | 6 | 4.2 | 8.6 | 9 | 27 |
| SWF4-25 | 25 | 7 | 5.5 | 10.4 | 16 | 36 |
| SWF4-32 | 32 | 7 | 5.5 | 10.4 | 27 | 72 |
| SWF4-40 | 40 | 8 | 5.5 | 10.4 | 53 | 90 |
