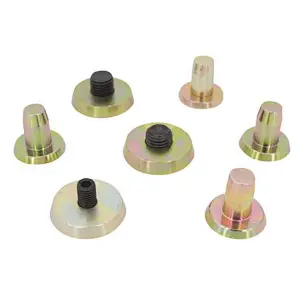

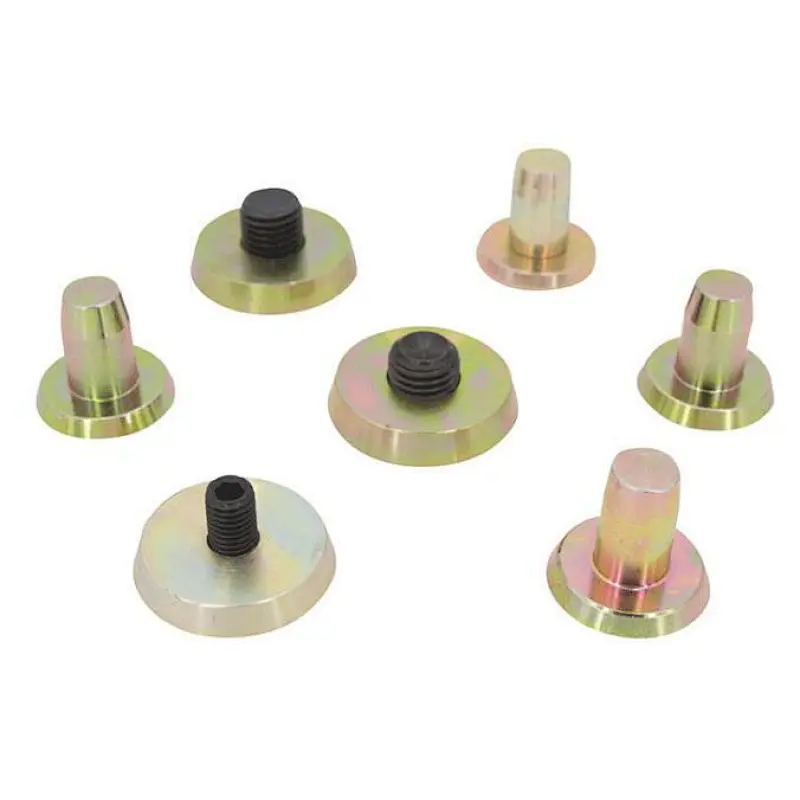

Concrete magnets

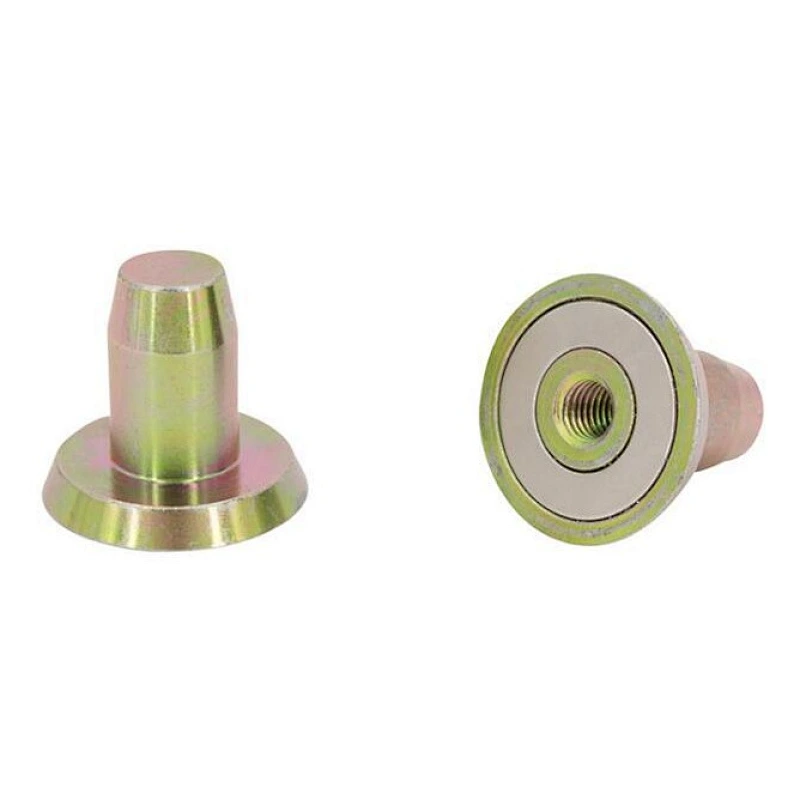

Precast concrete insert magnet is one kind of   concrete magnets, aslo named concrete fixing magnet,  formwork fixing magnets which consists of strong NdFeB magnets， a screw  and a steel casing.The insert magnet with
standard external thread can fix different type of screws to hold the pipeline and trough when the
PC components production is poured by concrete .
Precast concrete insert magnet is used in precast concrete framework construction to allow an
easy and convinent fixing operation
More Products please find on concrete fixing magnet


Features:

1. Coating:zn
2. Material: strong NdFeB magnets
3. Adhesive force:30KG
4.Production time:40 Days
5.MOQ: 5pc
6.Packing: standard brown carton/wood case for air or sea shipment
7.Payment term: T/T
8.Loading Port:Ning Bo/Shang Hai








concrete magnets model list

Model	D	d (mm)	d1 (mm)	d2 (mm)	H	h (mm)	h1 (mm)	M	Weight (g)	Breakaway (Kg)
	(mm)				(mm)
LNQ40-18	40	18.1	16	35	36	6	26	M10	100	30
LNQ40-19	40	19.3	16	35	36	6	26	M10	105	30
