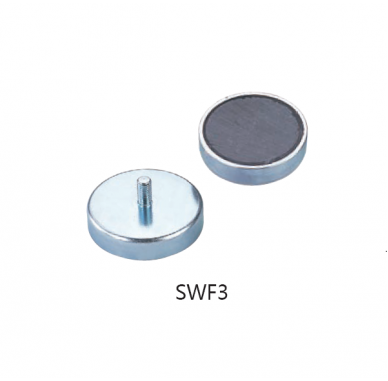

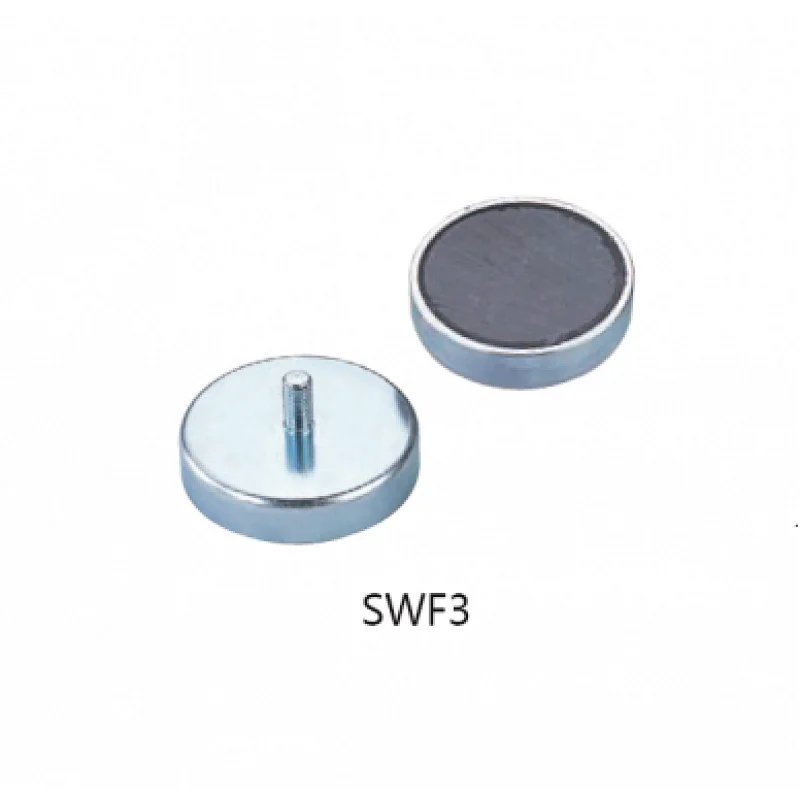

Ceramic Pot Magnets with Bolt also names ferrite pot magnet with thread stud,ceramic cup magnet with external
thread which consists of a steel case and ferrite(ceramic)magnet .
Ceramic Pot Magnets are good for attaching components with female thread. A male threaded stand on
the no-magnetic face of pot magnets that can be fixed on flat surface by female thread, then attrach the
ferromagnetic object at the magnetic side.They are widely used for mounting, lifting, holding, fixing and
transferring objects in the field of construction, engineering, automotive, etc or in the place of office, family,
warehouse,metalworking plants , mechanical
engineering plants etc.
Features
1.Standard Coating: Zink / Nickel /Cr/Painting
2.Magnetic force: 4N-350N
3.Magnet materials : Ceramic Y30BH
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:NingBo/ShangHai
Ceramic Pot Magnets with Bolt data sheet
| MODEL NO | Dimensions(mm) | Weight(g) | Force(N) | |||
| D | H | M | L | |||
| SWF3-10 | 10 | 4.5 | 3 | 11.5 | 3 | 4 |
| SWF3-13 | 13 | 4.5 | 3 | 11.5 | 5 | 10 |
| SWF3-16 | 16 | 4.5 | 3 | 11.5 | 5 | 18 |
| SWF3-20 | 20 | 6 | 3 | 13 | 11 | 30 |
| SWF3-25 | 25 | 7 | 4 | 15 | 22 | 40 |
| SWF3-32 | 32 | 7 | 4 | 15 | 32 | 80 |
| SWF3-36 | 36 | 7.7 | 4 | 16 | 42 | 100 |
| SWF3-40 | 40 | 8 | 5 | 16 | 57 | 125 |
| SWF3-47 | 47 | 9 | 6 | 17 | 85 | 180 |
| SWF3-50 | 50 | 10 | 6 | 18.5 | 105 | 220 |
| SWF3-57 | 57 | 10.5 | 6 | 18.5 | 142 | 280 |
| SWF3-63 | 63 | 14 | 8 | 29 | 219 | 350 |
