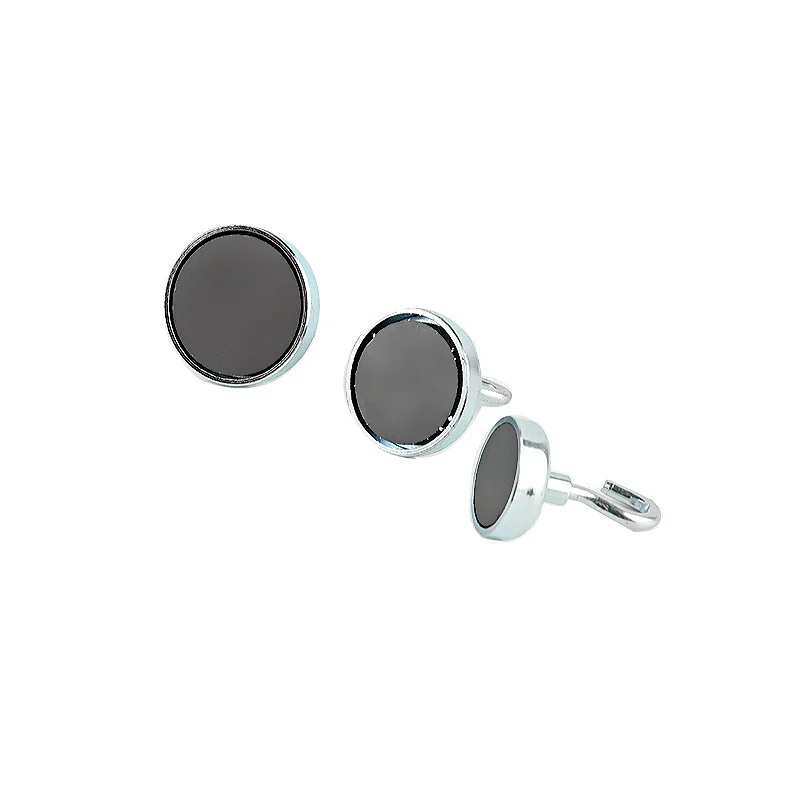

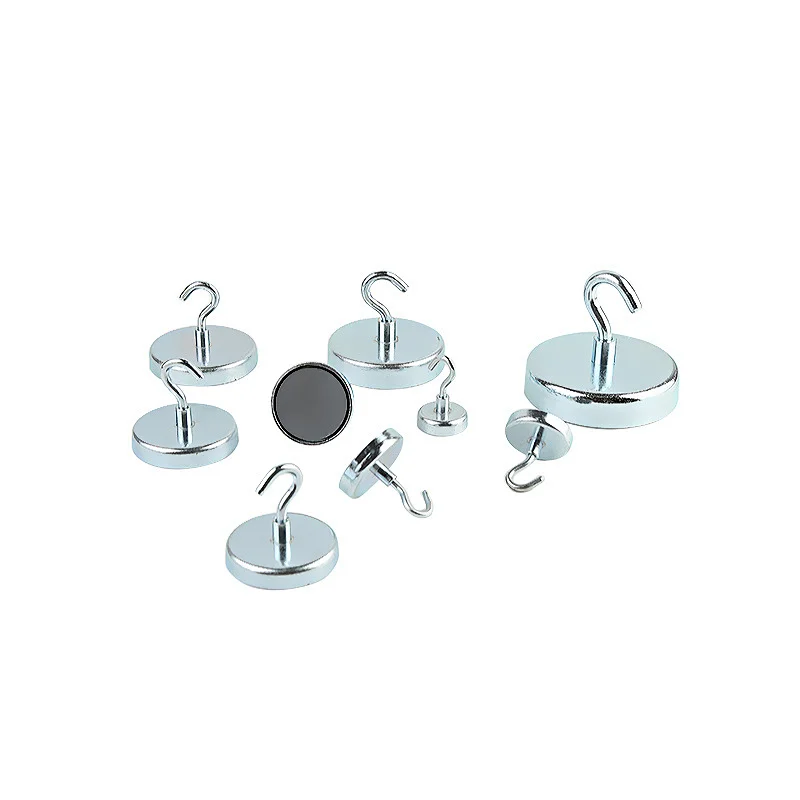

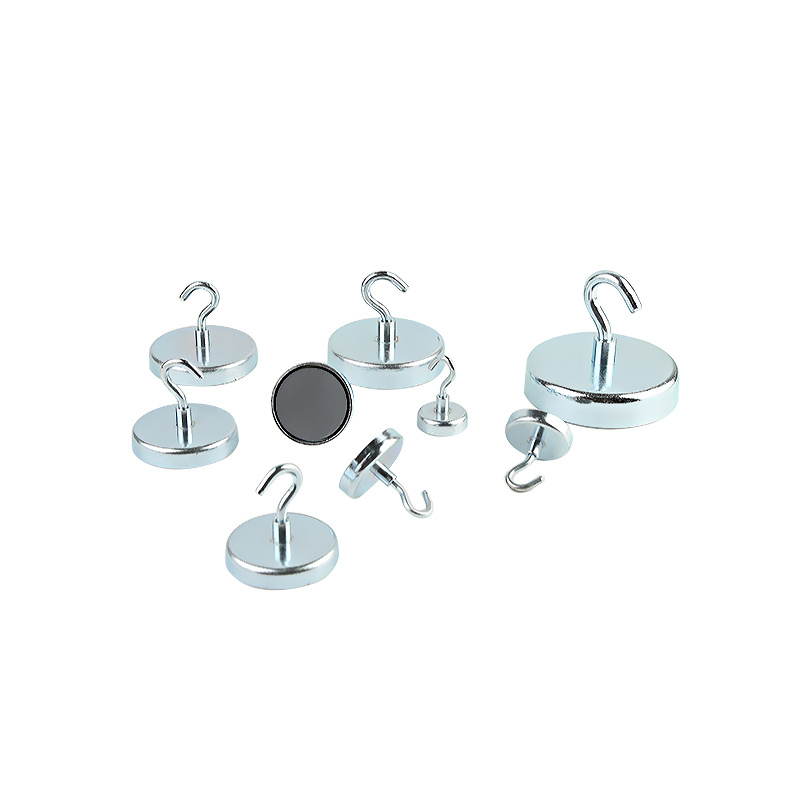

Ceramic magnetic hooks also names ceramic hook magnet,ceiling magnet, ferrite magnetic hook
and ferrite magnet with hook which are used for lifting, holding, fixing objects in the field of construction,
engineering, automotive advertising etc .They feature as low-cost and high efficiency which have a high
risistance to corrosion and max working temp can be up to 250℃. that is popular in warehouse and
rugged manufacturing environment Ceramic magnetic hooks are compatible with a screw-in hook and
can be ordered in different colors to meet different design taste.
1.Coating: Zn,Ni,Cr,Painting
2.Holding force:4-600N
3.Raw materials : ceramic/ferrite magnets
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead Time: about 4-5 weeks
8.Packing: Packed by carton or wood case for standard sea shipment or
standard shielding packing for air shipment
9. Delivery Port: Ningbo or Shanghai
| MODEL NO | Dimensions(mm) | Weight(g) | Force(N) | |
| D | H | |||
| SWF8-10 | 10 | 3 | 4 | 4 |
| SWF8-13 | 13 | 3 | 6 | 10 |
| SWF8-16 | 16 | 3 | 8 | 18 |
| SWF8-20 | 20 | 3 | 12 | 30 |
| SWF8-25 | 25 | 4 | 22 | 40 |
| SWF8-32 | 32 | 4 | 34 | 80 |
| SWF8-36 | 36 | 4 | 46 | 100 |
| SWF8-40 | 40 | 4 | 60 | 125 |
| SWF8-47 | 47 | 4 | 90 | 180 |
| SWF8-50 | 50 | 4 | 110 | 220 |
| SWF8-57 | 57 | 4 | 145 | 280 |
| SWF8-63 | 63 | 4 | 220 | 350 |
| SWF8-80 | 80 | 6 | 530 | 600 |
