Alnico Deep Pot Magnets also names Alnico deep magnet, Alnico mounting pot magnet which made
from aluminum,cobalt,nickel with iron and other metals.They have a good performance in high temparature
operation and corrosion resistance which are widely used in fields of clamping and tooling.The recommended
max working temparature for Alnico Deep Pot Magnet can be up to 220℃ (potentially can be up to 400℃）
which allows alnico magnets keep a stable magnetic force even they heat up .
More Products please find on Alnico Deep Pot Magnets
Features
1.Coating option: Zn,Ni,Painting
2.Holding force:1.7-142N
3.Magnet materials : alnico
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:40days
8.Packing:standard brown carton/wood case for sea shipment
or air shielding shipment
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

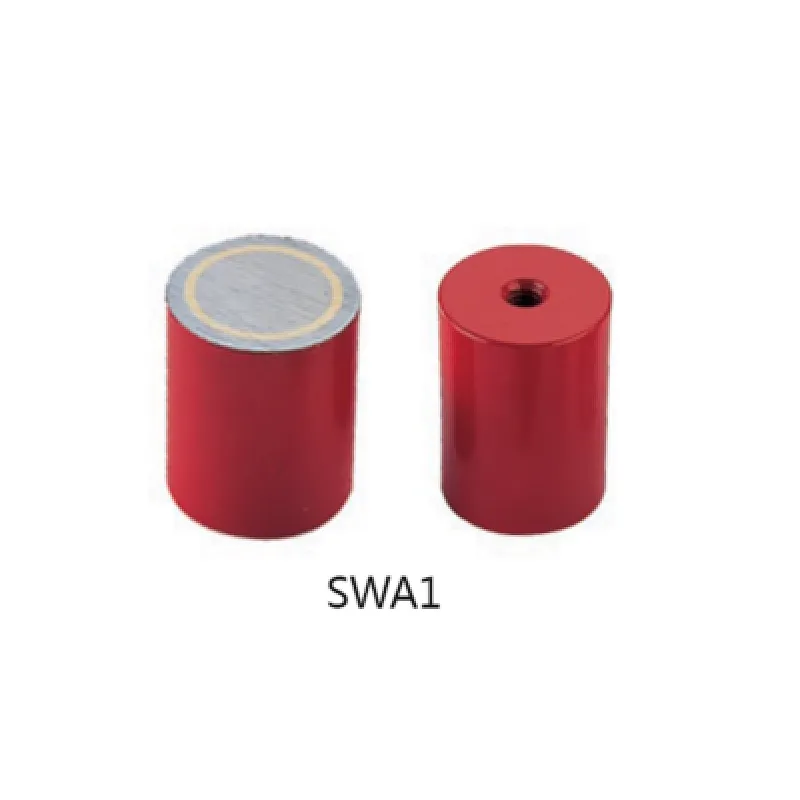

Alnico Deep Pot Magnet data sheet
| MODEL NO | Dimensions(mm) | Weight(g) | Force(N) | ||
| D | H | M | |||
| SWA1-6 | 6 | 20 | 3 x 7 | 4 | 1.7 |
| SWA1-8 | 8 | 20 | 3 x 7 | 7 | 4 |
| SWA1-10 | 10 | 20 | 4 x 9 | 12 | 8 |
| SWA1-13 | 13 | 20 | 4 x 7.5 | 20 | 12 |
| SWA1-16 | 16 | 20 | 4 x 6 | 30 | 19 |
| SWA1-20 | 20 | 25 | 6 x 9 | 60 | 49 |
| SWA1-25 | 25 | 35 | 6 x 10 | 128 | 112 |
| SWA1-27 | 27 | 25 | 6 x 5 | 107 | 184 |
| SWA1-32 | 32 | 40 | 8 x 10.5 | 240 | 196 |
| SWA1-35 | 35 | 30 | 6 x 7.5 | 215 | 142 |
