1.304 or 316L stainless steel is available for housing 2.Standard magnetic grates are assembled with stainless steel frame and magnetic bars with a length of 25 mm diameter. 3.Standard working temperature≤80ºC, and maximum working temperature can reach 350ºC as required. 4. Max magnetic intensity for Easy-cleaning (E style) is about 9,000-10,000GS 4.Food grade welding and polishing are available.
MODEL NO
Dimension(mm)
Bars
Weight(Kg)
A
B
H
SWMG10/10S
100
100
40
2
1
SWMG15/15S
150
150
40
3
2.2
SWMG20/20S
200
200
40
4
3.7
SWMG25/25S
250
250
40
5
5.5
SWMG30/30S
300
300
40
6
8
SWMG35/35S
350
350
40
7
10
SWMG40/40S
400
400
40
8
13.5
SWMG45/45S
450
450
40
9
17
SWMG50/50S
500
500
40
10
20.5
MODEL NO
Dia
H
Bars
Weight(Kg)
SWMG-R100
100
40
2
0.9
SWMG-R150
150
40
3
1.5
SWMG-R200
200
40
4
2.5
SWMG-R250
250
40
5
3.7
SWMG-R300
300
40
6
5.5
SWMG-R350
350
40
7
7.5
SWMG-R400
400
40
8
10
SWMG-R450
450
40
9
12.3
SWMG-R500
500
40
10
15.5

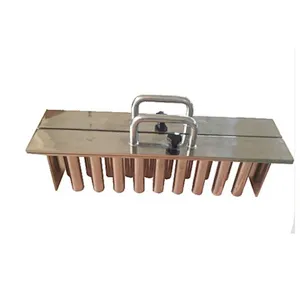

Easy-cleaning Neodymium Grid Magnet is applied for removing ferrum contamination from store holders, drawers and hoppers.
which widely used in fields of chemicals, pharmacy, food, plastic, rubber, dyestuff to remove ferrous scraps from the raw material
Easy-cleaning Neodymium Grid Magnet is made from stainless steel and rare earth magnets which is an ideal magnetic system to remove ferrous contamination from materials.

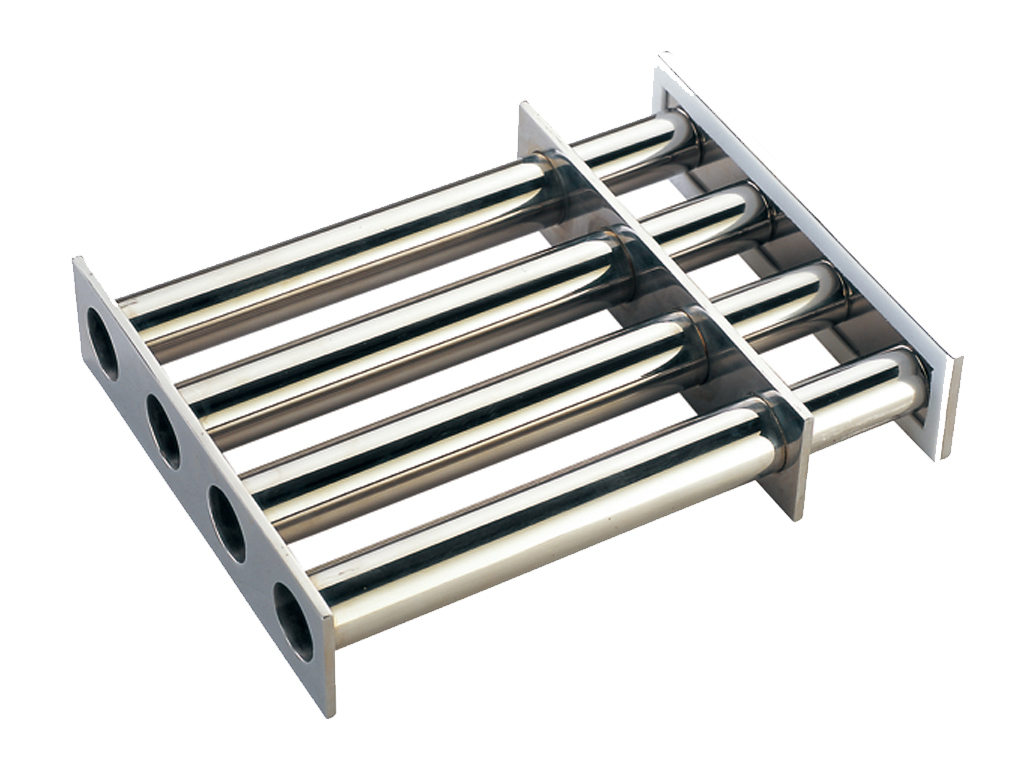

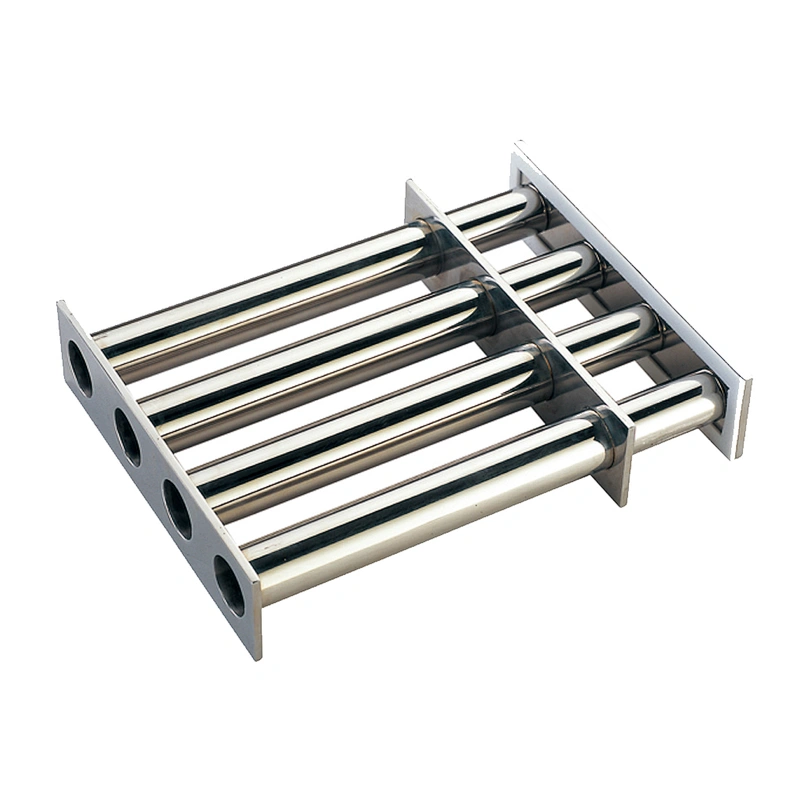

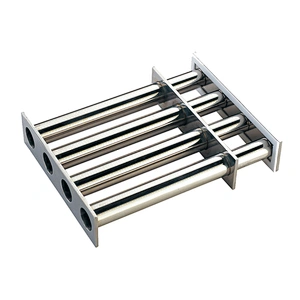

Easy-cleaning Neodymium Grid Magnet
SWMG-E
0.00~0.00
Easy-cleaning Neodymium Grid Magnet is made from stainless steel and rare earth magnets which is an ideal magnetic system to remove ferrous contamination from materials.
